3.5 Inch Triple Head Regress Gimbal Trimless LED Downlight | 3.800Lm | 120/277V | CCT Selectable | Ellipse Series | Goodlite G-23363/373

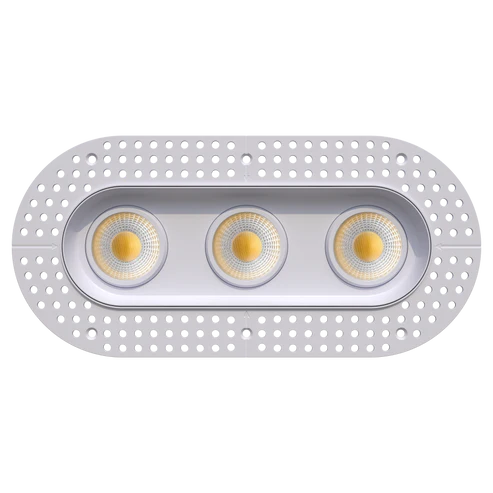

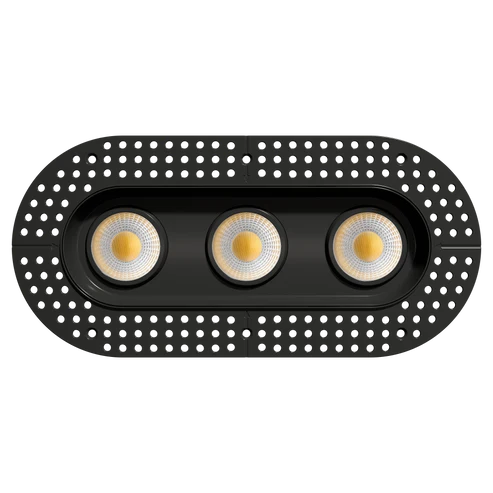

Achieve an ultra-clean, high-end, and completely seamless ceiling aesthetic with the Ellipse 3.5-Inch Oval Triple Head Trimless Regress Gimbal Series. Available in architectural white (Product Code: G-23363) and deep matte black (Product Code: G-23373), this premium triple-light linear downlight drops the traditional overlapping flange in favor of a structural mud-in mounting system. Once finished directly into the drywall, the plaster frame completely disappears, leaving only a minimalist, high-contrast linear oval aperture integrated into the ceiling plane.

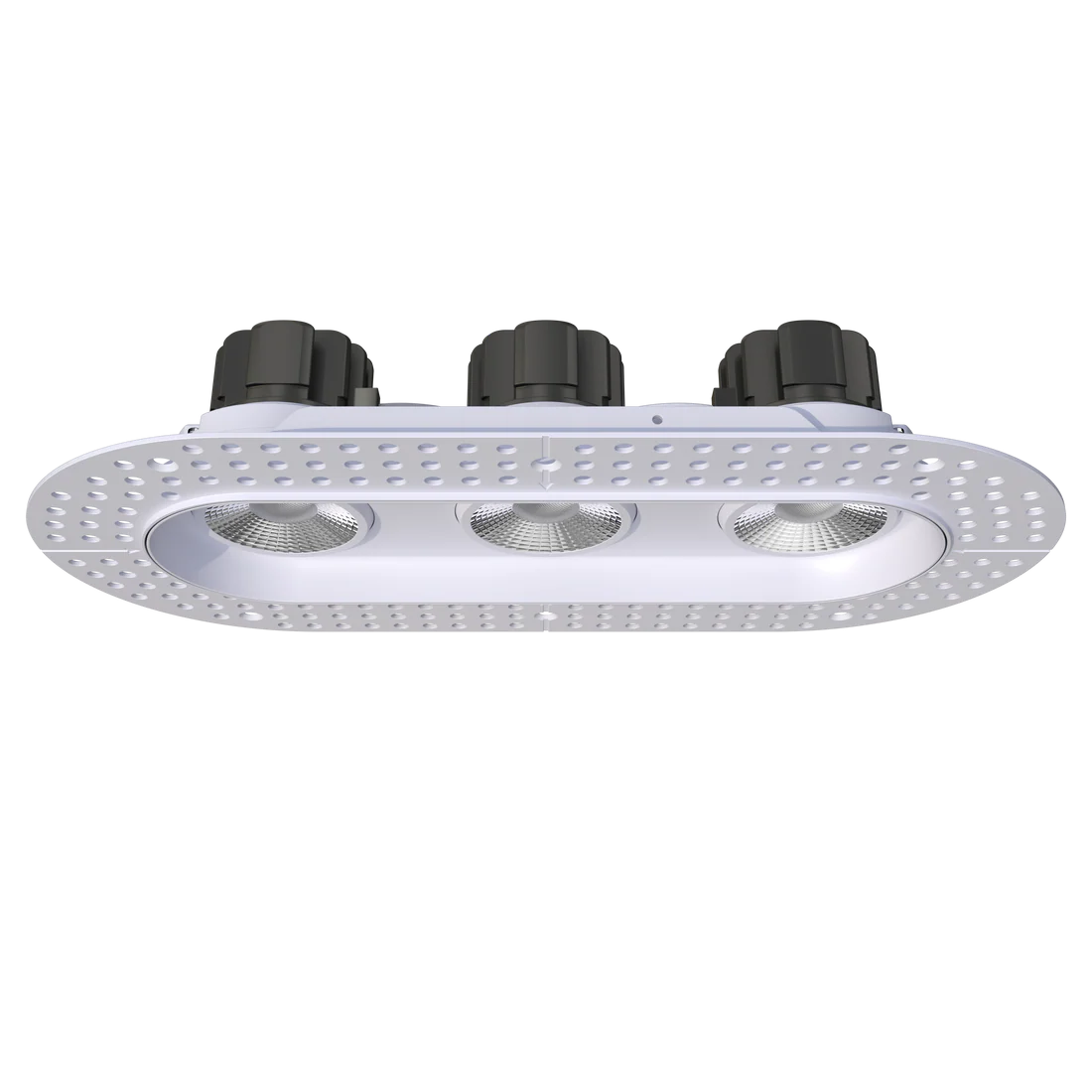

Equipped with three independently adjustable gimbal heads, this fixture offers a flexible 30° directional tilt angle and a wide 60° default beam spread per head, allowing you to spotlight multiple design elements, wash fine textures, or paint a multi-directional accent pattern across walls. The regress design recesses the clear triple diffusers deep back into the ceiling layout, stopping high-angle glare and ensuring high-end visual comfort. Integrated with advanced 5-CCT Selectable technology, this 40W powerhouse delivers a combined 3800 lumens (1265 lumens per head) with a color-accurate CRI > 90 across five selectable temperatures ranging from warm 2700K to clean 5000K daylight.

Engineered for High-End Construction & Integration:

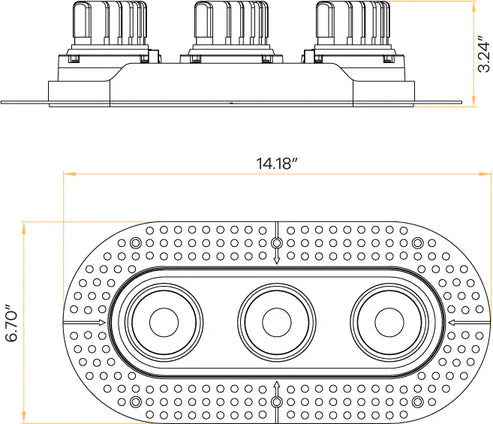

Operating on a multi-volt 120-277V line at a powerful 1000mA, the Ellipse trimless triple-head downlight supports multi-protocol architectural control through standard Triac or commercial 0-10V dimming paths. The structural mesh frame requires a 3.86" x 11.34" oval ceiling cutout, while its elongated 6.70" x 14.18" outside mud-in flange dimensions provide mudding compound with plenty of surface contact area to prevent plaster cracking over time with a structural height of 3.25".

Key Features:

• Flawless Trimless Integration: Heavy-duty mud-in flange installs completely flush with the drywall surface, eliminating visible trim lips for a continuous, high-end look.

• Triple-Head Independent Adjustability: Three independently targetable spot heads with smooth 30° tilt angles let you tailor your accent beams to suit changing retail layouts or artwork galleries.

• Tough Code Compliance: IC Rated for safe, uninsulated contact with thermal insulation materials, engineered with an FT6 Plenum-rated wire jacket, and fully Wet Location sealed for luxury showers, bathrooms, or high-moisture commercial environments.

Technical Specification
