3.5 Inch Double Head Regress Gimbal Trimmed LED Downlight | 2.700Lm | 120/277V | CCT Selectable | Ellipse Series | Goodlite G-23342/352

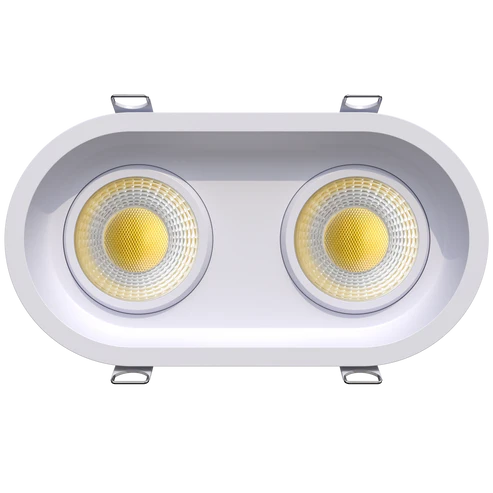

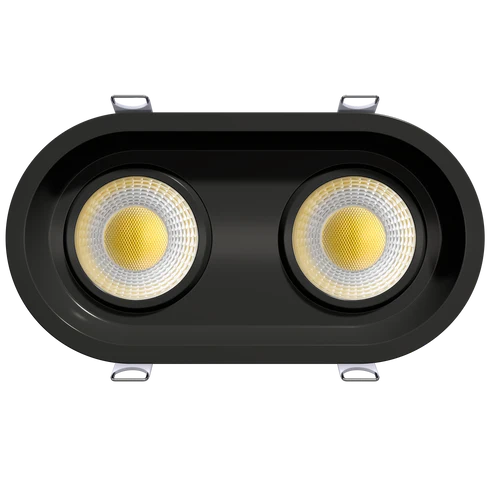

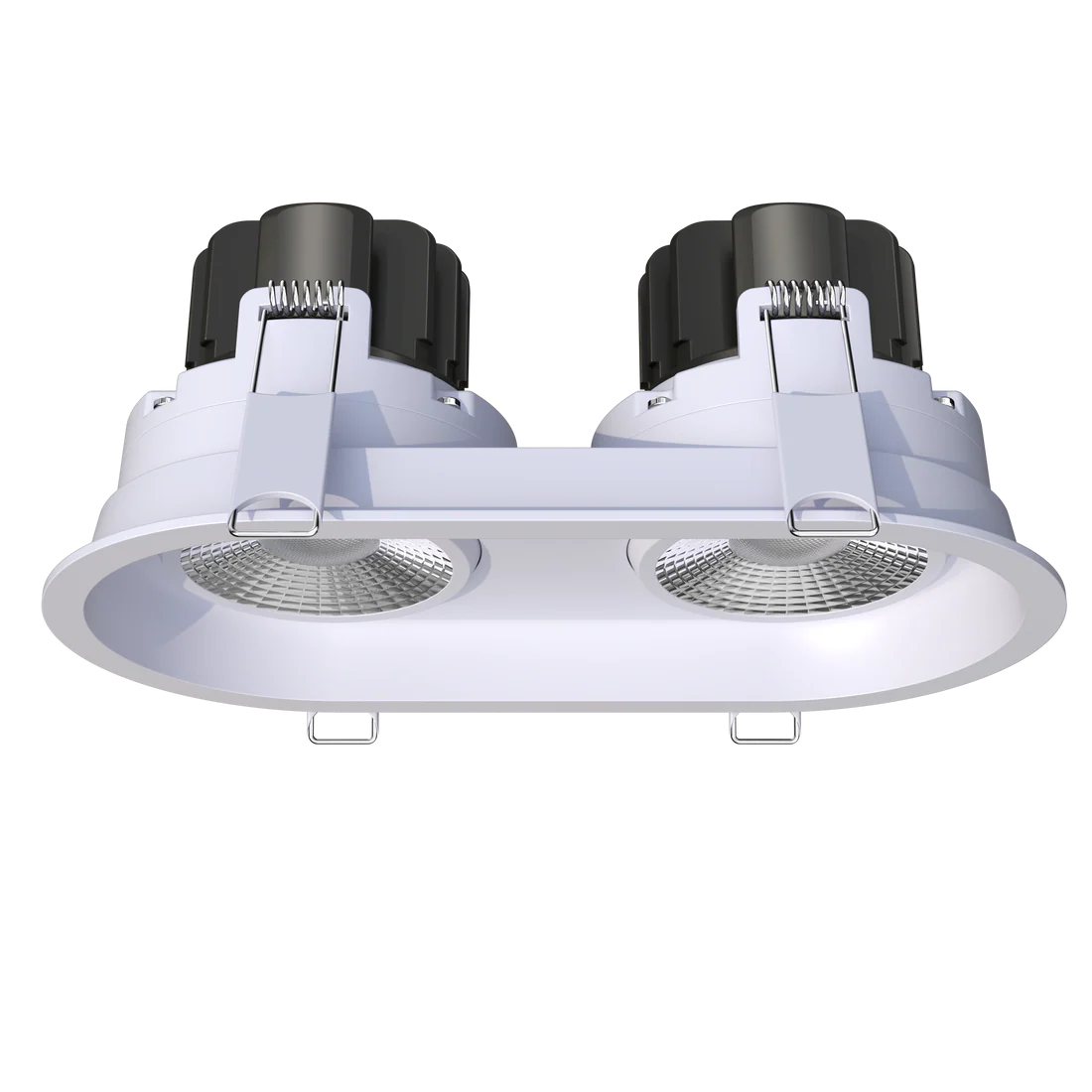

Deliver high-performance linear accent lighting with a classic, low-profile finish using the Ellipse 3.5-Inch Oval Double Head Regress Gimbal Series. Available in clean architectural white (Product Code: G-23342) and sophisticated matte black (Product Code: G-23352), this dual-light recessed fixture features a traditional trimmed styling with an overlapping edge. Designed for effortless clip-in mounting, the heavy-duty spring clips snap securely against the ceiling substrate, concealing minor drywall imperfections while providing an exceptionally clean, crisp ceiling transition.

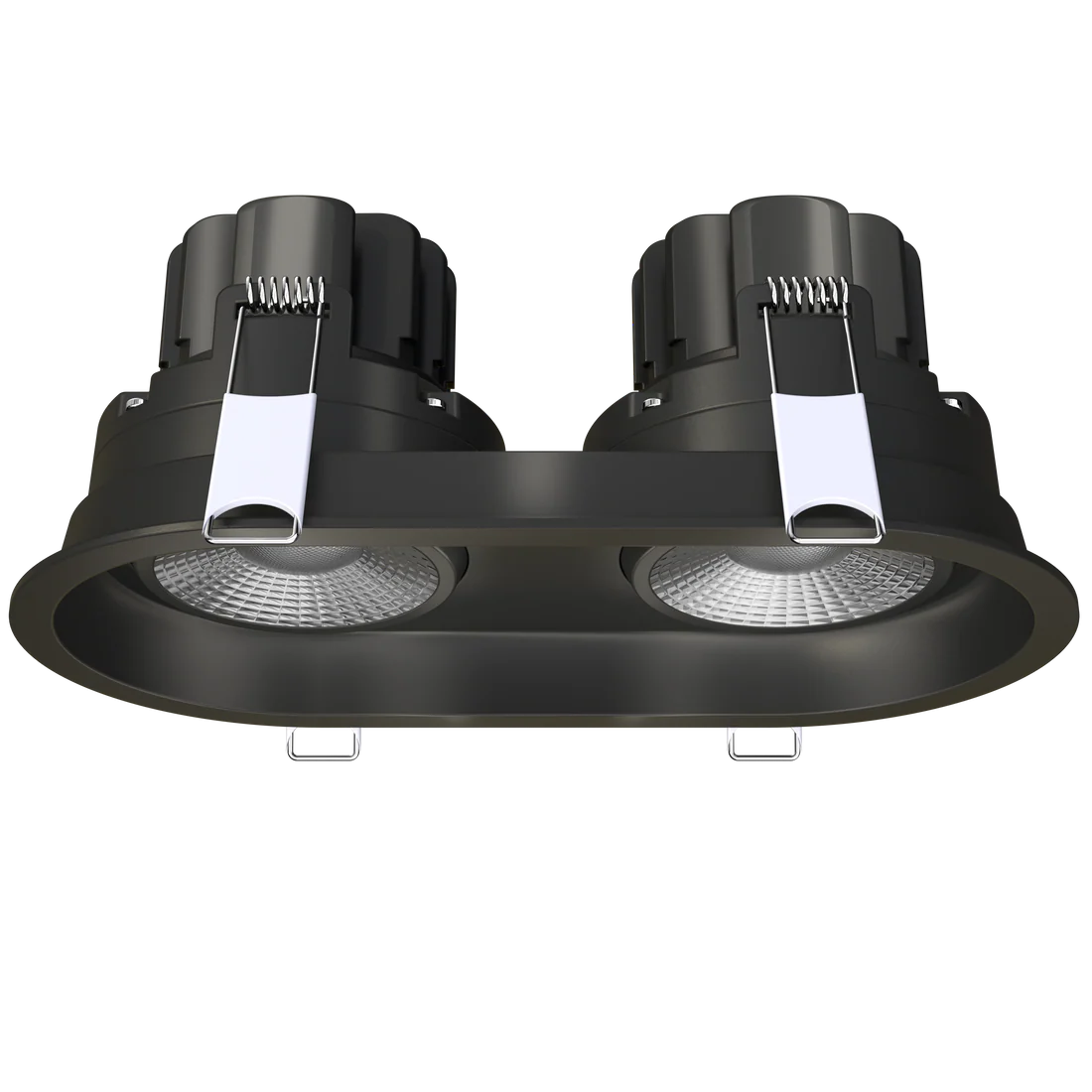

Equipped with two independently adjustable gimbal heads, this fixture offers a flexible 30° directional tilt angle and a wide 60° default beam spread per head, allowing you to spotlight multiple design elements, wash fine textures, or paint a multi-directional accent pattern across walls. The regress design recesses the clear dual diffusers deep back into the ceiling layout, stopping high-angle glare and ensuring high-end visual comfort. Integrated with advanced 5-CCT Selectable technology, this 28W powerhouse delivers a combined 2700 lumens (1350 lumens per head) with a color-accurate CRI > 90 across five selectable temperatures ranging from warm 2700K to clean 5000K daylight.

Architectural Versatility & Built-in Controls:

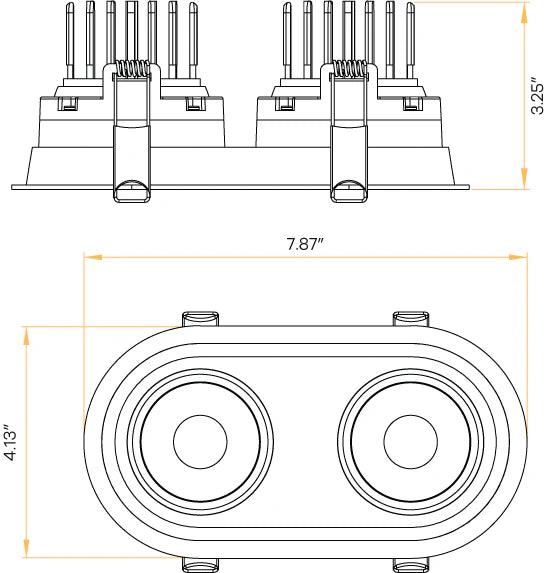

Operating on a multi-volt 120-277V line at 650mA, the Ellipse trimmed double-head downlight supports multi-protocol architectural control through standard Triac or commercial 0-10V dimming paths. The low-profile frame requires a 3.70" x 7.48" oval ceiling cutout, while its broad 4.13" x 7.87" outside dimensions provide a balanced, compact footprint on the ceiling plane with a structural height of 3.25".

Key Features:

• Refined Trimmed Edge: Clean, low-profile overlapping edge simplifies standard installations, hiding drywall cutout lines without adding bulky ceiling clutter.

• Double-Head Independent Adjustability: Two independently targetable spot heads with smooth 30° tilt angles let you tailor your accent beams to suit changing retail layouts or artwork galleries.

• Tough Code Compliance: IC Rated for safe, uninsulated contact with thermal insulation materials, engineered with an FT6 Plenum-rated wire jacket, and fully Wet Location sealed for luxury showers, bathrooms, or high-moisture commercial environments.

Technical Specification
