3.5 Inch Round Regress Gimbal Trimmed LED Downlight | 1.350Lm | 120/277V | CCT Selectable | Ellipse Series | Goodlite G-23340/350

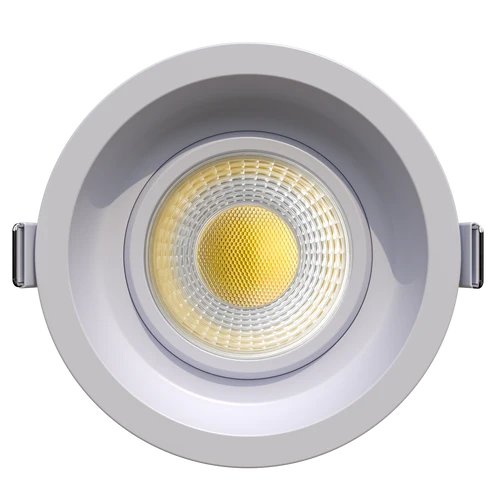

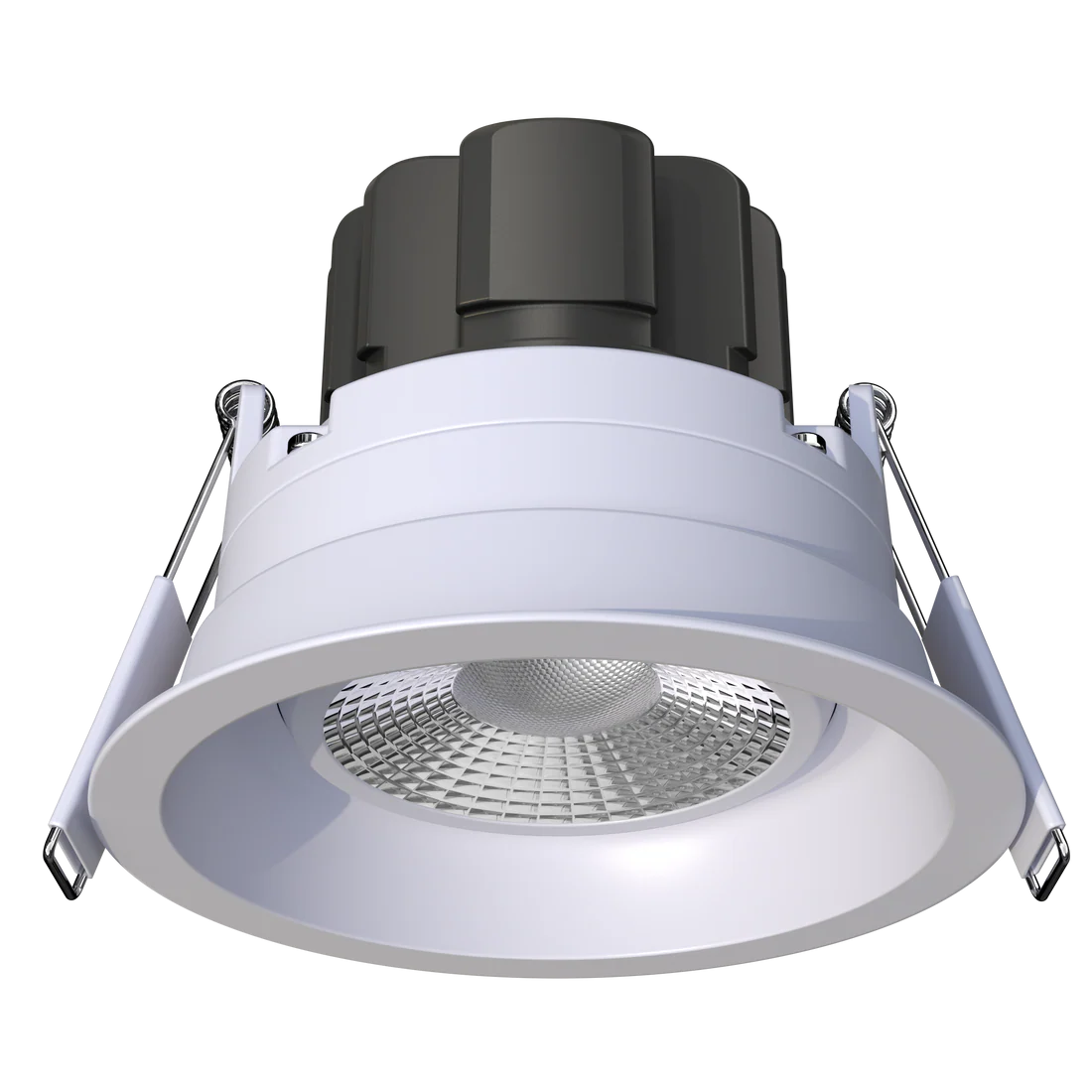

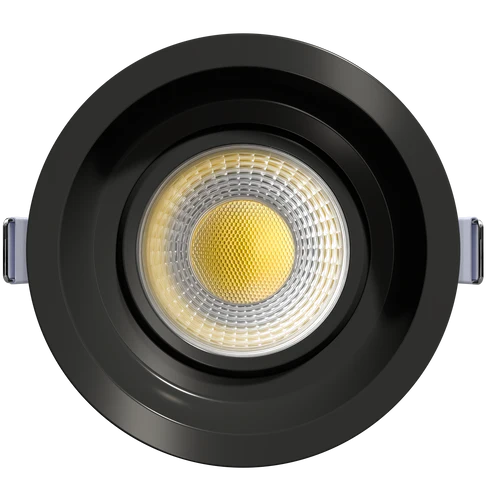

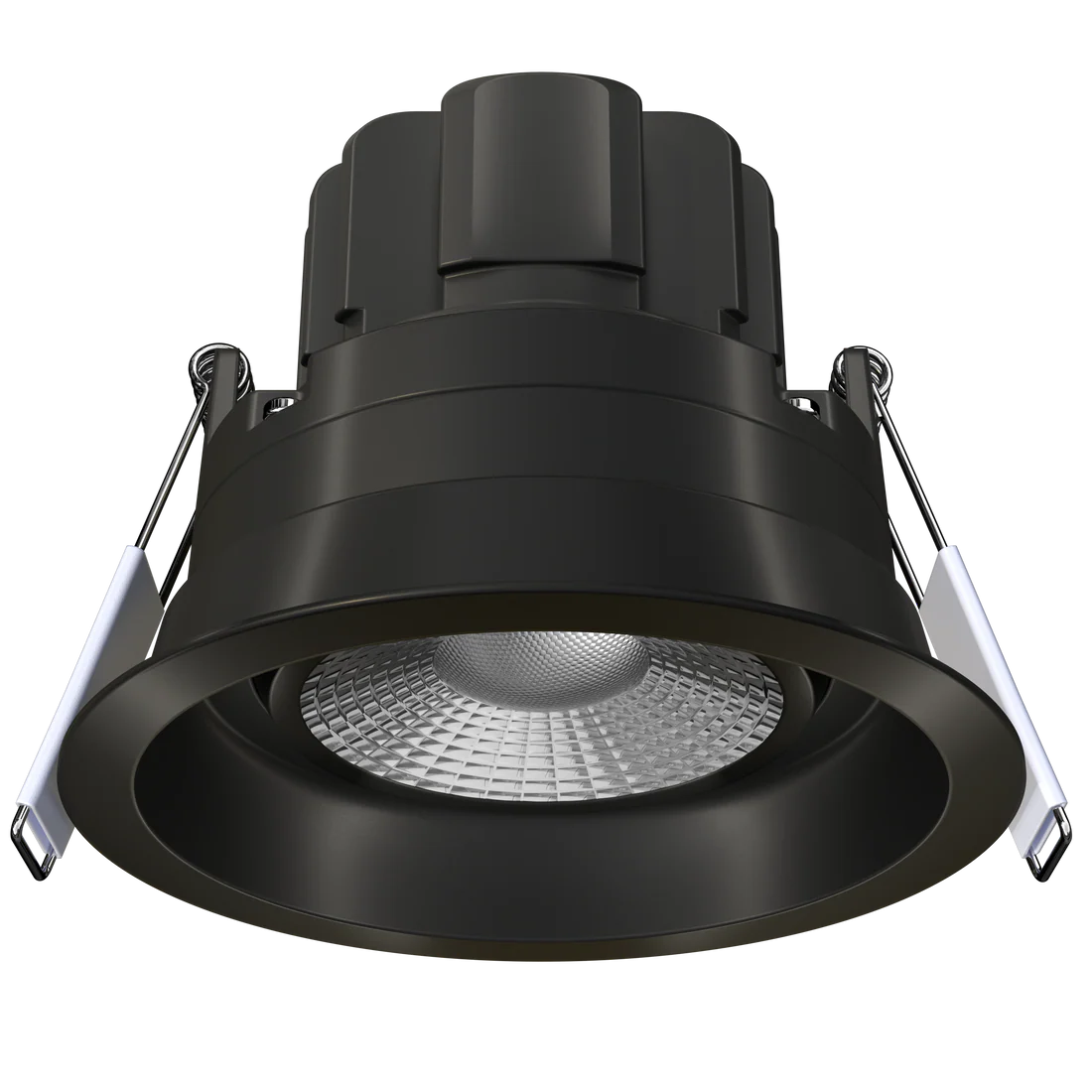

Deliver high-performance accent lighting with a classic, low-profile finish using the Ellipse 3.5-Inch Round Regress Narrow Gimbal Trimmed Series. Available in clean architectural white (Product Code: G-23340) and sophisticated matte black (Product Code: G-23350), this versatile fixture features a traditional trimmed styling with a narrow overlapping flange. Designed for effortless clip-in mounting, the heavy-duty spring clips snap securely against the ceiling substrate, concealing minor drywall imperfections while providing an exceptionally clean, crisp ceiling transition.

Engineered with a deeply regressed housing, the clear single diffuser is set far back into the aperture to minimize high-angle glare and provide excellent visual cutoff. The adjustable internal gimbal mechanism provides a smooth 30° directional tilt angle, allowing you to effortlessly steer light toward artwork, architectural features, or specific workspace surfaces. Outfitted with a wide 60° default beam spread, it delivers a beautifully uniform flood pattern that balances dramatic accenting with highly usable ambient illumination.

Architectural Versatility & Built-in Controls:

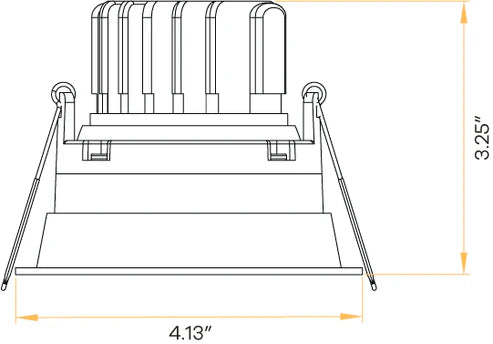

Operating efficiently at 14W, this compact downlight features built-in 5-CCT Selectable technology, enabling field adjustments across five color temperatures ranging from warm 2700K to cool 5000K daylight. Delivering a punchy 1350 lumens with a color-true CRI > 90, it ensures rich, natural color rendering throughout the space. The electrical footprint is built for commercial flexibility, running on a multi-volt 120-277V protocol at 340mA with native support for dual Triac and 0-10V dimming lines. Structurally compact, it requires a simple 3.70" round cutout and has an outside diameter (OD) of 4.13" alongside a 3.25" fixture height.

Key Features:

• Refined Narrow Trim: Clean, low-profile overlapping edge simplifies standard installations, hiding drywall cutout lines without adding bulky ceiling clutter.

• Deep Regress Glare Control: Recessed optic pocket shields the LED light source from the direct line of sight, maximizing occupant eye comfort.

• Robust Code Standards: Fully IC Rated for safe installation in direct contact with standard attic insulation, utilizing an FT6 Plenum-rated jacket and a Wet Location seal for premium wet areas, commercial kitchens, or covered outdoor soffits.

Technical Specification
