3 Inch Double Head Regress Gimbal Trimless LED Downlight | 1.400Lm | 120/277V | CCT Selectable | Ellipse Series | Goodlite G-23322/332

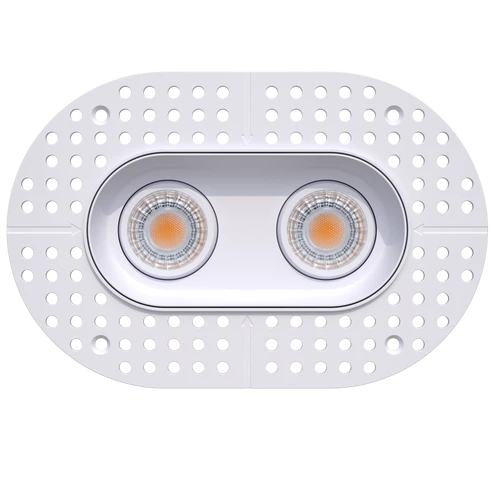

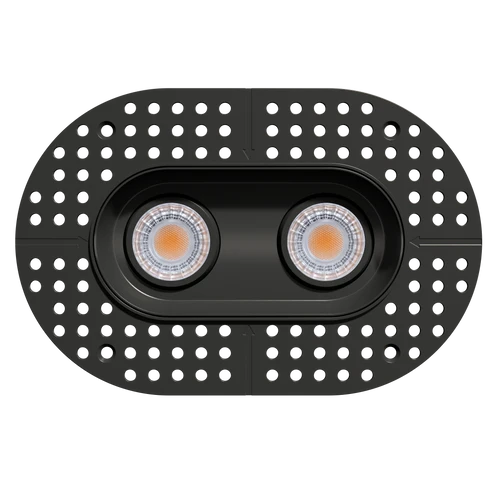

Achieve an ultra-clean, high-end, and completely seamless ceiling aesthetic with the Ellipse 3-Inch Oval Double Head Trimless Regress Gimbal Series. Available in architectural white (Product Code: G-23322) and deep matte black (Product Code: G-23332), this premium dual-light downlight drops the traditional overlapping flange in favor of a structural mud-in mounting system. Once finished directly into the drywall, the plaster frame completely disappears, leaving only a minimalist, high-contrast oval aperture integrated into the ceiling plane.

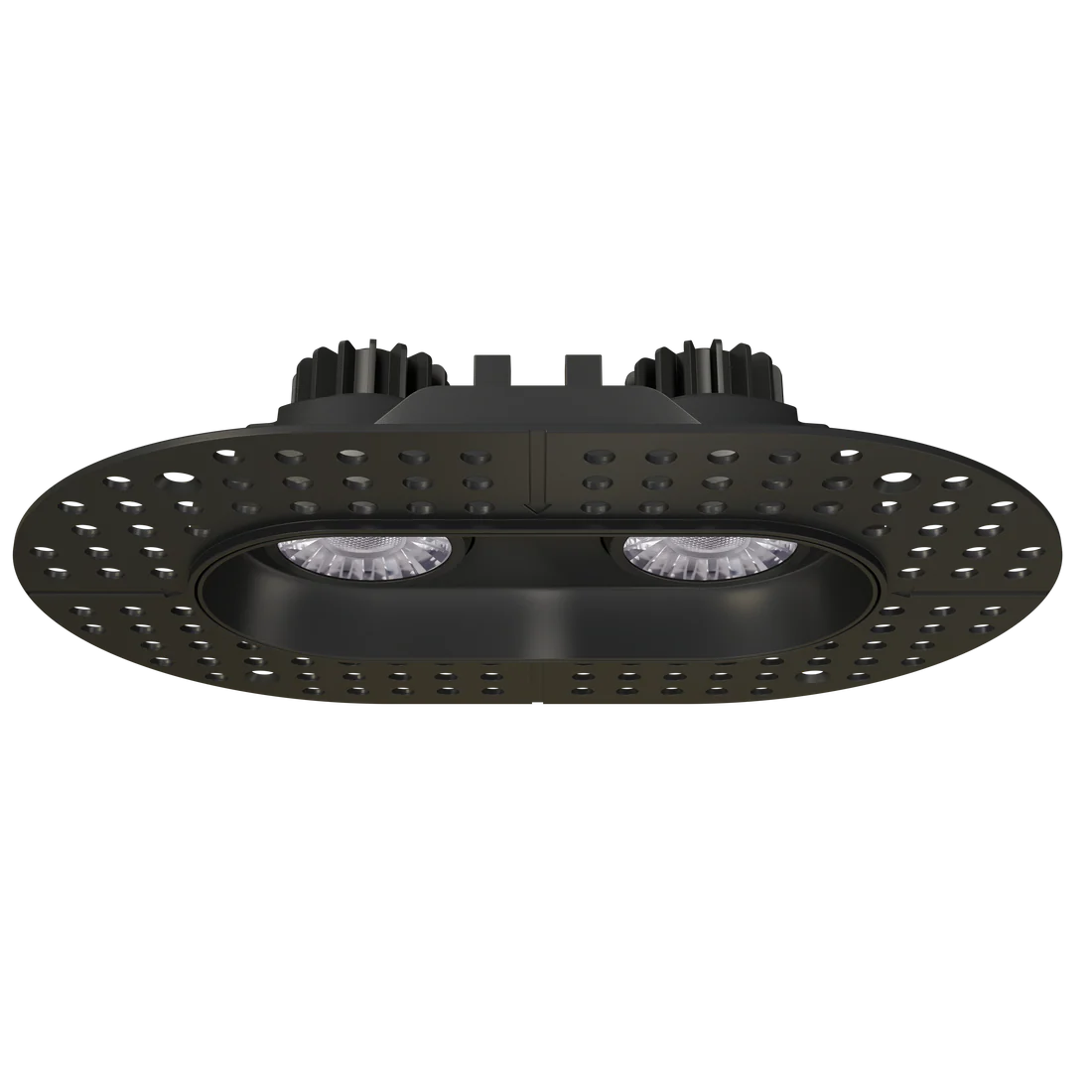

Equipped with two independently adjustable gimbal heads, this fixture offers a flexible 30° directional tilt angle and a focused 40° narrow beam spread per head, allowing you to spotlight separate design elements or wash fine textures simultaneously. The regress design recesses the clear dual diffusers deep back into the ceiling layout, stopping high-angle glare and ensuring high-end visual comfort. Integrated with advanced 5-CCT Selectable technology, this 15W system delivers a combined 1400 lumens (700 lumens per head) with a color-accurate CRI > 90 across five selectable temperatures ranging from warm 2700K to clean 5000K daylight.

Engineered for High-End Construction & Integration:

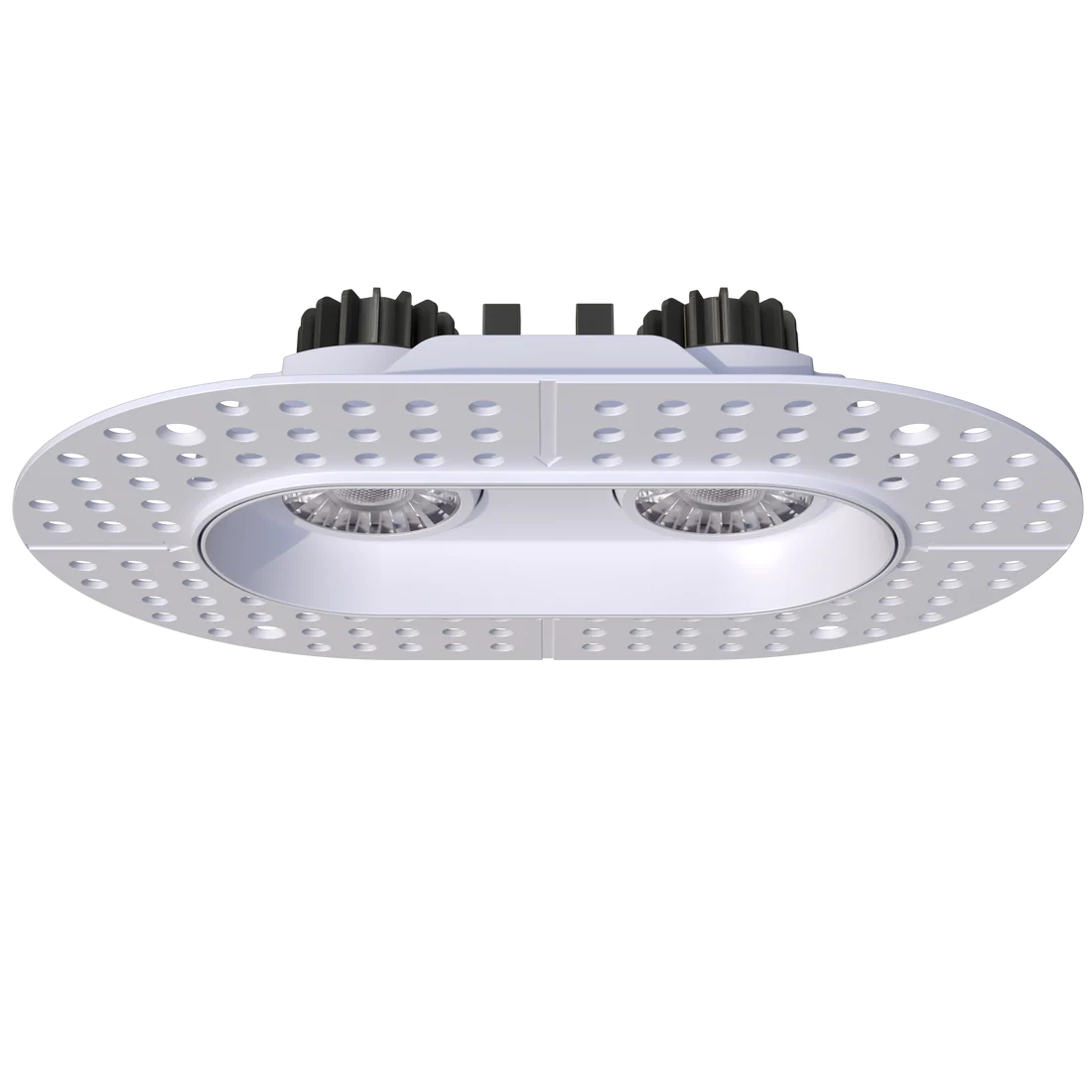

Operating on a multi-volt 120-277V line at 355mA, the Ellipse trimless dual-head downlight supports multi-protocol architectural control through standard Triac or commercial 0-10V dimming paths. The structural mesh frame requires a 3.23" x 6.38" oval ceiling cutout, while its broad 6.06" x 9.21" outside mud-in flange dimensions provide mudding compound with plenty of surface contact area to prevent plaster cracking over time.

Key Features:

• Flawless Trimless Integration: Heavy-duty mud-in flange installs completely flush with the drywall surface, eliminating visible trim lips for a continuous, high-end look.

• Dual-Head Independent Adjustability: Two independently targetable spot heads with smooth 30° tilt angles let you tailor your accent beams to suit changing retail layouts or artwork galleries.

• Tough Code Compliance: IC Rated for safe, uninsulated contact with thermal insulation materials, engineered with an FT6 Plenum-rated wire jacket, and fully Wet Location sealed for luxury showers, bathrooms, or high-moisture commercial environments.

Technical Specification
