3 Inch Triple Head Regress Gimbal Trimmer LED Downlight | 2.100Lm | 120/277V | CCT Selectable | Ellipse Series | Goodlite G-23303/313

Achieve maximum structural accentuation and premium wall-washing flexibility with the architectural-grade Ellipse 3-Inch Oval Triple Head Regress Gimbal Series. Available in a clean textured white (Product Code: G-23303) and an ultra-sleek matte black (Product Code: G-23313), this high-output multi-light linear fixture clusters three independently adjustable gimbal heads inside a single, low-profile oval frame. Boasting a smooth 30° directional tilt angle and a 40° narrow beam spread per head, it empowers lighting designers to pinpoint three separate focal objects, spread high-impact spot lighting across retail displays, or build a complex cross-beam pattern from one compact installation point.

Each head features a high-performance regress design, setting the clear diffusers deep back into the trim housing to eliminate harsh high-angle glare and ensure ultimate visual comfort. Driven by advanced 5-CCT Selectable technology, this 23W powerhouse offers seamless adjustments across 5 color profiles (2700K, 3000K, 3500K, 4100K, and 5000K). It projects a combined brightness of 2100 lumens (700 lumens per individual head) with a CRI > 90 for flawless color precision.

Engineered for Commercial-Grade Performance:

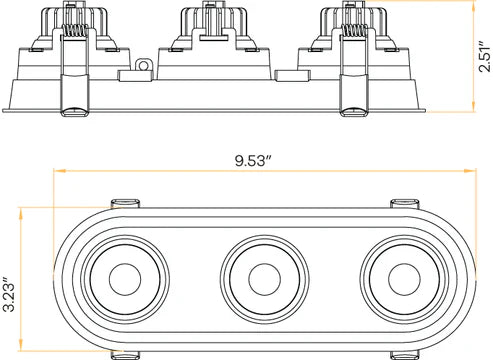

Operating on a universal multi-volt 120-277V line at a robust 520mA current, the Ellipse triple-head series integrates perfectly with both traditional Triac and commercial 0-10V dimming systems. Rugged, integrated tension springs facilitate a secure, hassle-free clip-in installation into a linear 2.95" x 9.29" oval ceiling cutout, while the minimal 3.23" x 9.53" outer dimension (OD) keeps your ceiling layout strikingly clean and contemporary.

Key Features:

• Triple-Head Independent Target Control: Three fully independent gimbals with 30° adjustable tilt and focused 40° beams open up vast multi-directional accenting possibilities for premium galleries, boardrooms, and hospitality.

• Flawless Structural Compliance: Fully IC Rated for direct contact with structural ceiling insulation and manufactured with an FT6 Plenum-rated wire jacket to confidently meet strict multi-family or commercial fire safety codes.

• Wet Location Rated Build: Fully sealed internal components ensure stable, rust-free operation in moisture-heavy environments, luxury shower rooms, commercial pool spaces, or outdoor overhangs.

Technical Specification
