3 Inch Double Head Regress Gimbal Trimmer LED Downlight | 1.400Lm | 120/277V | CCT Selectable | Ellipse Series | Goodlite G-23302/312

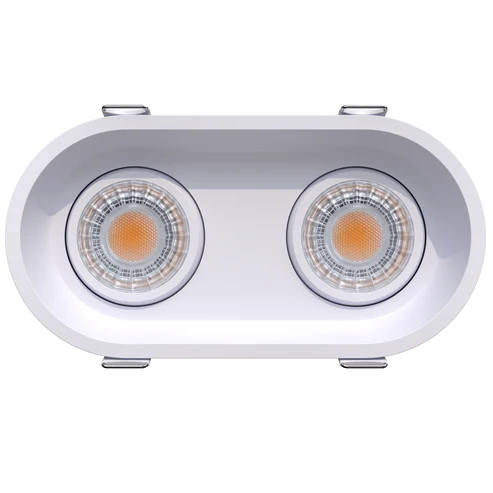

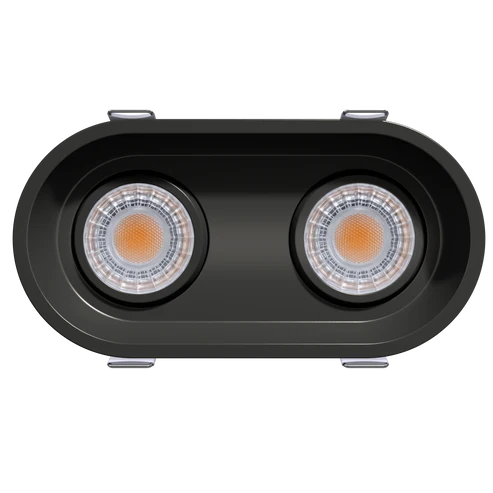

Deliver high-performance, architectural-grade accent lighting with the Ellipse 3-Inch Oval Double Head Regress Gimbal Series. Available in clean textured white (Product Code: G-23302) and low-profile matte black (Product Code: G-23312), this unique dual-head multi-light fixture features two independently adjustable gimbals housed in a sleek oval frame. With a 30° directional tilt angle and a 40° narrow beam spread per head, it provides ultimate flexibility to cross-beam illuminate objects, wash large vertical surfaces, or accent multiple focal points simultaneously from a single electrical connection.

The fixture's premium regress design positions the dual light sources deep within the housing to eliminate glare and optimize visual comfort. Equipped with advanced 5-CCT Selectable technology, this 15W system lets you switch between 5 color temperatures (27K, 30K, 35K, 41K, and 50K) effortlessly. Delivering a total output of 1400 lumens (700 lumens per head) at a CRI > 90, it guarantees pristine, vibrant, and color-accurate environments.

Engineered for Multi-Light Efficiency & Performance:

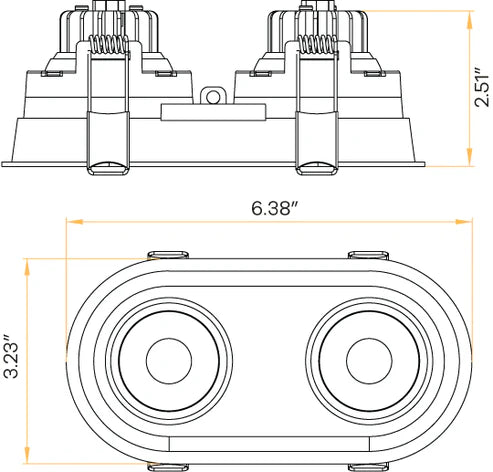

Running on a multi-volt 120-277V protocol at 355mA, the Ellipse oval series handles smooth, flicker-free dimming via traditional Triac or commercial 0-10V systems. Heavy-duty spring clips snap securely into a custom 2.95" x 6.14" oval ceiling cutout, while the minimal 3.23" x 6.38" outer dimension (OD) keeps the modern, trimmed ceiling footprint incredibly compact and elegant.

Key Features:

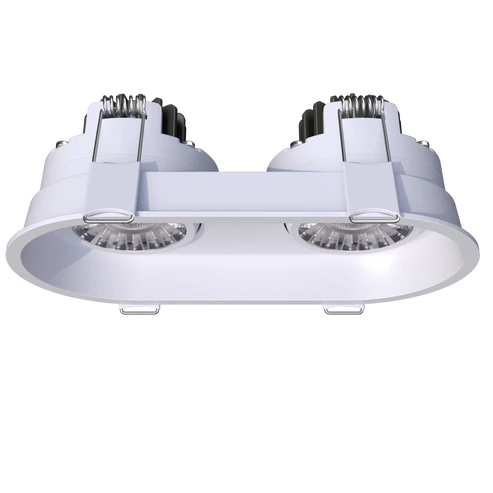

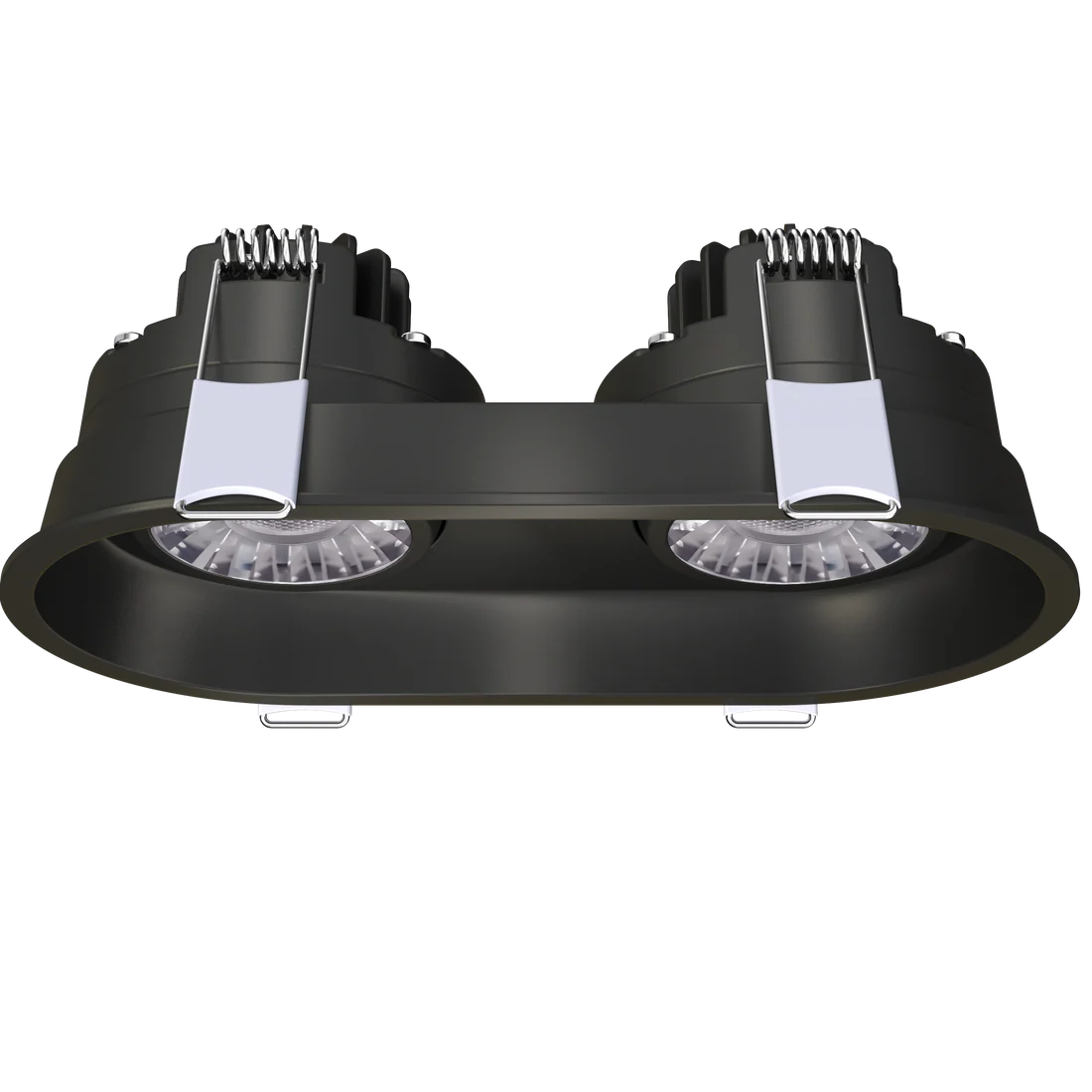

• Dual-Head Independent Aiming: 30° smooth directional tilt paired with a focused 40° default beam angle on each head offers endless design potential for commercial galleries, feature walls, and luxury retail.

• Rigorous Building Safety Standards: IC Rated for safe, direct contact with ceiling insulation and wired with a fire-resistant FT6 Plenum-rated wire jacket.

• Wet Location Rated: Fully sealed housing allows for safe installation in high-moisture interiors, luxury spa settings, bathroom perimeters, or outdoor canopies.

Technical Specification
