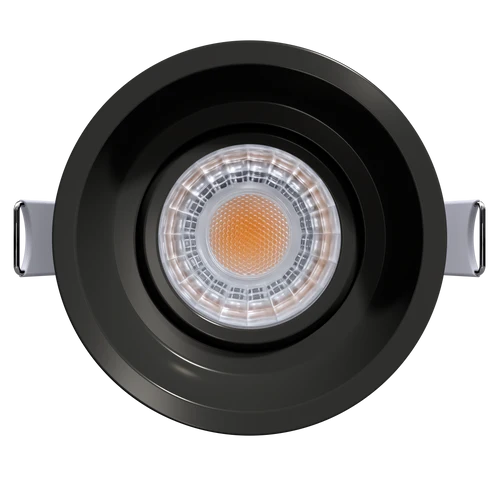

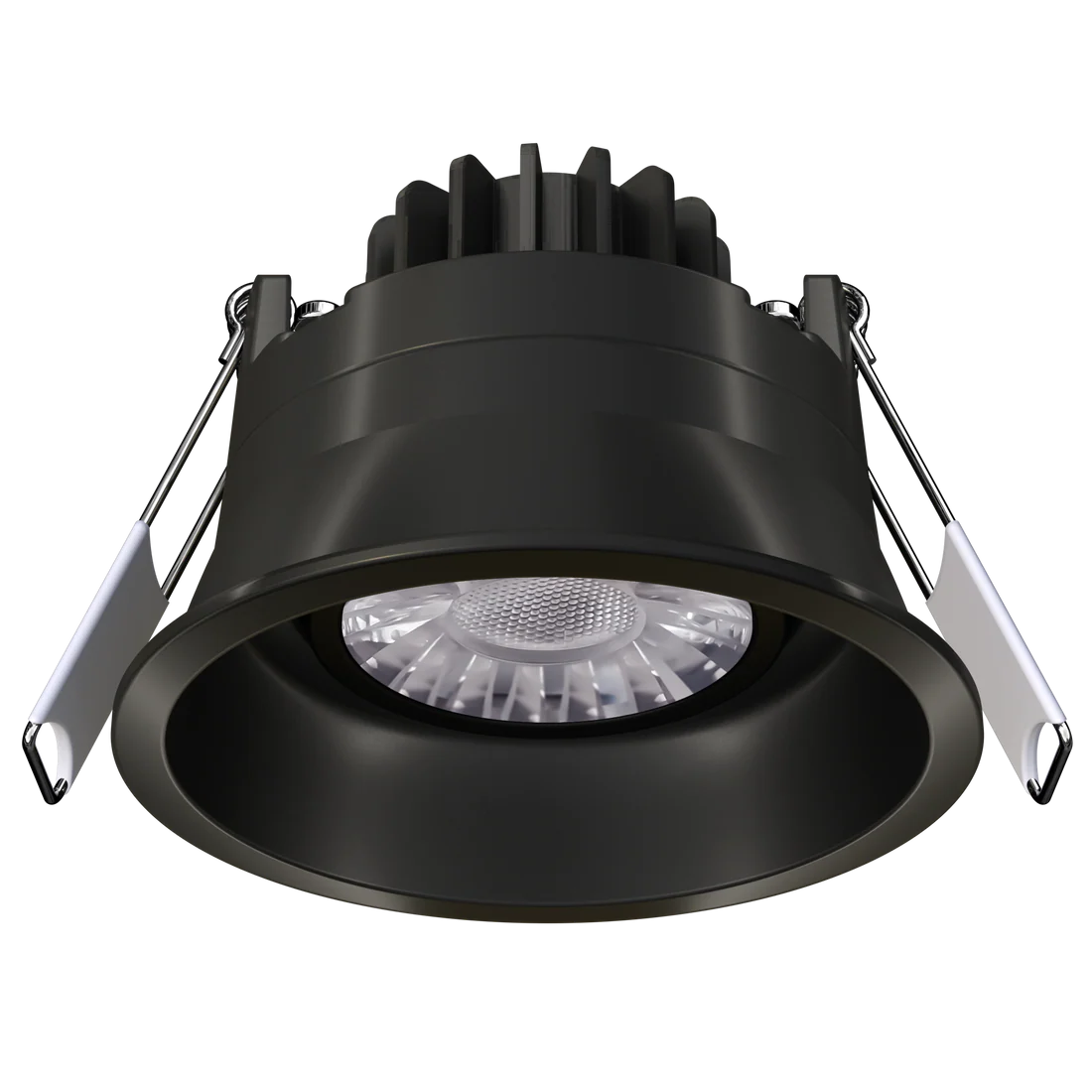

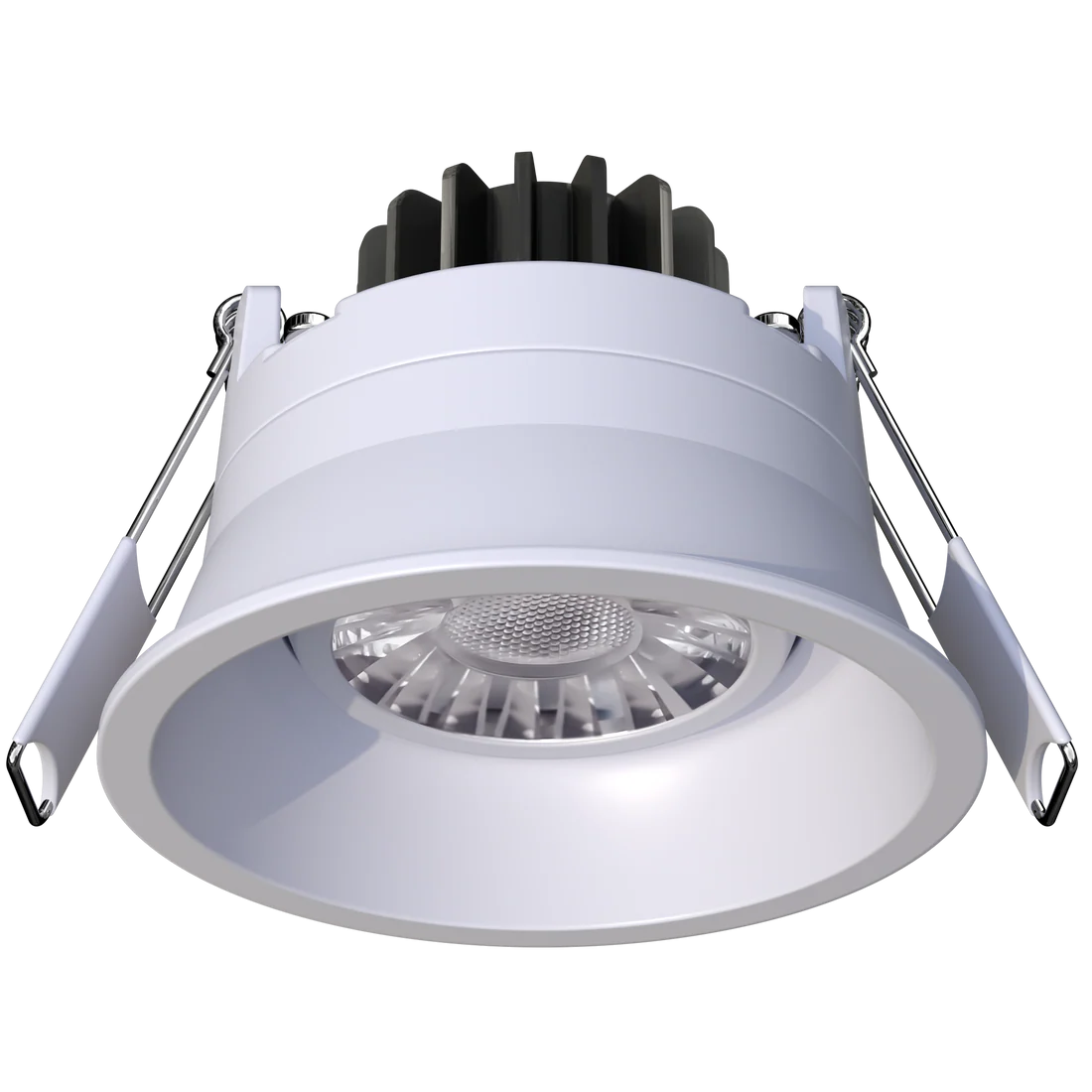

3 Inch Round Regress Gimbal Trimmed LED Downlight | 750Lm | 120/277V | CCT Selectable | Ellipse Series | Goodlite G-23300/310

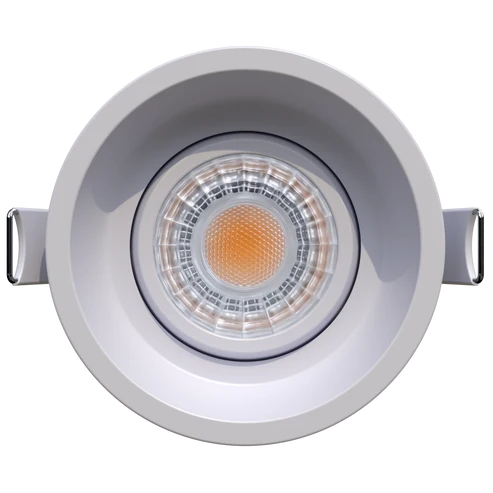

Experience precise, architectural-grade accent lighting with the Ellipse 3-Inch Round Regress Narrow Gimbal Downlight Series. Available in both classic textured white (Product Code: G-23300) and sophisticated matte black (Product Code: G-23310), this high-performance directional fixture features a versatile 30° adjustable tilt angle and a tight 40° narrow beam spread, allowing you to effortlessly highlight artwork, structural details, or accent walls with smooth, targeted illumination.

Its premium regress design deeply sets the light source back into the clean, low-profile trimmed housing, significantly reducing high-angle ceiling glare for superior visual comfort. Equipped with advanced 5-CCT Selectable technology, these 8W fixtures allow you to choose between 5 color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K) via a simple switch during installation. Delivering a bright 750 lumens with an exceptional CRI > 90, the Ellipse series ensures flawless color accuracy and true-to-life rendering.

Engineered for High-End Commercial & Residential Applications:

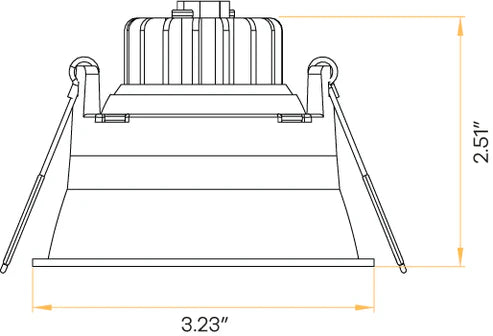

Built with a universal multi-volt 120-277V input and a stable 170mA output current, this gimbal series supports dual-protocol architectural control through standard Triac or commercial 0-10V dimming systems. The heavy-duty clip-in mounting system allows for quick, toolless installation into a compact 2.95-inch ceiling cutout, while the minimal 3.23-inch outer diameter (OD) ensures a sleek, unobtrusive ceiling aesthetic.

Key Features:

• Precise Beam & Directional Control: The 30° directional tilt combined with a focused 40° spot beam makes it the ultimate choice for targeted wall-washing or retail focal displays.

• Top-Tier Building Safety Compliance: Features an IC Rating for safe, direct contact with ceiling insulation and includes an FT6 Plenum-rated wire jacket to satisfy strict commercial building fire codes.

• Wet Location Rated: Fully sealed and engineered to perform flawlessly in high-moisture spaces, luxury steam rooms, showers, bathrooms, or protected outdoor eaves.

Technical Specification
