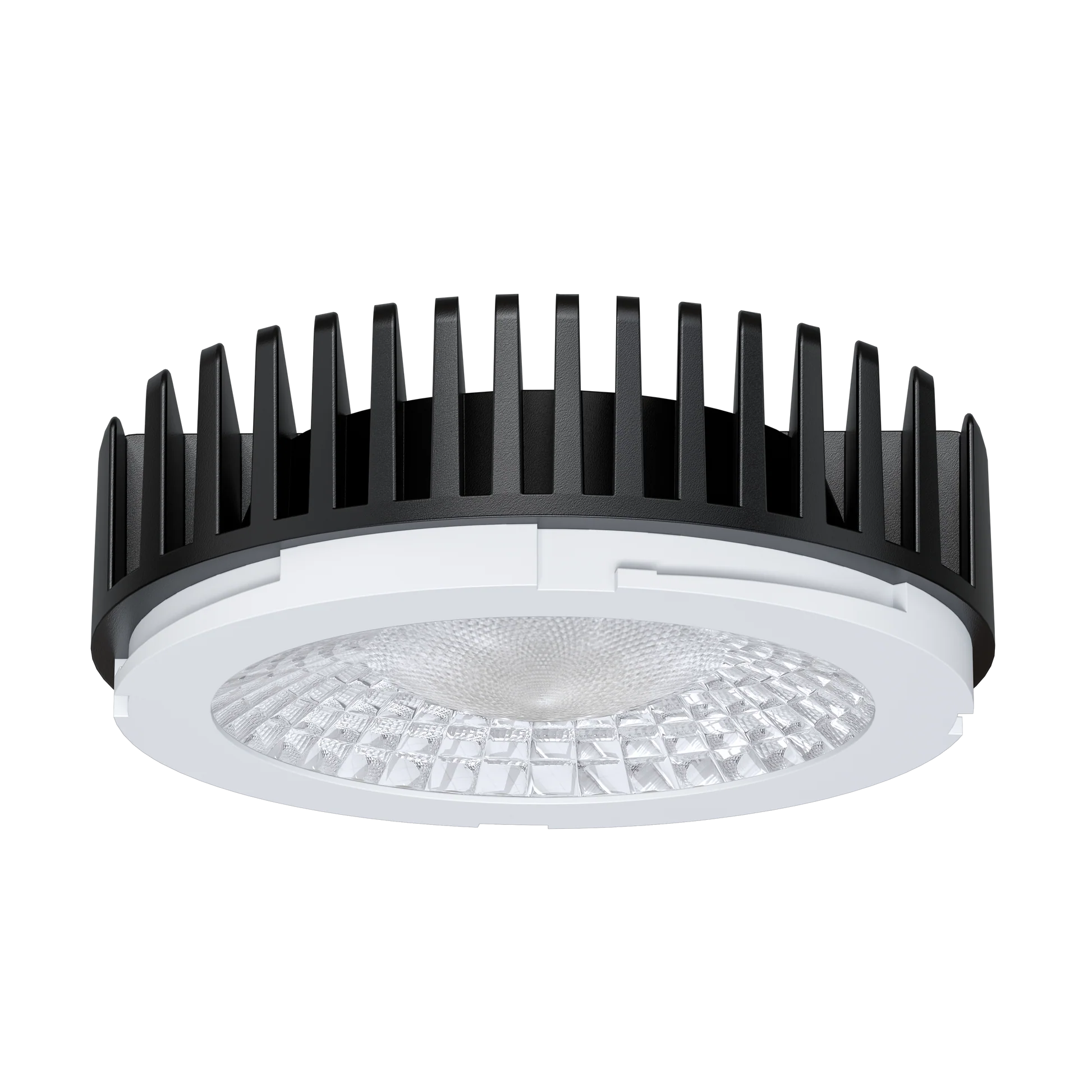

Goodlite Lighting 6" Interchangeable Module LED Downlight | 2,400Lm | CCT Selectable | Goodlite G-22605

$135.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

UL Listed FCC Certified ETL Certified

Elevate commercial and residential high-output architectural lighting with the Aster 6" 25W LED Interchangeable Module (Model G-22605, Ordering Code: M6/25W/LED/5CCT). Engineered for maximum versatility, this high-performance 6-inch downlight engine features an interchangeable optics module system with a default clear diffuser and a 60° beam spread. Designed with universal mounting compatibility, it provides high-lumen, low-glare architectural illumination ideal for hospitality, retail, office, and multi-family projects.

Delivering a powerful 2400 lumens at only 25W, this module offers multi-voltage 120-277V input and dual-dimming flexibility (TRIAC and 0-10V dimming down to 5%). It features field-selectable 5-CCT color tuning (2700K, 3000K, 3500K, 4100K, and 5000K) plus integrated Dim-to-Warm (DTW) modes, all supported by exceptional color rendering (CRI >90). Built to stringent commercial standards, the module is IC Rated, Wet Location Rated, FT6 Plenum Rated, California Title 24 Listed, and backed by an ETL certification and a 3-year warranty.

Key Features:

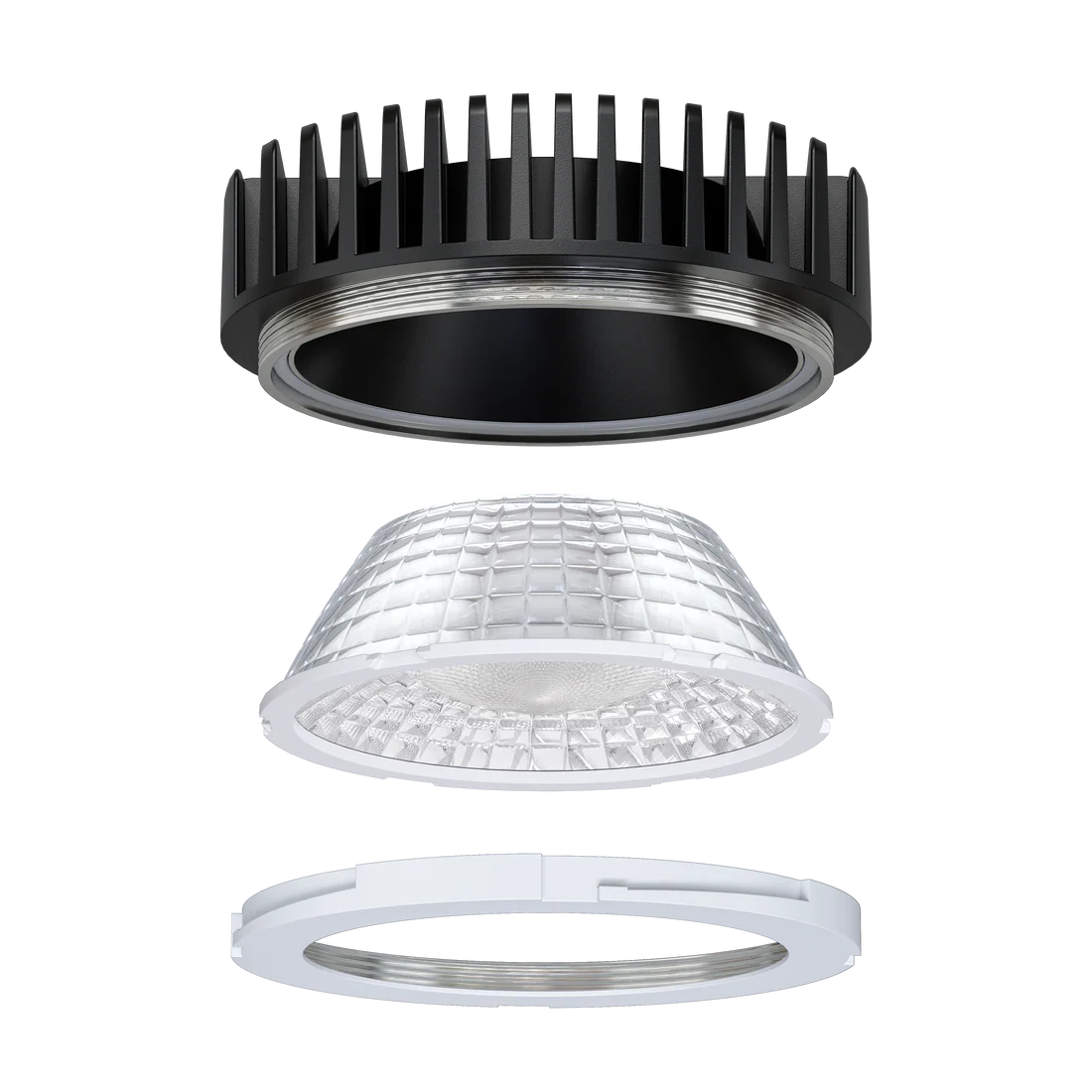

  • Interchangeable Module System: Modular 6-inch architectural design with a default clear diffuser for easy installation and maintenance.

  • 5-CCT + Dim-to-Warm Selectable: Field-selectable color temperatures (2700K, 3000K, 3500K, 4100K, 5000K) plus multi-select Dim-to-Warm functionality.

  • High-Output Performance: Produces 2400 lumens at 25W with a focused 60° beam distribution.

  • Universal 120-277V Input: Operates seamlessly across residential and commercial line voltages (600mA output current).

  • Dual Dimming Protocol: Fully compatible with both standard TRIAC forward-phase and commercial 0-10V dimming controls (100% to 5%).

  • High Color Quality (CRI 90+): Delivers rich, vibrant color accuracy across all architectural settings.

  • Rugged & Compliant: Features Wet Location rating, IC housing rating, FT6 plenum wiring safety, and California Title 24 compliance.

Technical Specification Table

Technical Specification Product Details (G-22605 Profile)
Product Model / SKU G-22605
Ordering Code M6/25W/LED/5CCT
Product Line / Series Aster Interchangeable LED Module Series
Nominal Module Size 6.00 Inch
Primary Optics & Diffuser Clear Diffuser Lens (Default)
Mounting Type Universal Mounting
Power Consumption 25W
Input Voltage Range 120-277V AC
Output Current 600mA
Luminous Output 2400 Lumens
Color Rendering Index (CRI) CRI >90 (High Color Fidelity)
Beam Spread Angle 60° Optics
Selectable CCT Options 5CCT (2700K / 3000K / 3500K / 4100K / 5000K) + Dim-to-Warm (DTW)
Dimming Protocol / Range Dual TRIAC & 0-10V Dimming (100% - 5%)
Plenum Safety Rating FT6 Rated
Environmental Protection Wet Location Rated
Insulation Contact Rating IC Rated
Regulatory Compliance ETL Listed, California Title 24 Listed
Manufacturer Warranty 3-Year Warranty

Packaging & Logistics Specifications

  • Individual Barcode / UPC: 990379226050

  • Master Case Pack Quantity: 18 Units per Master Pack
