Aster-G-22600-6-inch-40W-82W-interchangeable-led-downlight-module-clear-diffuser
Aster-G-22600-6-inch-40W-82W-interchangeable-led-downlight-module-clear-diffuser
Aster-6-inch-82W-7200-lumens-commercial-led-module-5cct-g22600

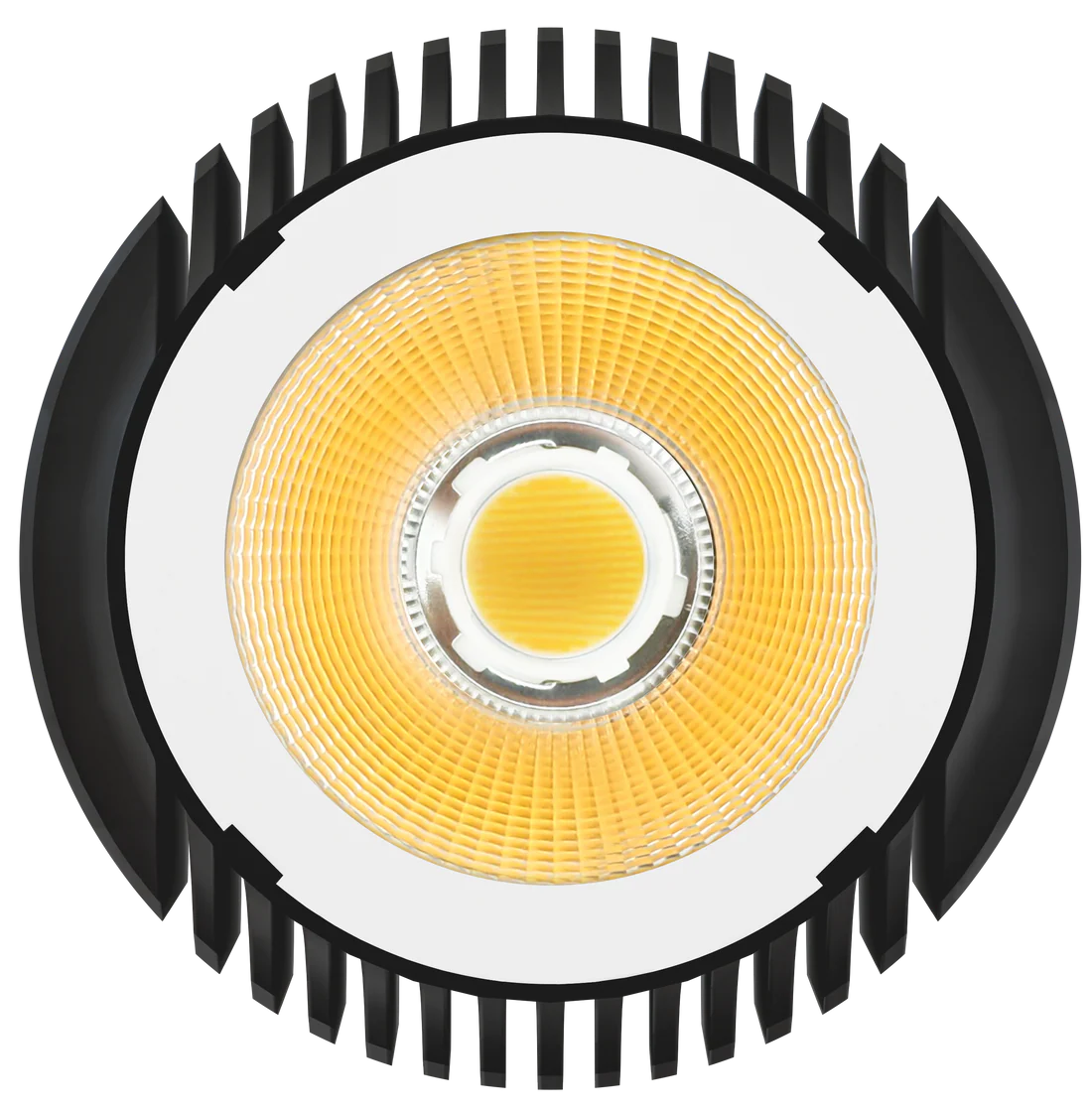

Goodlite Lighting 6" Interchangeable Module LED Downlight | 7,200Lm Max | CCT Selectable | Goodlite G-22600

$285.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

UL Listed FCC Certified ETL Certified

Deliver high-output, architectural-grade illumination for commercial, industrial, and high-ceiling environments with the Aster 6" 40/82W Interchangeable LED Module (Model G-22600, Ordering Code: M6/82W/WS2/LED/5CCT). Engineered as a heavy-duty 6-inch LED engine, this module features an interchangeable optics system with a default clear diffuser lens and a wide 50° beam angle. Designed with universal mounting compatibility, it is built for large-scale applications such as auditoriums, lobbies, retail centers, and high-ceiling spaces.

Featuring multi-wattage versatility, this module offers adjustable power steps at 40W generating 3800 lumens or 82W generating an intense 7200 lumens. It operates reliably on universal line voltage (120-277V AC with 890mA / 1850mA output) and supports dual-dimming protocols (TRIAC and 0-10V dimming down to 5%). Installers can easily customize light quality on site using the field-selectable 5-CCT color switch (2700K, 3000K, 3500K, 4100K, and 5000K) with high color fidelity (CRI >90). Built to stringent municipal safety standards, it is Chicago Plenum Rated, Wet Location Rated, IC Rated (at 40W setting), California Title 24 Listed, ETL Certified, and backed by a 3-year warranty.

Key Features:

  • Selectable Wattage & Lumen Output: Field-adjustable between 40W (3800 Lumens) and 82W (7200 Lumens) for tailored light levels in high-ceiling settings.

  • 5-CCT Field Selectable: Easily toggle between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures on site.

  • Interchangeable Optics System: Modular 6-inch architectural light engine featuring a default clear diffuser lens with a 50° beam spread.

  • Universal 120-277V Input: Compatible with commercial multi-voltage power systems (890mA / 1850mA output current).

  • Dual Dimming Protocol: Supports both standard TRIAC phase-cut and commercial 0-10V control systems (100% to 5%).

  • High-Spec Compliance & Safety: Features Chicago Plenum certification, Wet Location rating, IC Rating (at 40W mode), California Title 24 Listing, and ETL Certification.

Technical Specification Table

Technical Specification Product Details (G-22600 Profile)
Product Model / SKU G-22600
Ordering Code M6/82W/WS2/LED/5CCT
Product Line / Series Aster Interchangeable LED Module Series
Nominal Module Size 6.00 Inch
Primary Optics & Diffuser Clear Diffuser Lens (Default)
Mounting Style Universal Mounting
Power Consumption Selectable 40W / 82W
Input Voltage Range 120-277V AC
Output Current 890mA (at 40W) / 1850mA (at 82W)
Luminous Output 3800 Lumens (at 40W) / 7200 Lumens (at 82W)
Color Rendering Index (CRI) CRI >90 (High Color Fidelity)
Beam Spread Angle 50° Optics (Default)
Selectable CCT Options 5CCT (2700K / 3000K / 3500K / 4100K / 5000K)
Dimming Protocol / Range Dual TRIAC & 0-10V Dimming (100% - 5%)
Plenum Safety Rating Chicago Plenum Rated
Environmental Protection Wet Location Rated
Insulation Contact Rating IC Rated (Only at 40W setting)
Regulatory Compliance ETL Listed, California Title 24 Listed
Manufacturer Warranty 3-Year Warranty

Packaging & Logistics Specifications

  • Individual Barcode / UPC: 990379226005

  • Master Case Pack Quantity: 6 Units per Master Pack
