Certs:

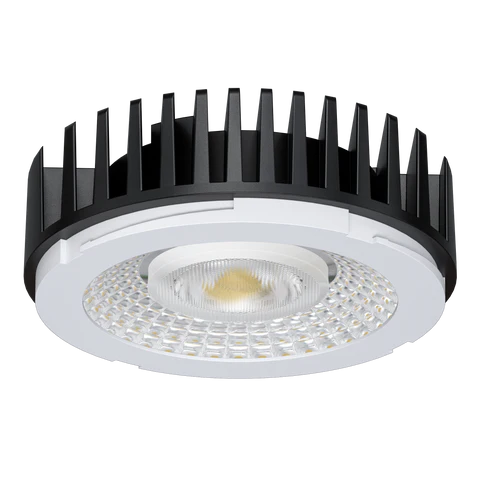

Elevate your commercial or residential lighting projects with the high-performance Aster 5-Inch Interchangeable LED Module. Engineered for ultimate versatility, this 18W powerhouse features advanced 5-CCT Selectable technology, allowing you to effortlessly switch between five color temperatures (27K, 30K, 35K, 41K, and 50K) to create the perfect ambiance for any space.
Delivering an impressive 1800 lumens of crisp, high-efficiency light, the Aster module boasts a CRI > 90, ensuring exceptional color accuracy and vibrant, natural rendering. Its clear diffuser and precise 60° beam spread offer focused, glare-free illumination. Designed with universal compatibility in mind, it supports both Triac and 0-10V dimming systems alongside a Multi-Select Dim to Warm feature for total light control.
Why Choose the Aster LED Module?

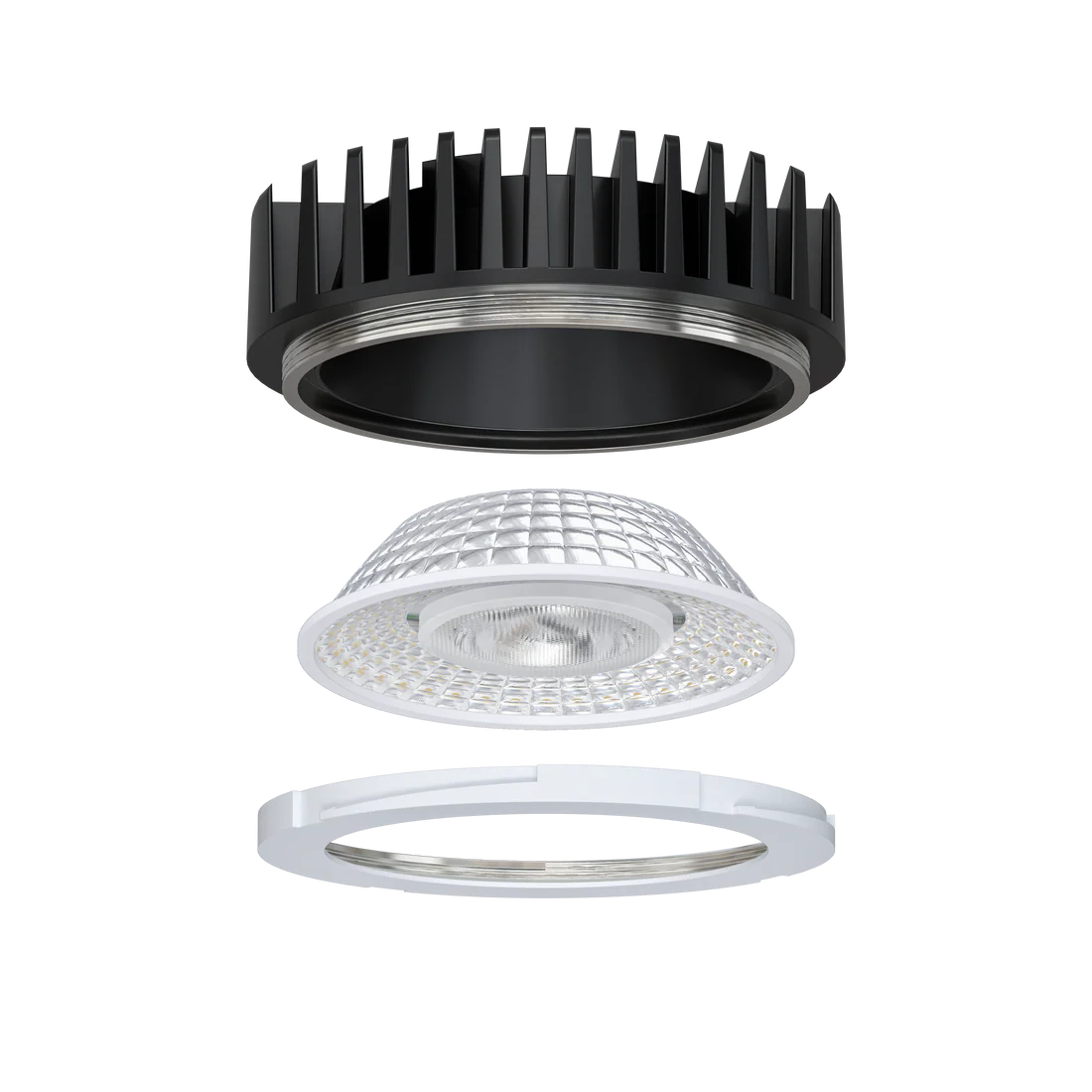

Safe & Flexible Installation: Features a universal mounting system, IC Rating (suitable for direct contact with ceiling insulation), and an FT6 Plenum-rated cable for maximum fire safety.
Built for Demanding Environments: Wet Location rated, making it the ideal choice for high-moisture indoor areas or protected outdoor spaces.
Industry-Standard Compliance: Energy-efficient and safe, fully certified with ETL Listing and Title 24 compliance.
| Technical Specification | Product Details |
| Product Name / Model | Aster - Interchangeable LED Module |
| Product Code | G-22505 |
| Description | M5/18W/LED/5CCT |
| Size / Diameter | 5 Inch |
| Wattage | 18W |
| Lumen Output | 1800 Lumens |
| Color Temperature (CCT) | Selectable (27K, 30K, 35K, 41K, 50K) |
| Color Rendering Index (CRI) | >90 |
| Beam Spread | 60° (Default) |
| Voltage | 120-277V |
| Output Current | 420mA |
| Dimming Type | Triac Or 0-10V Dimming / Multi-Select Dim to Warm |
| Plenum Rating | FT6 |
| Location / Safety Rating | Wet Location / IC Rated |
| Certifications | ETL Listed, Title 24 Listed |
| Warranty | 3 Years |
| Barcode (UPC/EAN) | 990379225053 |
| Master Pack Qty | 18 |
