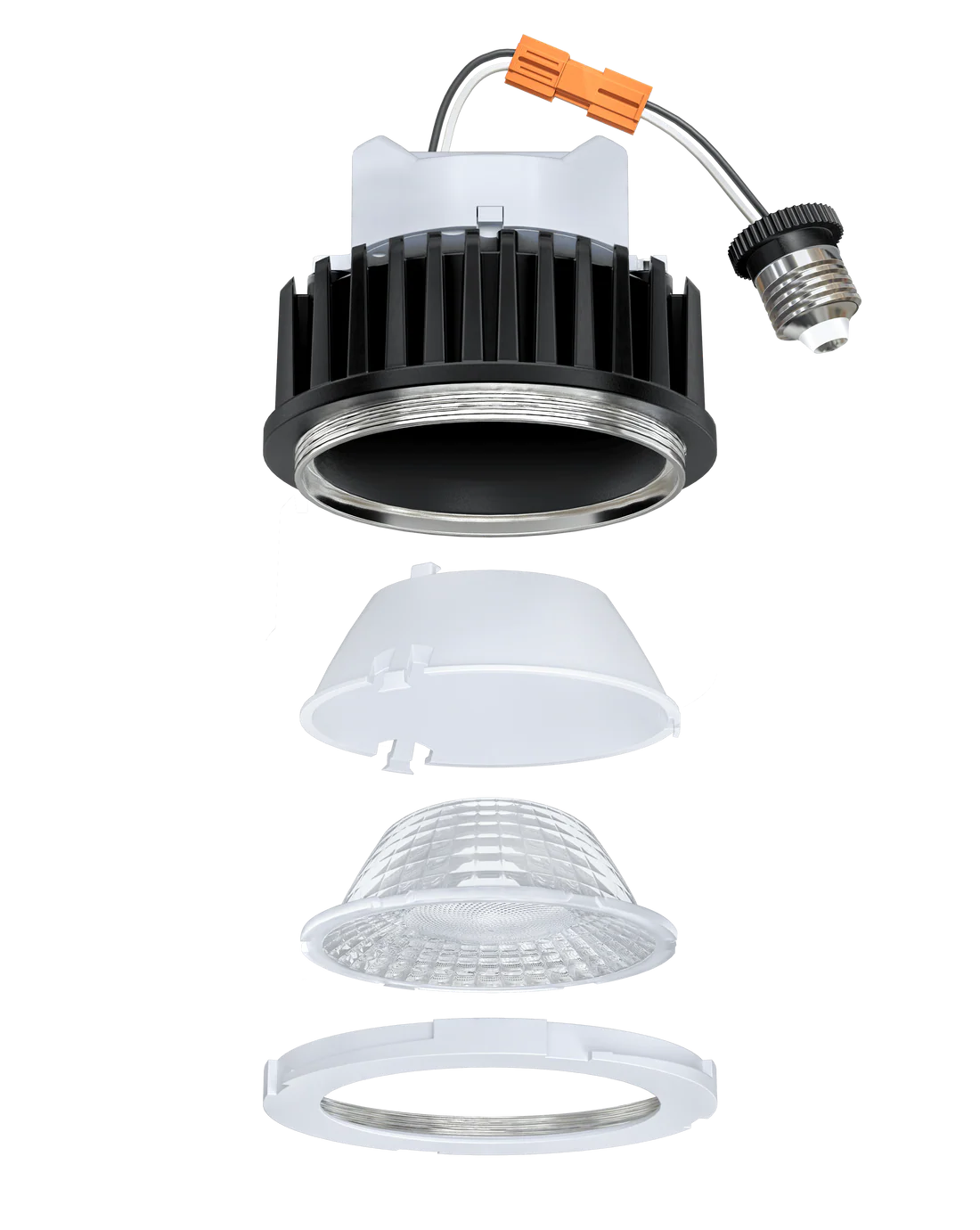

Easily upgrade existing recessed lighting with the Astrofit 4" 10W Interchangeable LED Retrofit Module (Model G-21400, Ordering Code: M/R4/10W/LED/5CCT). Specially designed for hassle-free installation into standard 4-inch recessed cans, this LED engine includes an E26 medium base adapter for direct screw-in retrofit applications. Featuring an interchangeable optics module system with a default clear diffuser lens and a 40° beam angle, it delivers smooth, high-efficiency downlighting for residential, commercial, and multi-family retrofits.
Generating 1000 lumens of clean illumination on just 10W of power, this module operates on standard 120V line voltage with continuous TRIAC dimming (100% down to 5%). It features field-selectable 5-CCT color tuning (2700K, 3000K, 3500K, 4100K, and 5000K), allowing you to customize the atmosphere of any room on the spot. Built to withstand challenging environments, the unit is Wet Location Rated, California Title 24 Listed, and backed by an ETL certification and a 3-year warranty.
Key Features:
E26 Can Mounting: Retrofits seamlessly into standard 4-inch recessed housing cans using the included E26 screw-in base adapter.
Interchangeable Optics System: Modular 4-inch design featuring a default clear diffuser lens with a 40° beam spread.
5-CCT Field Selectable: Easily toggle between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures during installation.
High-Efficiency Performance: Produces 1000 lumens while consuming only 10W of electricity.
120V TRIAC Dimmable: Compatible with standard 120V forward-phase TRIAC dimmers (100% to 5%).
Certified Compliance: Wet Location Rated for outdoor/shower use, California Title 24 Listed, and ETL Certified.
| Technical Specification | Product Details (G-21400 Profile) |
| Product Model / SKU | G-21400 |
| Ordering Code | M/R4/10W/LED/5CCT |
| Product Line / Series | Astrofit Interchangeable LED Retrofit Series |
| Nominal Module Size | 4.00 Inch |
| Mounting Style / Base Type | Recessed Can Mount (E26 Base Adapter) |
| Primary Optics & Diffuser | Clear Diffuser Lens (Default) |
| Power Consumption | 10W |
| Input Voltage Range | 120V AC |
| Luminous Output | 1000 Lumens |
| Beam Spread Angle | 40° Optics (Default) |
| Selectable CCT Options | 5CCT (2700K / 3000K / 3500K / 4100K / 5000K) |
| Dimming Protocol / Range | TRIAC Phase Dimming (100% - 5%) |
| Environmental Protection | Wet Location Rated |
| Regulatory Compliance | ETL Listed, California Title 24 Listed |
| Manufacturer Warranty | 3-Year Warranty |
Individual Barcode / UPC: 742131214009
Master Case Pack Quantity: 18 Units per Master Pack
