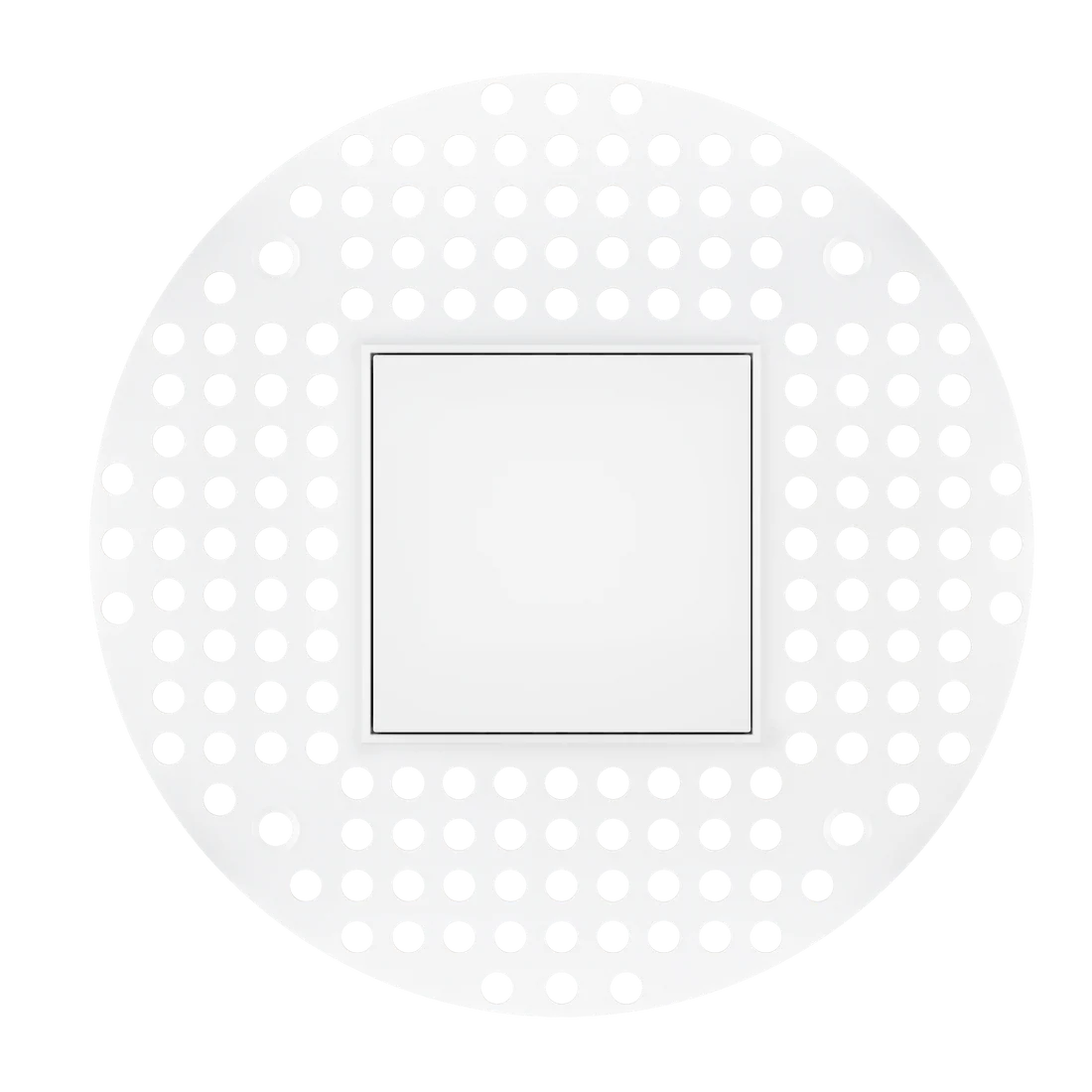

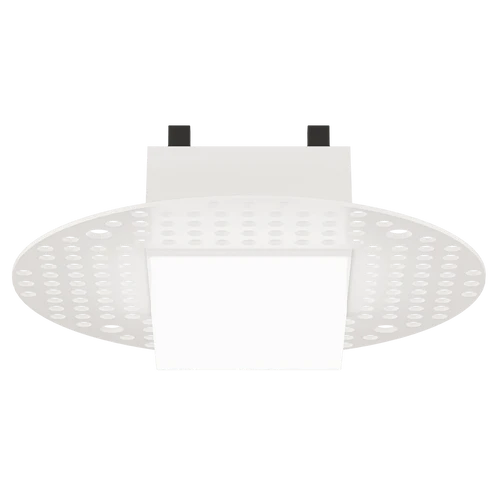

The Moon 4" Square Trimless Drop Lens Luminaire is a sleek, high-performance recessed lighting solution designed for modern commercial and residential interiors. Its trimless square design and frosted drop lens create a clean, seamless ceiling integration while delivering soft, glare-controlled illumination.
With selectable CCT (2700K, 3000K, 3500K, 4100K, 5000K), this luminaire offers customizable color temperatures to suit any space or mood. Producing 1200 or 1700 lumens with a CRI greater than 90, it ensures vibrant, high-quality lighting for offices, retail areas, hospitality venues, and upscale residential projects.
The Moon 4" luminaire features a wide 130° beam spread for uniform light distribution and supports 15W or 20W operation at 120–277V. It includes a clip-in mounting system for easy installation, is plenum rated (FT6), wet location rated, and compatible with Triac or 0–10V dimming for precise light control.
Durable and energy-efficient, it is ETL and Title 24 listed and comes with a 3-year warranty, providing professional-grade performance and long-term reliability.
| Feature | Moon 4" Square Trimless Drop Lens Luminaire |
|---|---|
| Product Code | G-20464 |
| Description Code | DL4/20W/SQ/2WS/5CCT/TL |
| Shape | Square |
| Style | Trimless |
| Size | 4 Inch |
| Finish | White |
| Diffuser | Frosted |
| Number of Lights | 1 |
| Cutout | Square 3.23” / Round 4.40” |
| Outside Dimensions (OD) | 6.89" |
| Height | 1.79" |
| Lens Width | 2.76" |
| Lens Drop | 0.98" |
| Mounting | Clip-in |
| Selectable CCT | 2700K / 3000K / 3500K / 4100K / 5000K |
| Lumens | 1200 / 1700 |
| CRI | >90 |
| Beam Spread | 130° |
| Wattage | 15 / 20W |
| Voltage | 120–277V |
| Output Current | 353 / 515 mA |
| Dimming | Triac or 0–10V |
| Plenum Rated | FT6 |
| Wet Location Rated | Yes |
| Certification | ETL, Title 24 |
| Warranty | 3 Years |
| Master Pack | 18 |
| Barcode | 990379204645 |
