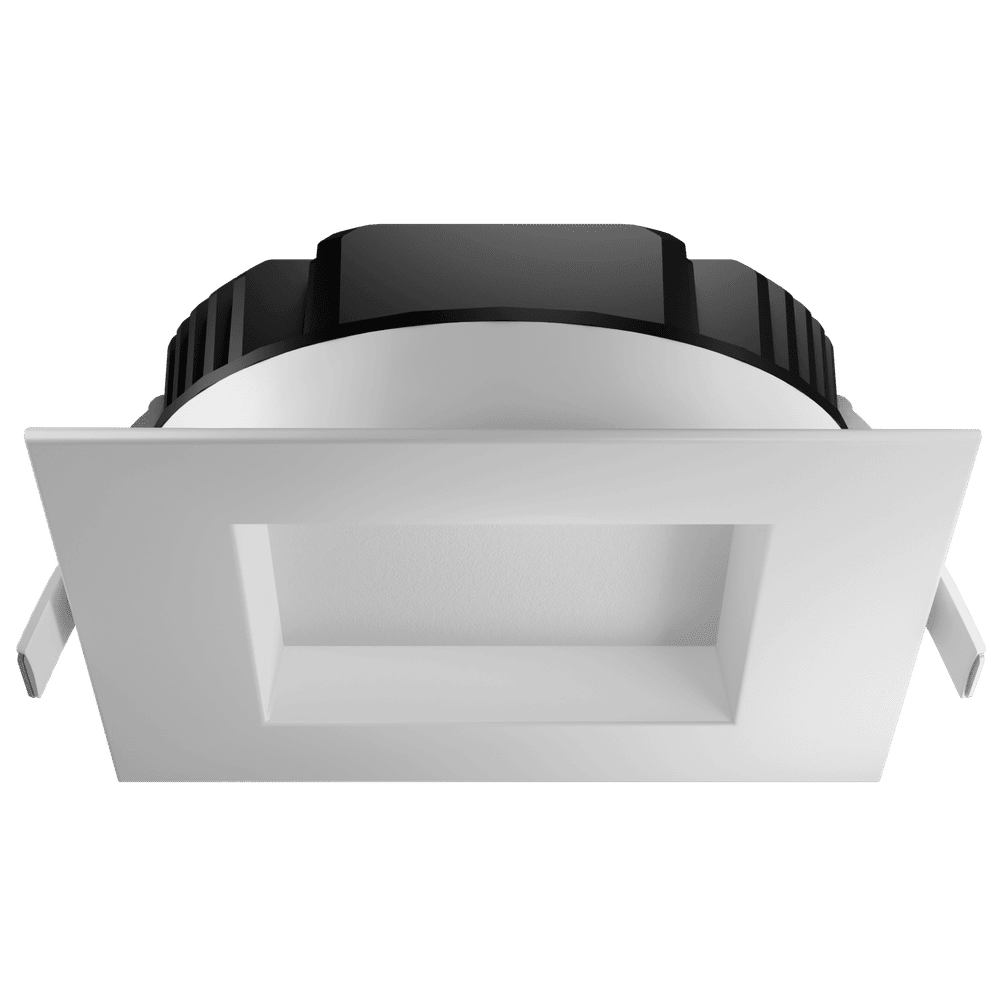

Regulus 6" Square Regress Slim LED Downlight – Selectable 10W/18W/28W, 5CCT, Wet Location

The Regulus 6-inch Square Regress Slim LED Downlight is a powerful architectural recessed lighting fixture designed for high-performance illumination and modern ceiling aesthetics. Featuring a regressed light source with a slim square trim, this fixture reduces glare while delivering clean, focused illumination ideal for both residential and commercial environments.

Engineered for flexibility, the downlight offers selectable wattage (10W / 18W / 28W), allowing installers to adjust light output depending on the application. With lumen outputs ranging from 950 to 2700 lumens, it provides excellent brightness levels suitable for general lighting, task lighting, and larger open spaces.

The fixture includes 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), enabling users to customize the lighting tone to match the environment—from warm residential spaces to bright commercial lighting. Its high CRI (>90) ensures accurate color rendering, enhancing visual clarity and comfort.

With a 100° beam angle, the Regulus 6" square downlight provides wide and even light distribution, making it ideal for living rooms, kitchens, offices, retail stores, hospitality environments, corridors, and large residential spaces.

The fixture supports Triac and 0-10V dimming, providing flexible brightness control for both residential and commercial lighting systems. Its clip-in mounting system allows quick and secure installation, helping contractors complete installations efficiently.

Built for demanding environments, the fixture is IC Rated, plenum rated (FT6), and wet location rated, making it suitable for installation in bathrooms, kitchens, covered outdoor ceilings, and insulated ceilings. Certified ETL and Title 24 compliant, and backed by a 3-year warranty, the Regulus 6" Square Regress Slim LED Downlight delivers reliable long-term lighting performance.

Technical Specifications

General Specifications

• Product Name: Regulus 6" Square Regress Slim LED Downlight

• Product Code: G-20246

• Model: RS6/28W/SQ/LED/5CCT

• Shape: Square

• Style: Regressed / Trimmed

• Size: 6 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

Dimensions

• Cutout Size: 6.29"

• Outside Dimension (OD): 7.09"

• Height: 2.40"

Mounting

• Installation Type: Clip-in

Light Performance

• Selectable Wattage: 10W / 18W / 28W

• Lumens: 950 / 1750 / 2700 lm

• CRI: >90

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Angle: 100°

Electrical Specifications

• Input Voltage: 120-277V

• Output Current: 750mA

• Plenum Rating: FT6

• Dimming: Triac or 0-10V Dimming Compatible

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 12 Units

• Barcode: 749354202462

Warranty

• Warranty: 3 Years
