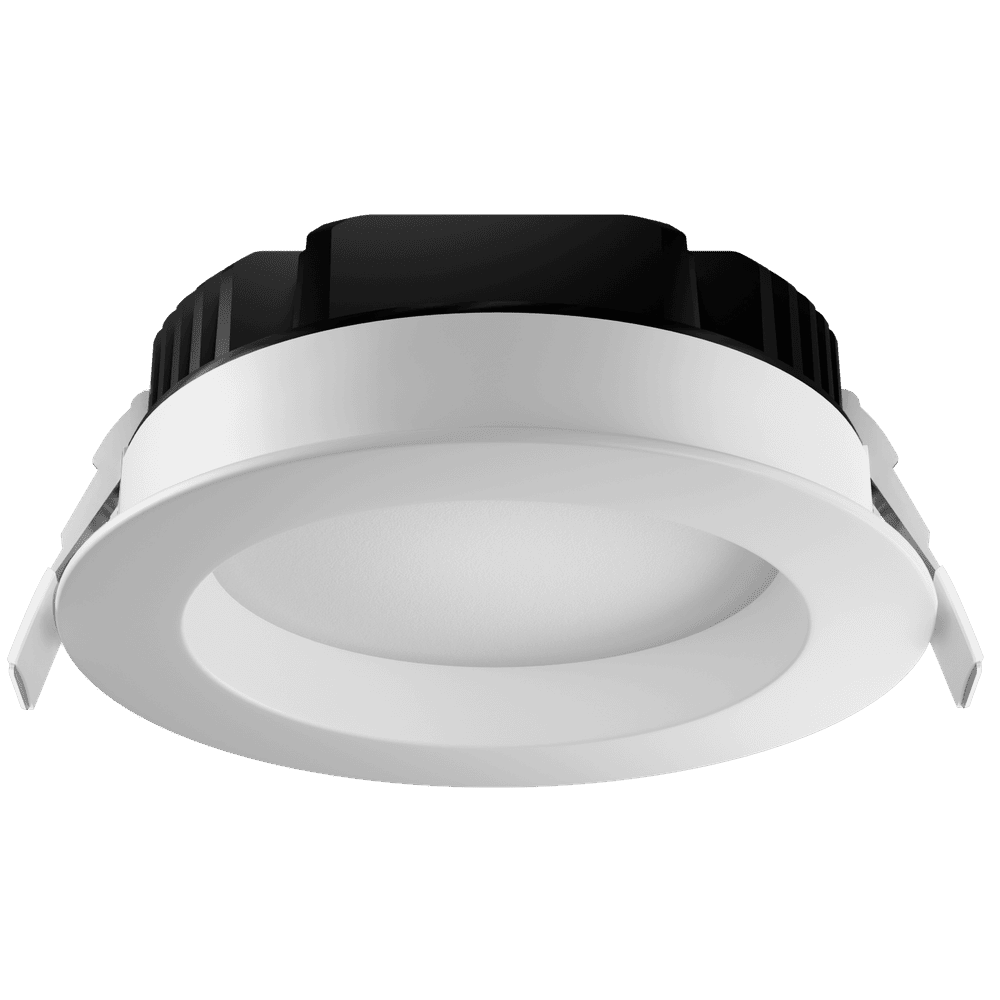

Regulus 6" Round Regress Slim LED Downlight – Selectable 10W/18W/28W, 5CCT, Wet Location

The Regulus 6-inch Round Regress Slim LED Downlight delivers powerful illumination with a modern architectural design, making it an excellent solution for residential and commercial recessed lighting applications. The regressed light source design helps reduce glare while providing a refined and professional ceiling appearance.

This versatile LED downlight features selectable wattage (10W, 18W, or 28W), allowing installers to adjust the fixture’s brightness to match the specific lighting requirements of the space. With lumen outputs ranging from 950 to 2700 lumens, it provides dependable illumination for a variety of environments including living rooms, kitchens, offices, retail spaces, hospitality settings, and corridors.

For additional flexibility, the fixture offers 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), enabling users to easily customize the ambiance from warm residential lighting to bright commercial lighting. Its high color rendering index (CRI >90) ensures accurate color reproduction, enhancing the visual quality of interiors.

The 100° beam spread ensures wide, even light distribution for general lighting applications. The fixture also supports Triac and 0–10V dimming, giving designers and installers flexible brightness control for both residential dimmers and commercial lighting systems.

Designed for durability and easy installation, the downlight uses a clip-in mounting system that allows fast and secure installation into ceilings. It is IC Rated and Wet Location Rated, making it suitable for bathrooms, kitchens, soffits, and insulated ceilings.

Certified ETL Listed and Title 24 compliant, and backed by a 3-year warranty, the Regulus 6" Round Regress Slim LED Downlight provides a reliable, energy-efficient lighting solution for modern architectural spaces.

Technical Specifications

General Specifications

• Product Name: Regulus 6" Round Regress Slim LED Downlight

• Product Code: G-20243

• Model: RS6/28W/R/LED/5CCT

• Shape: Round

• Style: Regressed / Trimmed

• Size: 6 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

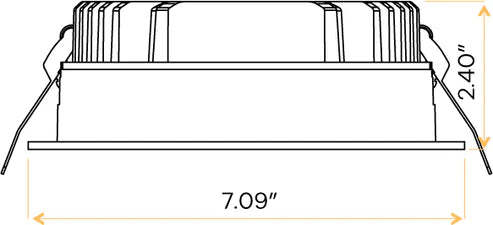

Dimensions

• Cutout Size: 6.29"

• Outside Dimension (OD): 7.09"

• Height: 2.40"

Mounting

• Installation Type: Clip-in

Light Performance

• Selectable Wattage: 10W / 18W / 28W

• Lumens: 950 / 1750 / 2700 lm

• CRI: >90

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Angle: 100°

Electrical Specifications

• Input Voltage: 120–277V

• Output Current: 750mA

• Dimming: Triac or 0–10V Dimming Compatible

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 12 Units

• Barcode: 749354202431

Warranty

• Warranty: 3 Years
