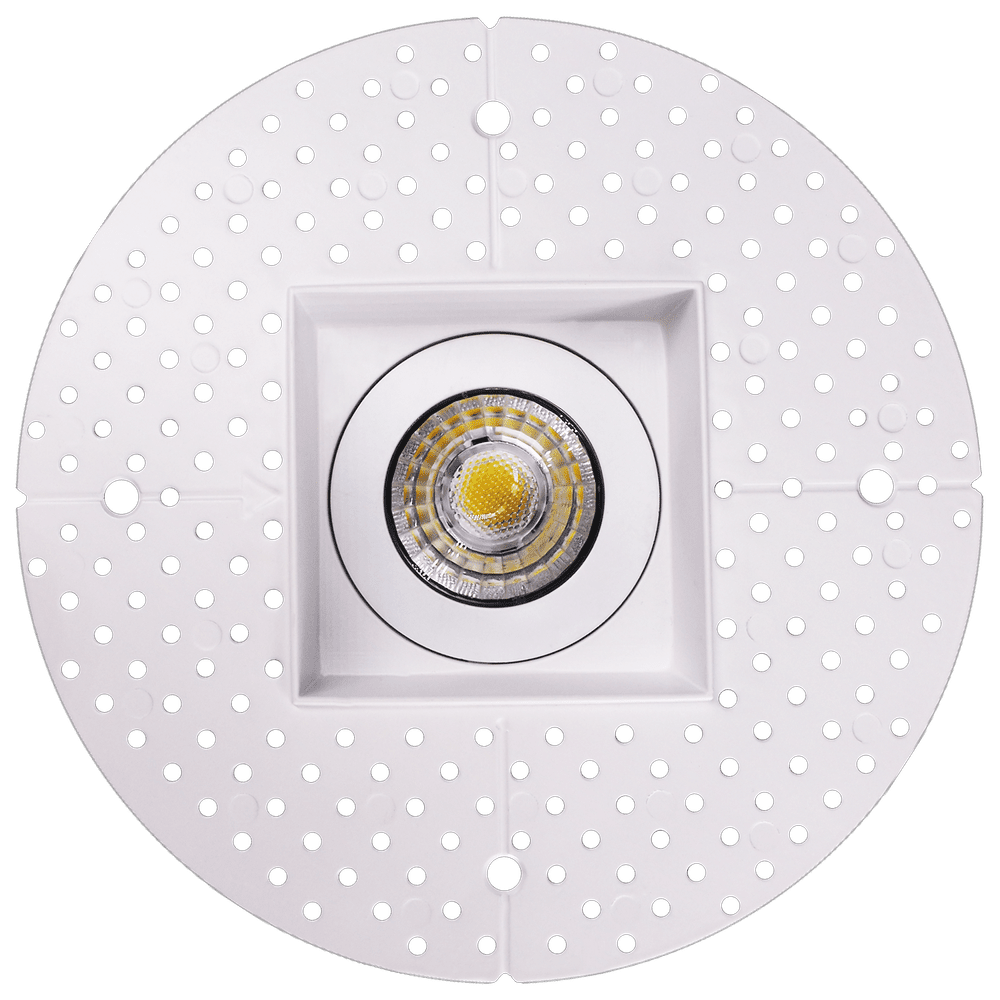

3.5 inch square trimless LED luminaire with mud-in installation available in white and black finishes
3.5 inch square trimless LED luminaire with mud-in installation available in white and black finishes
3.5 inch square trimless LED luminaire with mud-in installation available in white and black finishes

Goodlite Lighting 3.5″ Square Trimless LED Downlight | 850Lm | 120V | CCT Selectable | Saturn Series | Goodlite G-20233/34

$115.50 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

FCC Certified ETL Certified

The 3.5” Square Trimless LED Luminaire is a compact, architecturally refined lighting solution designed to deliver a seamless, modern ceiling appearance. Featuring a trimless mud-in design, this luminaire installs flush with drywall, eliminating visible trim and creating a clean, minimalist aesthetic ideal for high-end residential and commercial interiors.

Available in White or Black finishes, this fixture provides design flexibility to match a variety of ceiling styles and architectural themes. The square 3.5-inch aperture offers a balanced visual presence while delivering efficient, focused illumination for ambient, task, or accent lighting applications.

Equipped with 5-CCT selectable technology (2700K–5000K), installers can easily adjust color temperature on-site, reducing SKU complexity and ensuring the perfect lighting tone for any space. With 850 lumens, CRI greater than 90, and a 40° beam spread, this luminaire delivers accurate color rendering and comfortable light distribution.

Engineered for performance and reliability, the 3.5” square trimless luminaire is wet-location rated, IC rated, and operates on 120V systems with Triac dimming for smooth, flicker-free control. The mud-in mounting system makes it ideal for new construction projects requiring a seamless architectural finish.

Technical Specifications

General

  • Fixture Type: Square Trimless LED Luminaire

  • Product Codes:

    • White: G-20233

    • Black: G-20234

  • Description: R3.5/12W/SQ/LED/TL/5CCT (B for Black)

  • Shape: Square

  • Style: Trimless

  • Size: 3.5 Inch

  • Available Finishes: White, Black

  • Diffuser: Clear

  • Number of Lights: 1

  • Mounting: Mud-In

Dimensions

  • Cutout Size: Square 3.40" / Round 4.65"

  • Outside Dimensions (OD): 7.87"

  • Height: 3.55"

Lighting Performance

  • Wattage: 12W

  • Lumens: 850

  • Color Temperature: Selectable CCT

  • CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

  • CRI: >90

  • Beam Angle: 40°

Electrical

  • Voltage: 120V

  • Output Current: 270mA

  • Dimming: Triac

Compliance & Ratings

  • Location Rating: Wet Location

  • IC Rated: Yes

  • Certifications: ETL Listed

  • Warranty: 3 Years

Packaging

  • Master Pack: 18 (Each Finish)

  • Barcodes:

    • White: 749354202332

    • Black: 749354202349
