Goodlite Lighting 2" HO Interchangeable Module LED Downlight | 1,200Lm Max | CCT Selectable | Goodlite G-20215

$85.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

FCC Certified ETL Certified

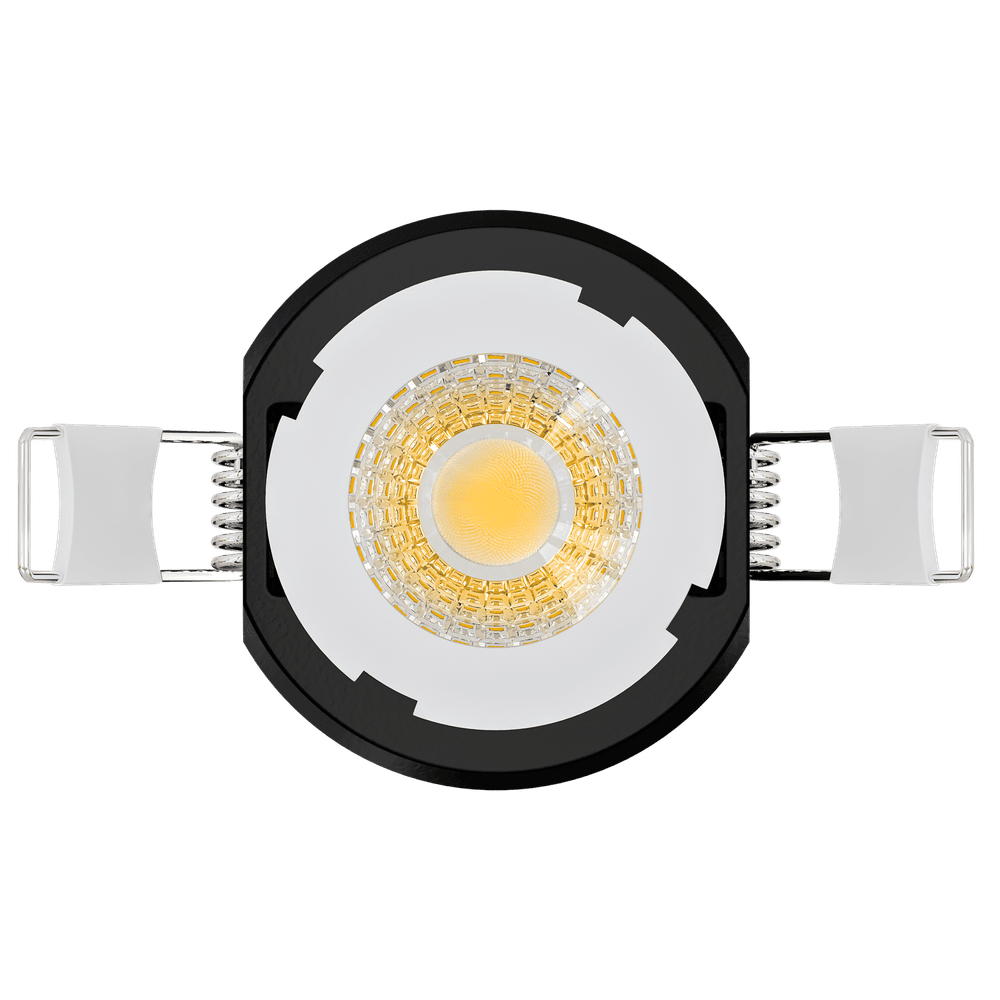

Deliver precision, high-output architectural illumination from a discreet footprint with the Aster 2" 8/14W HO Interchangeable LED Module (Model G-20215, Ordering Code: M2/14W/WS2/LED/5CCT). Engineered as a versatile 2-inch LED engine, this module features an interchangeable optics system equipped with a default clear diffuser lens and a wide 60° beam angle. Built with universal mounting compatibility, it provides flexible, low-glare downlighting ideal for high-end residential, commercial, office, and hospitality applications.

Featuring dual-wattage versatility, this module offers adjustable power output at 8W generating 750 lumens or 14W generating a high-output 1200 lumens. It operates across universal line voltages (120-277V AC with 190mA / 310mA output current) and supports dual dimming protocols (TRIAC phase-cut and commercial 0-10V dimming down to 5%). Installers can easily customize light quality on site using the field-selectable 5-CCT color switch (2700K, 3000K, 3500K, 4100K, and 5000K) plus Dim-to-Warm (DTW, 2600K - 1800K) mode, all backed by exceptional color rendering (CRI >90). Built to meet strict safety and code standards, it is IC Rated, FT6 Plenum Rated, Wet Location Rated, California Title 24 Listed, ETL Certified, and backed by a 3-year warranty.

Key Features:

  • Selectable Wattage & High-Output Lumens: Field-adjustable between 8W (750 Lumens) and 14W (1200 Lumens) for tailored performance from a compact 2-inch profile.

  • 5-CCT + Dim-to-Warm Selectable: Toggle between 2700K, 3000K, 3500K, 4100K, and 5000K CCTs, or select Dim-to-Warm (2600K to 1800K) for ambient warmth when dimmed.

  • Interchangeable Optics System: Modular 2-inch architectural light engine featuring a default clear diffuser lens with a 60° beam spread.

  • Universal 120-277V Input: Connects smoothly to standard 120V residential and 277V commercial power distribution (190mA / 310mA output current).

  • Dual Dimming Protocol: Supports standard TRIAC forward-phase and commercial 0-10V control systems (100% to 5%).

  • Safety & Code Compliance: IC Rated for direct insulation contact, FT6 Plenum Rated, Wet Location Rated, California Title 24 Listed, and ETL Certified.

Technical Specification Table

Technical Specification Product Details (G-20215 Profile)
Product Model / SKU G-20215
Ordering Code M2/14W/WS2/LED/5CCT
Product Line / Series Aster High-Output (HO) Interchangeable LED Series
Nominal Module Size 2.00 Inch
Primary Optics & Diffuser Clear Diffuser Lens (Default)
Mounting Style Universal Mounting
Power Consumption Selectable 8W / 14W
Input Voltage Range 120-277V AC
Output Current 190mA (at 8W) / 310mA (at 14W)
Luminous Output 750 Lumens (at 8W) / 1200 Lumens (at 14W)
Color Rendering Index (CRI) CRI >90 (High Color Fidelity)
Beam Spread Angle 60° Optics (Default)
Selectable CCT Options 5CCT (2700K / 3000K / 3500K / 4100K / 5000K) + Dim-to-Warm (2600K - 1800K)
Dimming Protocol / Range Dual TRIAC & 0-10V Dimming (100% - 5%)
Plenum Safety Rating FT6 Rated
Environmental Protection Wet Location Rated
Insulation Contact Rating IC Rated
Regulatory Compliance ETL Listed, California Title 24 Listed
Manufacturer Warranty 3-Year Warranty

Packaging & Logistics Specifications

  • Individual Barcode / UPC: 749354202158

  • Master Case Pack Quantity: 18 Units per Master Pack
