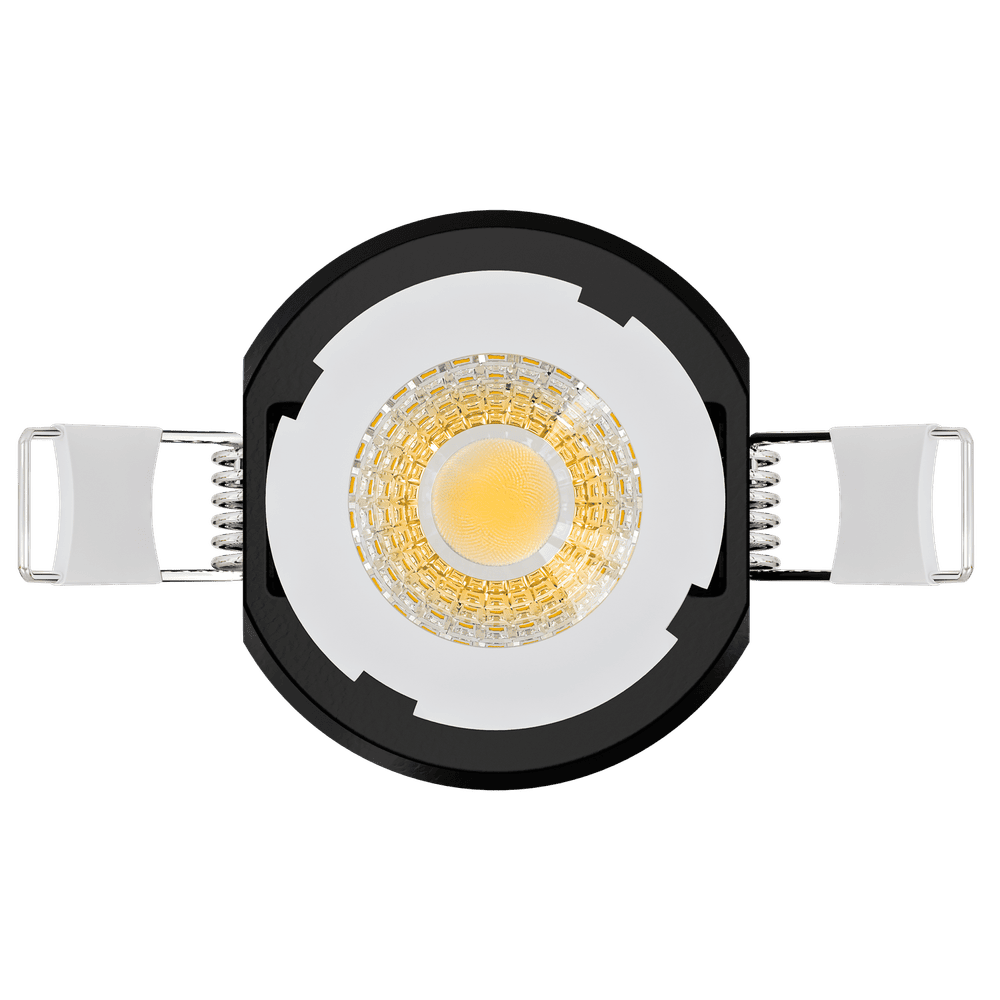

2" HO Interchangeable Module LED Downlight | 1,700Lm Max | CCT Selectable | Goodlite G-20213

Deliver high-performance, precision downlighting from an ultra-compact aperture with the Aster 2" 14/20W HO Interchangeable LED Module (Model G-20213, Ordering Code: M2/20W/WS2/LED/5CCT). Designed as a powerful 2-inch LED engine for minimalist architectural layouts, this module features an interchangeable optics system with a default clear diffuser lens and a wide 60° beam angle. Engineered with universal mounting compatibility, it is ideal for high-end residential, commercial, office, and hospitality applications where powerful output is required from a discrete ceiling opening.

Featuring selectable wattage versatility, this high-output (HO) module allows installers to choose between 14W generating 1200 lumens or 20W generating an impressive 1700 lumens. It operates across universal commercial voltages (120-277V AC with 310mA / 460mA output current) and supports dual dimming flexibility (TRIAC phase-cut and commercial 0-10V dimming from 100% down to 5%). Installers can tailor the color atmosphere on site via the field-selectable 5-CCT color switch (2700K, 3000K, 3500K, 4100K, and 5000K) backed by excellent color rendering (CRI >90). Built to meet demanding commercial safety and energy standards, the module is FT6 Plenum Rated, Wet Location Rated, IC Rated (at the 14W setting), California Title 24 Listed, ETL Certified, and backed by a 3-year warranty.

Key Features:

• Selectable Wattage & High-Output Lumens: Field-adjustable between 14W (1200 Lumens) and 20W (1700 Lumens) for high-lumen illumination from a micro 2-inch footprint.

• 5-CCT Field Selectable: Easily switch between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures on site.

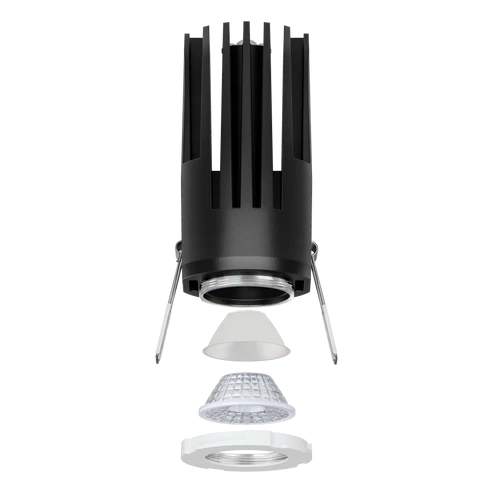

• Interchangeable Optics System: Modular 2-inch architectural light engine featuring a default clear diffuser lens with a 60° beam spread.

• Universal 120-277V Input: Connects smoothly to standard 120V residential circuits and 277V commercial voltage networks (310mA / 460mA output current).

• Dual Dimming Protocol: Supports standard TRIAC forward-phase and commercial 0-10V dimming systems (100% to 5%).

• Safety & Code Compliance: Features FT6 Plenum Rated construction, Wet Location Rating, IC Rating (when operated at the 14W setting), California Title 24 Listing, and ETL Certification.

Technical Specification Table

Packaging & Logistics Specifications

• Individual Barcode / UPC: 749354202134

• Master Case Pack Quantity: 18 Units per Master Pack
