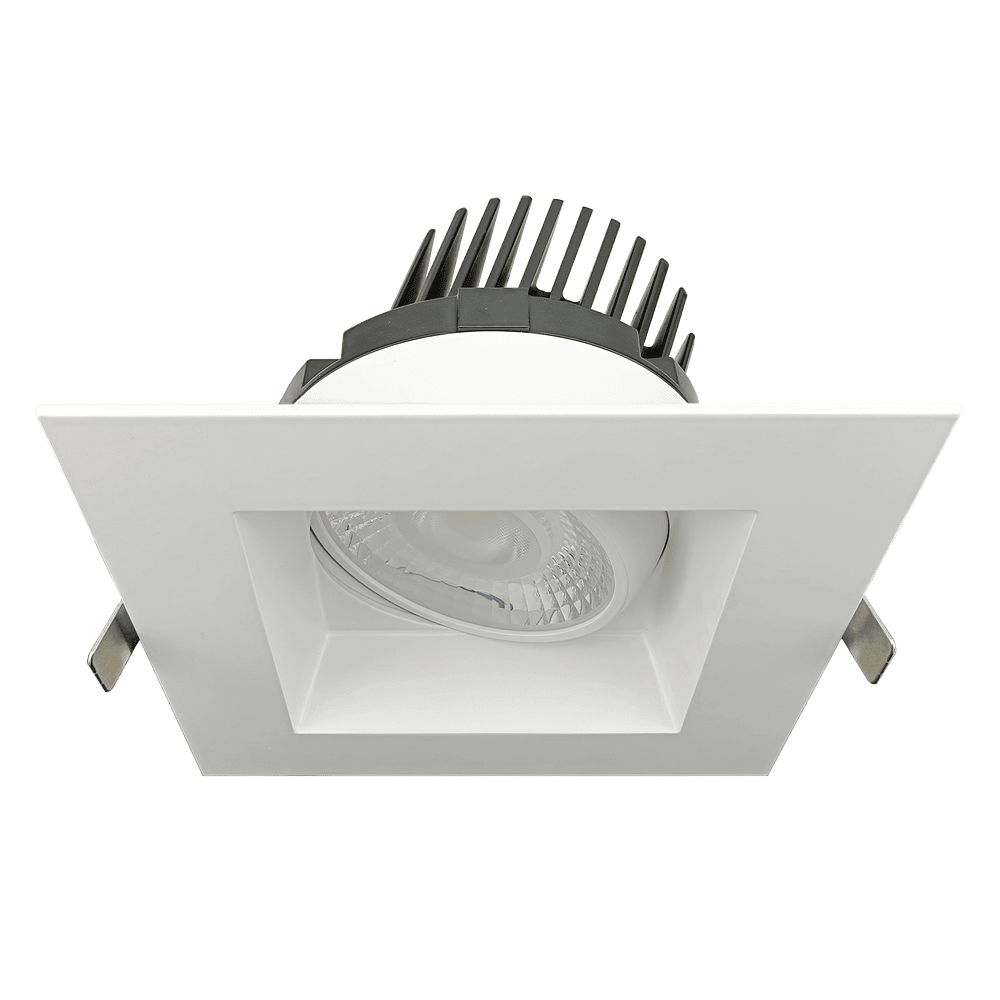

6" Square Regress Gimbal LED Downlight | 2.200Lm | 120/277V | CCT Selectable | Saturn Series | Goodlite G-20094/96

The Saturn 6" Square Regress Gimbal LED Downlight is a high-output, architecturally refined recessed lighting solution designed to deliver precision adjustability and powerful illumination. Available in White or Black finishes, this fixture offers design flexibility to complement both minimalist and bold ceiling aesthetics across residential and commercial spaces.

Featuring a square trimmed regress design, the Saturn gimbal minimizes glare while maintaining a clean, modern appearance. The adjustable gimbal mechanism provides 30° tilt and 360° rotation, allowing precise directional control for accent lighting, wall washing, and feature highlighting.

Equipped with 5-CCT selectable technology (2700K–5000K), installers can easily adapt color temperature on-site, reducing inventory complexity. With a robust 2200-lumen output, 90+ CRI, and a 60° beam spread, this downlight delivers bright, uniform light with excellent color accuracy.

Designed for versatility and code compliance, the Saturn 6" square regress gimbal is wet-location rated, IC rated, and compatible with 120–277V systems. It supports both Triac and 0–10V dimming, ensuring smooth, flicker-free dimming performance. The clip-in mounting system enables fast, secure installation in new construction or retrofit applications.

Technical Specifications

General

• Brand: Saturn

• Product Codes:

  • White: G-20094

  • Black: G-20096

• Description: R6/22W/GRS/LED/5CCT (BK for Black)

• Shape: Square

• Style: Trimmed Regress Gimbal

• Size: 6 Inch

• Available Finishes: White, Black

• Diffuser: Clear

• Number of Lights: 1

• Mounting: Clip-In

Dimensions

• Cutout Size: Square 6.00" / Round 6.80"

• Outside Dimensions (OD): 7.16"

• Height: 4.72"

Lighting Performance

• Wattage: 22W

• Lumens: 2200

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI: 90+

• Beam Angle: 60° (Default)

• Tilt Angle: 30°

• Rotation: 360°

Electrical

• Voltage: 120–277V

• Output Current: 500mA

• Dimming: Triac or 0–10V

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certifications: ETL Listed, Title 24 Compliant

• Warranty: 3 Years

Packaging (White Finish)

• Master Pack: 6

• Barcode: 749354200949
