Saturn 6" Round Regressed LED Gimbal Downlight – White & Black Finishes

The Saturn 6” Round Regressed LED Gimbal Downlight is a high-performance recessed lighting solution designed to deliver powerful illumination, visual comfort, and directional flexibility for residential and commercial applications. Its regressed light engine reduces glare while maintaining a strong, uniform beam, making it ideal for spaces where comfortable and controlled lighting is essential.

With 2200 lumens of output at only 22 watts, this fixture offers excellent energy efficiency while maintaining high-quality illumination. The integrated 5CCT selectable technology allows installers to easily choose the desired color temperature during installation, ensuring the perfect lighting tone for any environment.

Available in White (G-20093) and Black (G-20095) finishes, the Saturn gimbal downlight blends seamlessly into modern architectural ceilings while providing precise aiming capability through its 360° rotation and 30° tilt adjustment.

The Saturn 6-inch Regressed LED Gimbal Downlight is engineered for projects that require high lumen output, adjustable beam direction, and architectural-grade aesthetics. The regressed design positions the LED light source deeper inside the housing, minimizing glare and producing a more comfortable and refined lighting effect.

Its adjustable gimbal mechanism allows designers, contractors, and installers to direct the light precisely where it is needed—perfect for highlighting architectural features, artwork, merchandise displays, or focal points within a room.

The fixture includes selectable color temperature technology (5CCT), enabling quick adjustments between warm and cool lighting tones without replacing the fixture. This flexibility makes the Saturn series an excellent solution for multi-purpose spaces, renovations, and new construction projects.

Built with wet-location rating and IC-rated housing, the fixture is suitable for installation in insulated ceilings as well as moisture-prone environments such as bathrooms, covered patios, and soffits.

Key Lighting Features

• High Output: 2200 Lumens

• Power Consumption: 22W LED

• Selectable Color Temperature (5CCT):

  • 2700K – Warm White

  • 3000K – Soft White

  • 3500K – Neutral White

  • 4100K – Cool White

  • 5000K – Daylight

• CRI: >90 for accurate color rendering

• Beam Angle: 60° (default)

• Tilt Adjustment: 30°

• Rotation: 360°

• Clear diffuser for crisp beam control

Electrical Specifications

• Wattage: 22W

• Voltage: 120–277V universal input

• Output Current: 500mA

• Dimming Compatibility:

  • Triac dimming

  • 0–10V dimming

This dual dimming capability allows compatibility with residential dimmers and commercial lighting control systems.

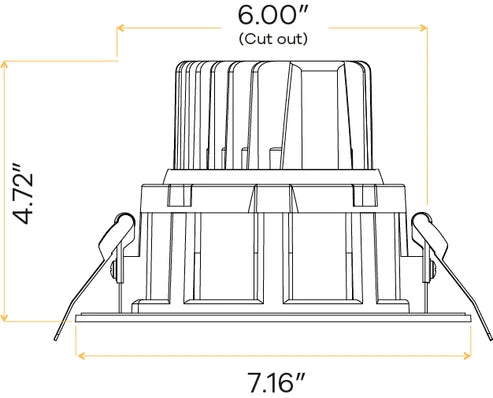

Fixture Dimensions & Installation

• Fixture Size: 6 Inch

• Ceiling Cutout: 6.00"

• Outside Diameter: 7.16"

• Height: 4.72"

• Mounting Type: Clip-in installation

• Number of Lights: 1

The clip-in mounting system allows for quick and secure recessed installation, making it ideal for both retrofit and new construction applications.

Certifications & Compliance

• Wet Location Rated

• IC Rated – safe for insulated ceilings

• ETL Listed

• Title 24 Compliant

• 3-Year Manufacturer Warranty

These certifications ensure compliance with modern electrical safety and energy efficiency standards.

Available Finishes

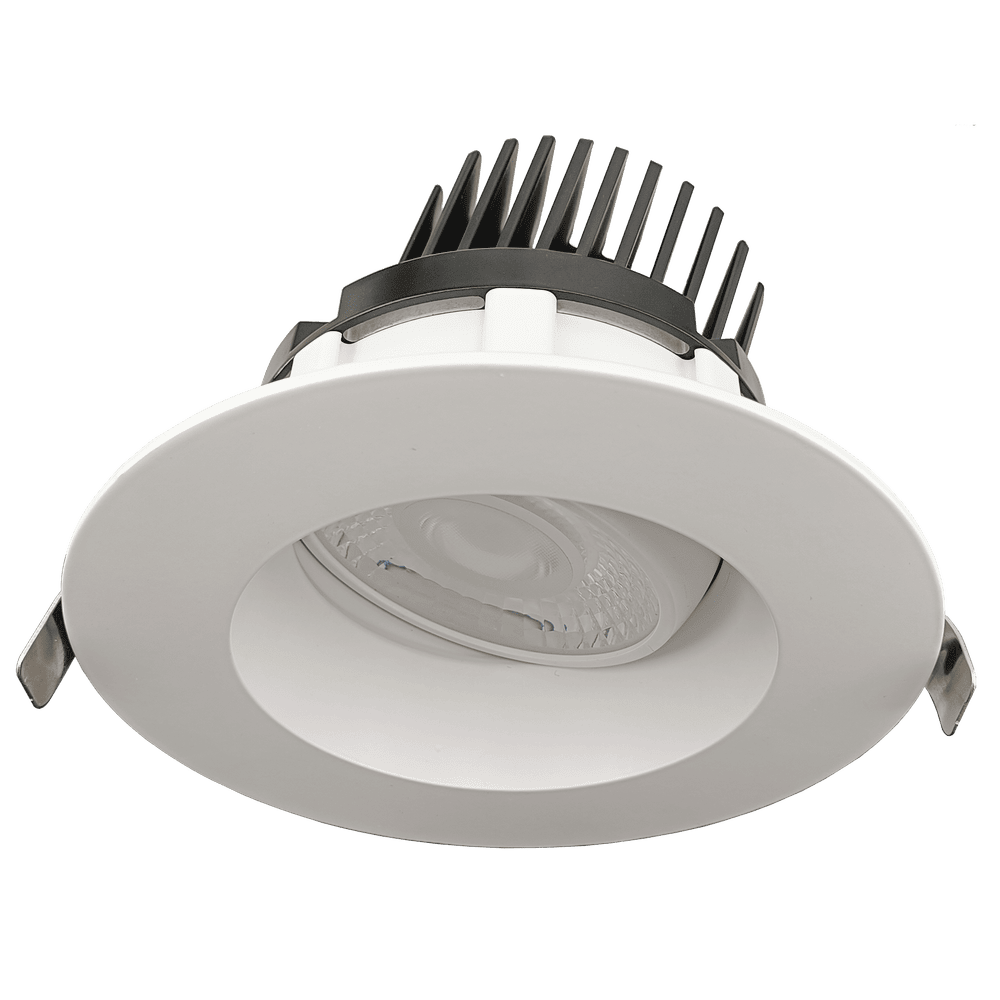

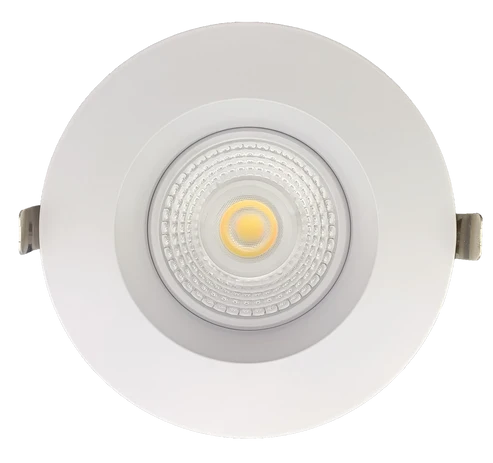

White Finish

• Product Code: G-20093

• Description: R6/22W/GRR/LED/5CCT

• Barcode: 749354200932

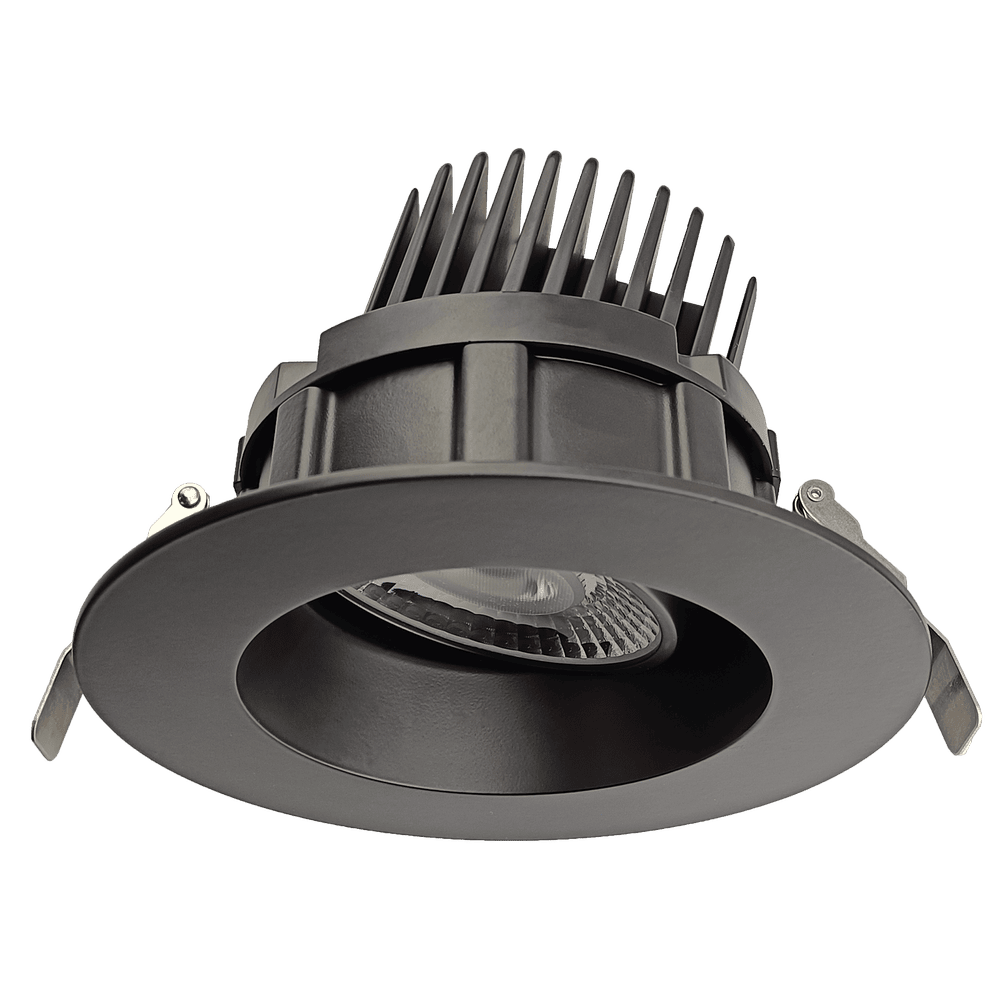

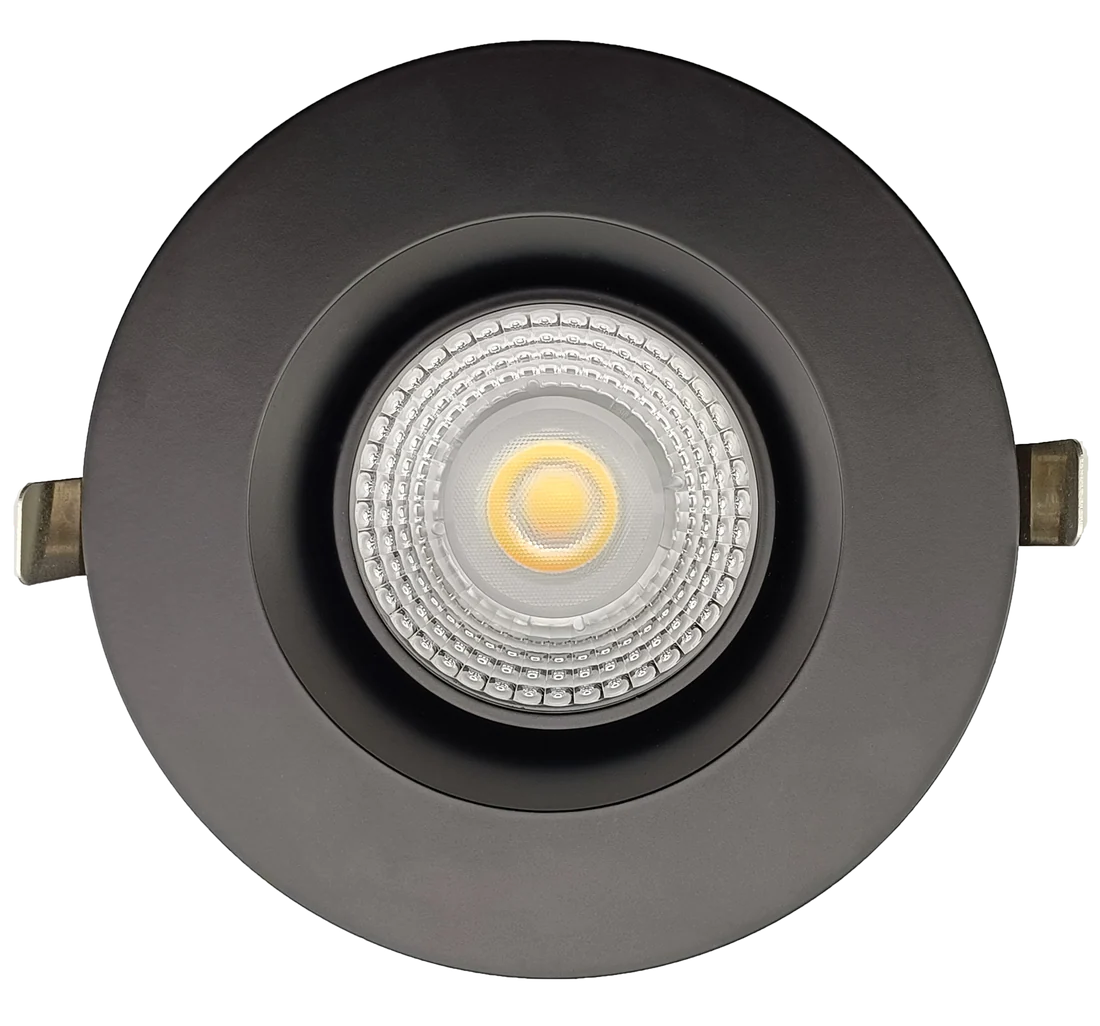

Black Finish

• Product Code: G-20095

• Description: R6/22W/GRR/LED/5CCT BK

• Barcode: 749354200956

Both finishes are designed to complement modern architectural lighting designs and contemporary ceiling aesthetics.

Ideal Applications

The Saturn 6” adjustable gimbal downlight is ideal for:

• Residential recessed lighting

• Living rooms and kitchens

• Retail and display lighting

• Hospitality and restaurant environments

• Bathrooms and wet locations

• Hallways and entryways

• Commercial architectural lighting
