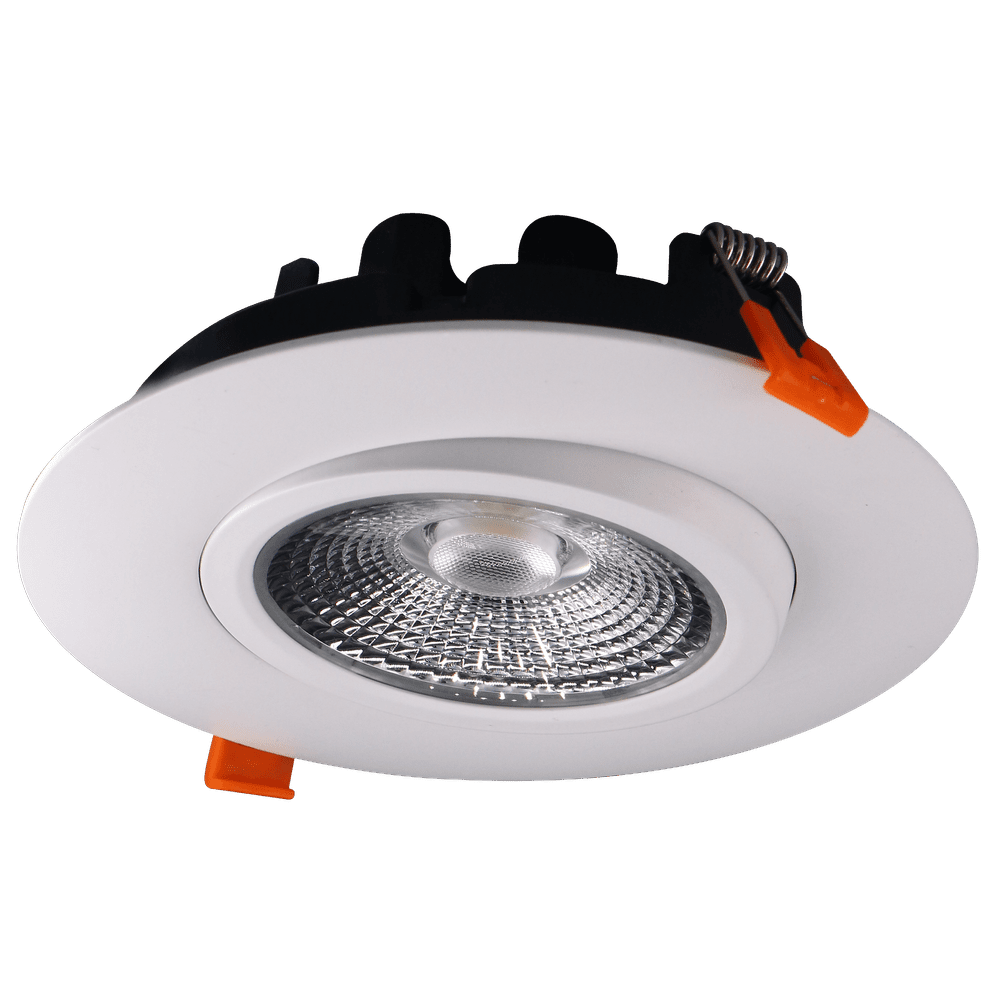

Deliver seamless directional lighting and modern low-profile aesthetics with the Saturn 6" Round Flushed Gimbal LED Recessed Downlight Series. Designed for residential, retail, and commercial environments, this fixture features a flush-mounted gimbal module with full 360° horizontal rotation and a 30° vertical tilt angle, giving you total control to aim light precisely—whether highlighting artwork, creating accent walls, or compensating for sloped ceilings—with a focused 40° beam spread.
Consuming 18W, the unit delivers 1400 lumens with a high color rendering index (CRI >90) for accurate, vibrant color representation. An integrated 5-CCT Field Selectable switch allows effortless on-site color temperature tuning (2700K, 3000K, 3500K, 4100K, and 5000K) via the remote junction box.
Designed for easy shallow-ceiling installations with a slim 2.16" height profile, the fixture operates on 120V AC input with smooth Triac dimming capability (100% to 5%). Featuring a crisp White (G-20004) finish, it mounts into 6.25" ceiling cutouts using heavy-duty clip-in spring tabs. Certified ETL Listed, fully IC Rated for direct contact with insulation, approved for Wet Locations, and backed by a 3-year warranty.
Key Features:
360° Rotation & 30° Tilt Gimbal: Full rotational freedom and 30° tilt angle provide flexible directional aiming for wall washing or accent lighting.
Low-Profile Flushed Design: Slim 2.16" fixture height fits easily into tight ceiling spaces without sacrificing light control.
5-CCT Field Selectable: Easily customize color temperature on-site between 2700K, 3000K, 3500K, 4100K, and 5000K.
High CRI >90 Performance: 18W fixture delivers 1400 lumens with excellent color accuracy.
120V Triac Dimming: Smooth dimming control from 100% down to 5% on standard triac dimmers.
IC & Wet Location Rated: Approved for damp/wet areas and direct insulation contact; ETL Listed with a 3-year warranty.
| Technical Specification | White 6" Round Flushed Gimbal |
| Product Code | G-20004 |
| Description Code | R6/18W/GR/LED/5CCT |
| Finish | White |
| Shape & Style | Round Trimmed Flushed Gimbal |
| Diffuser | Clear |
| Head Count | 1 Light Module |
| Wattage | 18W |
| Lumen Output | 1400 Lumens |
| Selectable CCT | 27, 30, 35, 41, 50K |
| CRI | CRI >90 |
| Beam / Optics | 40° Beam Spread / 30° Tilt / 360° Rotation |
| Input Voltage | 120V AC |
| Output Current | 450mA |
| Dimming Type & Range | Triac Dimming (100% - 5%) |
| Cutout Dimension | 6.25" |

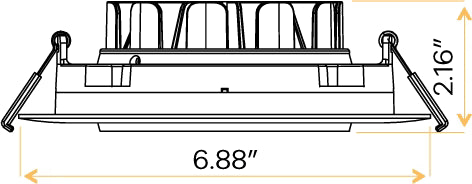

| Outside Dimension (OD) | 6.88" |
| Fixture Height | 2.16" |
| Mounting Type | Clip-in |
| Location Rating | Wet Location |
| IC Rating | Yes (IC Rated) |
| Classifications & Warranty | ETL Listed / 3-Year Warranty |
Master Pack Quantity: 12 Pieces
Barcode: 749354200048
Included Accessories: Integrated Remote Junction Box / Driver & Heavy-Duty Clip-In Spring Clips
