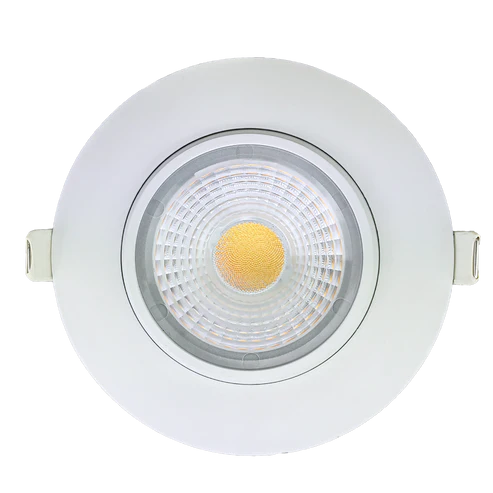

Achieve directional lighting and sleek architectural integration with the Saturn 4" Round Flushed Gimbal LED Recessed Light. Designed with a clean white trimmed finish and a clear diffuser, this versatile fixture allows for precise optical positioning thanks to its 360° rotation and 23° tilt angle. Delivering a focused 40° default beam spread, it provides targeted accent and general illumination for commercial, residential, and multi-family applications.
Featuring 5-CCT Selectability, contractors and homeowners can toggle between 2700K, 3000K, 3500K, 4100K, and 5000K to match any space's color ambient requirement. Consuming just 14W while delivering a bright 1100 lumens (CRI >90), it provides exceptional energy efficiency and true-to-life color rendering. The fixture operates on a universal 120-277V input and supports smooth continuous dimming (100% to 5%) via Triac or 0-10V dimming protocols.
Engineered for safety and simple installation, the unit features an IC-rated housing approved for direct contact with insulation and a spring-loaded clip-in mounting system fitting a standard 4.00" cutout. Certified ETL and Title 24 Listed, and Wet Location rated, it is suitable for indoor rooms, high-humidity environments, covered outdoor soffits, and showers.
Key Features:
360° Rotation & 23° Tilt: Adjustable gimbal optic allows precise directional targeting with a focused 40° default beam spread.
5-CCT Field Selectable: Customize color temperature between 2700K, 3000K, 3500K, 4100K, and 5000K on-site.
Universal Voltage & Dimming: Operates on 120-277V AC with Triac or 0-10V dimming capabilities (100–5% range).
IC & Wet Location Rated: Safe for direct insulation contact and approved for wet environments, covered patios, and showers.
Compact Clip-In Design: Fast spring-clip mounting into standard 4.00" cutouts with an ultra-clean 5.03" outside diameter profile.
Energy Code Compliant: ETL listed, Title 24 compliant, CRI >90, and backed by a 3-year warranty.
| Technical Specification | Product Details Profile |
| Product Code | G-20001 |
| Description Code | R4/14W/GR/LED/5CCT |
| Fixture Shape & Style | 4" Round / Trimmed Flushed Gimbal |
| Finish & Diffuser | Matte White Finish / Clear Diffuser |
| Cutout Dimensions | 4.00" Cutout |

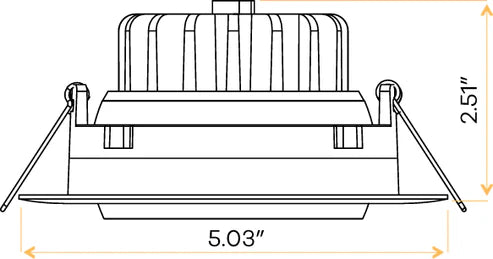

| Outside Dimensions (OD) & Height | 5.03" OD x 2.51" Height |
| Wattage | 14W |
| Lumen Output | 1100 Lumens |
| Selectable CCT Options | 5-CCT (2700K / 3000K / 3500K / 4100K / 5000K) |
| Color Rendering Index (CRI) | CRI >90 |
| Beam Spread / Optics | 40° Default Beam Spread / 23° Tilt / 360° Rotation |
| Input Voltage | 120-277V AC |
| Output Current | 330mA |
| Dimming Protocol & Range | Triac or 0-10V Continuous Dimming (100% - 5%) |
| Mounting Type | Spring Clip-In |
| Environment & Location Rating | Wet Location Rated / IC Rated (Direct Contact with Insulation) |
| Certifications & Compliance | ETL Listed, Title 24 Listed |
| Warranty | 3-Year Limited Warranty |
Master Pack Quantity: 18 Pieces
UPC / Barcode: 749354200017
Included Accessories: Integrated LED Driver & Clip-In Spring Mechanism
