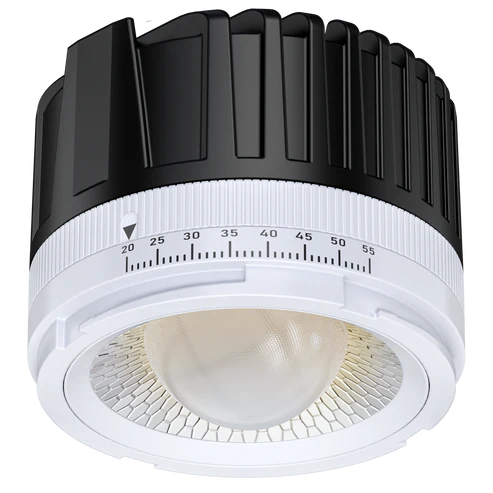

4 Inch Beam Adjustable Module LED Downlight | 1.400Lm | 120/277V | CCT Selectable | Aster Series | Goodlite G-10011

The Aster 4 Inch 14W Beam Adjustable LED Module is a high-performance interchangeable recessed lighting engine designed for precision lighting control, energy efficiency, and architectural flexibility. Engineered for compatibility with Aster 4-inch recessed trim systems, this adjustable module allows beam tuning from 20° to 55°, making it ideal for accent lighting, task lighting, and general illumination across residential, commercial, and hospitality applications.

The M4/14W/ADJ/LED/5CCT module features selectable color temperatures ranging from 2700K to 5000K, giving designers and installers full control over lighting ambiance. Whether a warm residential tone or a crisp commercial white is required, this module adapts easily to different project requirements without fixture replacement.

Delivering approximately 1400 lumens at 14W, this module provides strong, efficient illumination with a high CRI >90, ensuring accurate color rendering and natural visual clarity. This makes it especially suitable for retail environments, galleries, offices, hotels, and modern residential interiors where lighting quality is critical.

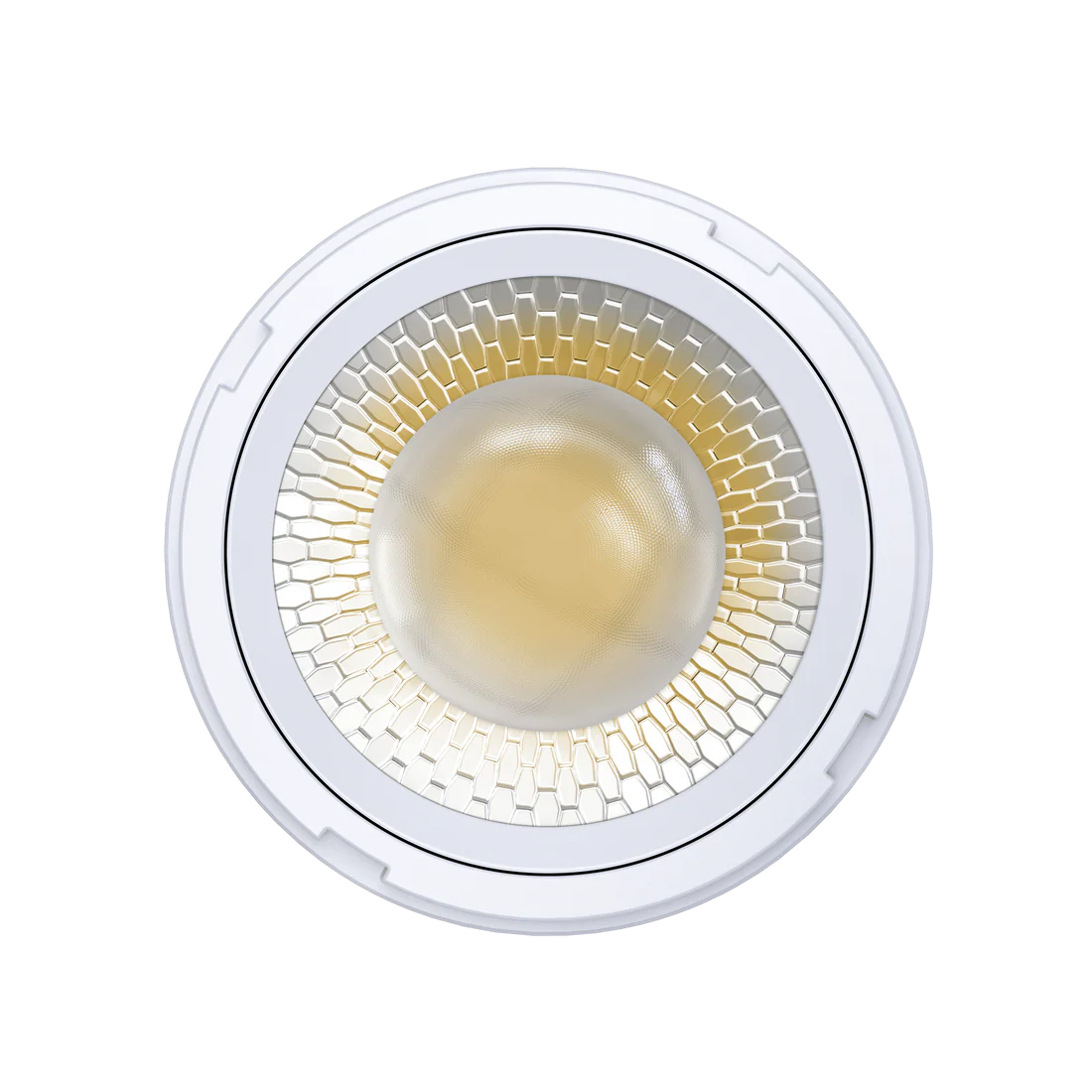

The adjustable optical system provides flexible beam shaping from narrow to wide distribution, allowing a single module to replace multiple fixed-beam fixtures. This reduces inventory complexity while giving lighting designers greater control over focal points and ambient distribution.

Designed for universal integration, the module operates on 120–277V input voltage and supports both Triac and 0–10V dimming systems, enabling compatibility with a wide range of residential and commercial lighting controls. Its IC-rated and wet-location listed design ensures safe installation in insulated ceilings and moisture-prone environments, expanding its versatility across multiple installation scenarios.

Built for compliance and performance, the module features FT6 plenum-rated wiring, ensuring suitability for air-handling spaces and strict building code requirements. It is also fully ETL listed and Title 24 compliant, meeting essential energy efficiency and safety standards for modern construction projects.

The Aster 4 Inch 14W Beam Adjustable LED Module combines precision beam control, selectable CCT flexibility, and high-performance illumination, making it an ideal solution for professional architectural lighting applications requiring adaptability and lighting precision.

Technical Specifications

Brand: Aster
Product Code: G-10011
Description: M4/14W/ADJ/LED/5CCT

General Specifications

• Size: 4 Inch
• Diffuser: Clear
• Number of Light Sources: 1
• Mounting Type: Universal

Light Specifications

• Wattage: 14W
• Lumens: 1400 lm
• Color Temperature (CCT): 2700K / 3000K / 3500K / 4100K / 5000K
• Beam Angle: Adjustable 20°–55°
• CRI: >90

Electrical Specifications

• Voltage: 120–277V
• Output Current: 330mA
• Dimming: Triac or 0–10V
• Plenum Rated: FT6
• Wet Location Rated: Yes
• IC Rated: Yes

Compliance & Warranty

• ETL Listed
• Title 24 Compliant
• 3-Year Warranty

Packaging Information

• Master Pack: 18
• Barcode: 990379100114
