Goodlite Lighting 4" Interchangeable Module LED Downlight | 1,100Lm | CCT Selectable | Goodlite G-10010

$98.50 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

FCC Certified ETL Certified

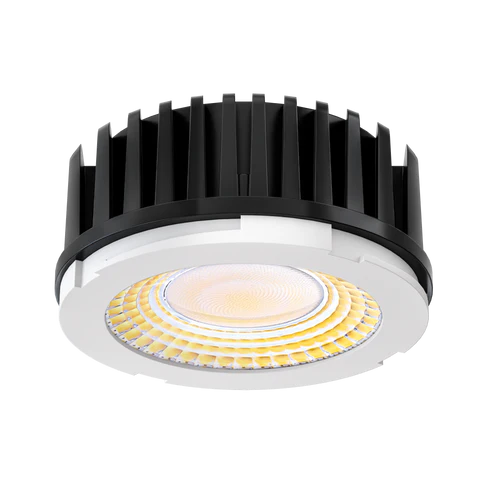

Upgrade your commercial or high-end residential lighting system with the Aster 4" 12W LED Interchangeable Module (Model G-10010, Ordering Code: M4/12W/LED/5CCT). Engineered for exceptional performance and architectural versatility, this 4-inch LED engine features an interchangeable optics module system with a default clear diffuser lens and a standard 40° beam angle. Designed with universal mounting compatibility, it provides clean, low-glare illumination ideal for general recessed lighting, hospitality spaces, offices, and multi-family developments.

Delivering a bright 1100 lumens at only 12W, this module operates across a multi-voltage 120-277V input range (270mA output) with dual-dimming flexibility (TRIAC and 0-10V dimming down to 5%). It offers field-selectable 5-CCT color tuning (2700K, 3000K, 3500K, 4100K, and 5000K) plus integrated Dim-to-Warm (DTW) modes, all backed by high color accuracy (CRI >90). Built to withstand demanding field applications, the module is IC Rated, Wet Location Rated, FT6 Plenum Rated, and backed by a 3-year warranty.

Key Features:

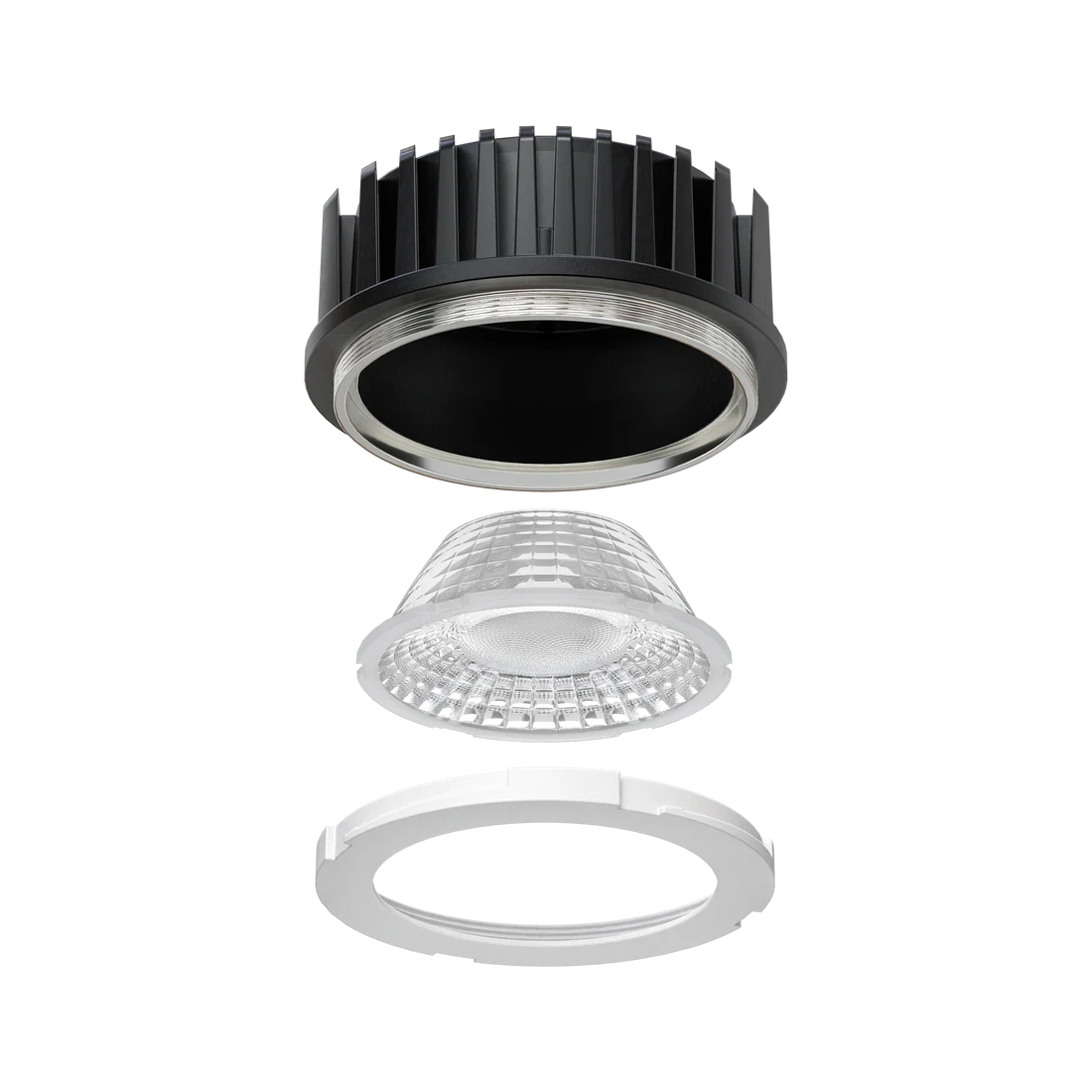

  • Interchangeable Module System: Modular 4-inch architectural design featuring a default clear diffuser and a 40° beam spread.

  • 5-CCT + Dim-to-Warm Selectable: Field-selectable color temperatures (2700K, 3000K, 3500K, 4100K, 5000K) plus multi-select Dim-to-Warm functionality.

  • High Efficiency Performance: Produces 1100 lumens using only 12W of power with superior color rendering (CRI >90).

  • Universal 120-277V Input: Operates seamlessly across residential (120V) and commercial (277V) line voltages (270mA output current).

  • Dual Dimming Protocol: Fully compatible with standard TRIAC forward-phase and commercial 0-10V dimming controls (100% to 5%).

  • Rugged & Compliant: Features Wet Location rating, IC housing rating for direct insulation contact, and FT6 plenum wiring safety.

Technical Specification Table

Technical Specification Product Details (G-10010 Profile)
Product Model / SKU G-10010
Ordering Code M4/12W/LED/5CCT
Product Line / Series Aster Interchangeable LED Module Series
Nominal Module Size 4.00 Inch
Primary Optics & Diffuser Clear Diffuser Lens (Default)
Mounting Type Universal Mounting
Power Consumption 12W
Input Voltage Range 120-277V AC
Output Current 270mA
Luminous Output 1100 Lumens
Color Rendering Index (CRI) CRI >90 (High Color Fidelity)
Beam Spread Angle 40° Optics (Default)
Selectable CCT Options 5CCT (2700K / 3000K / 3500K / 4100K / 5000K) + Dim-to-Warm (DTW)
Dimming Protocol / Range Dual TRIAC & 0-10V Dimming (100% - 5%)
Plenum Safety Rating FT6 Rated
Environmental Protection Wet Location Rated
Insulation Contact Rating IC Rated
Manufacturer Warranty 3-Year Warranty

Packaging & Logistics Specifications

  • Individual Barcode / UPC: 990379100107

  • Master Case Pack Quantity: 18 Units per Master Pack
