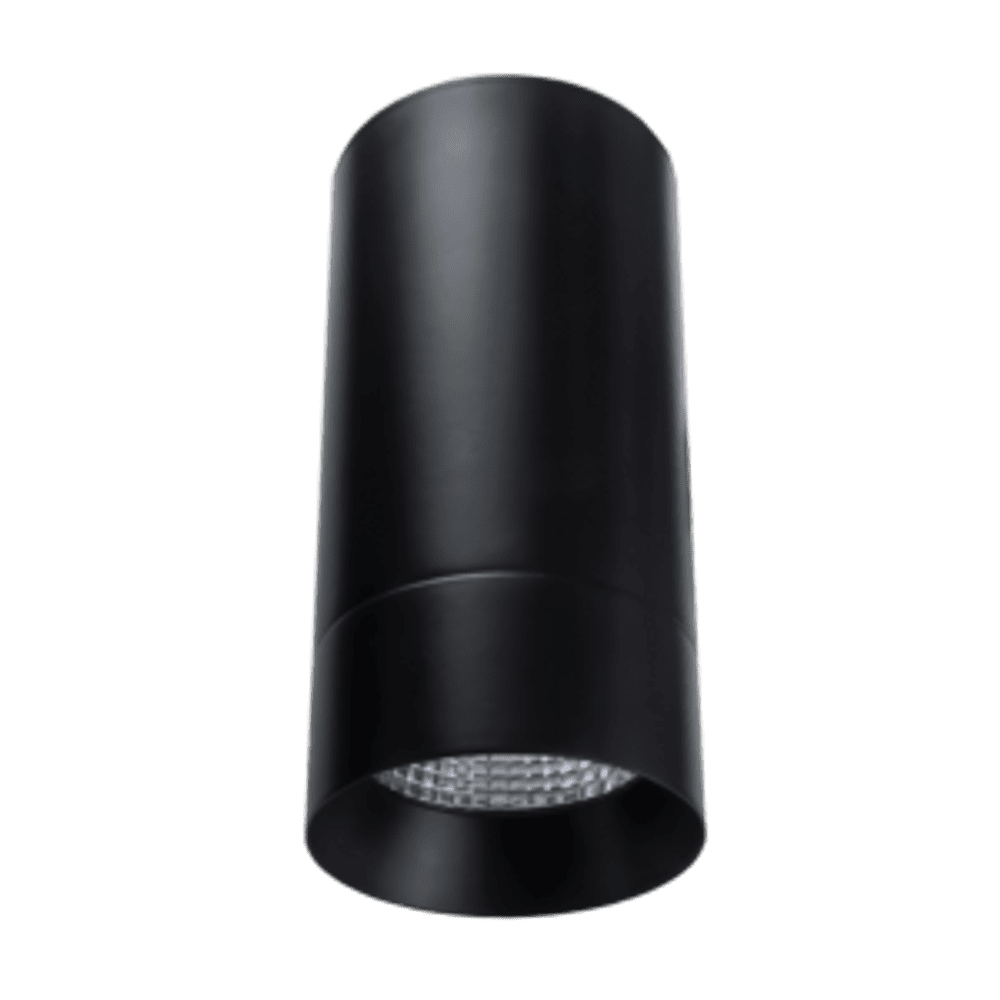

Jupiter 3” Round Universal LED Cylinder – 20W | 5CCT | 120-277V | Wet Rated

The Jupiter 3 Inch Round Universal Cylinder is a compact yet powerful architectural LED fixture designed for modern residential and commercial applications. Delivering 1800 lumens with selectable color temperatures (2700K–5000K), this 20W cylinder provides high-performance illumination with superior color rendering (CRI >90) and a clean, focused 40° beam spread.

Engineered for versatility, the Jupiter cylinder features universal mounting compatibility, making it ideal for surface, wall, or ceiling applications. Its 120–277V input allows for both residential and commercial installations, while dual dimming capability (Triac or 0-10V) ensures seamless lighting control.

With a wet location rating, IC rating, and FT6 plenum rating, this fixture is suitable for demanding environments including bathrooms, covered outdoor areas, corridors, retail spaces, and hospitality settings. Available in white and black finishes, the Jupiter cylinder offers flexibility to match various architectural aesthetics.

Key Features & Benefits

• Compact 3-inch architectural cylinder design

• 20W output producing 1800 lumens

• Selectable 5CCT: 2700K / 3000K / 3500K / 4100K / 5000K

• High color accuracy CRI >90

• Focused 40° beam spread for accent and task lighting

• 120–277V universal voltage

• Dual dimming: Triac or 0-10V

• Wet location rated

• IC Rated & FT6 Plenum Rated

• ETL & Title 24 Listed

• 3-Year Warranty

• Available in White (G-05020) and Black (G-05021)

Technical Specifications

General Specs

• Product Codes:

  • White: G-05020

  • Black: G-05021

• Description: CYD/3/20W/RD/LED/5CCT

• Shape: Round

• Size: 3 Inch

• Finish Options: White / Black

• Mounting: Universal

• Diffuser: Clear (Default)

• Number of Lights: 1

Dimensions

• Height: 6.30”

• Width: 3.07”

Lighting Performance

• Lumens: 1800

• Selectable CCT: 27K / 30K / 35K / 41K / 50K

• CRI: >90

• Beam Spread: 40°

Electrical

• Wattage: 20W

• Voltage: 120–277V

• Dimming: Triac or 0-10V

• Plenum Rated: FT6

Compliance

• Location Rating: Wet Location

• IC Rated: Yes

• Certifications: ETL, Title 24 Listed

• Warranty: 3 Years

Packaging

• Master Pack: 18

• Barcodes:

  • White: 024441050202

  • Black: 024441050219
