Flarion 4" Double-Head Floating Gimbal LED Multiple Downlight – 26W, 5CCT Selectable, Adjustable (White / Black)

The Flarion 4-inch Double-Head Floating Gimbal LED Downlight is a versatile architectural recessed lighting fixture designed for directional accent lighting and modern commercial installations. Featuring two independently adjustable floating gimbal heads, this fixture allows precise aiming of light to highlight architectural features, artwork, retail displays, or focal areas.

Each LED head produces 1200 lumens, delivering a total output of 2400 lumens, making it ideal for retail environments, galleries, hospitality spaces, offices, showrooms, and contemporary residential interiors.

The fixture includes 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), allowing installers and designers to easily adjust the lighting tone depending on the environment. Its high color rendering index (CRI >90) ensures accurate color reproduction, which is especially important for product displays and accent lighting.

Each gimbal head offers 90° tilt and 360° rotation, providing complete directional lighting control. The 40° beam angle delivers focused illumination ideal for spotlighting specific areas or objects.

Designed for flexible installation, the fixture supports Triac and 0–10V dimming, making it compatible with both residential and commercial dimming systems.

The clip-in mounting system allows fast and secure installation, while the fixture’s IC rating and plenum rating (FT6) make it suitable for insulated ceilings and air-handling spaces.

With a wet location rating, the fixture can be installed in bathrooms, kitchens, covered outdoor ceilings, and other moisture-prone environments.

Certified ETL Listed and Title 24 compliant, and backed by a 3-year warranty, the Flarion 4" Double-Head Floating Gimbal LED Downlight provides an energy-efficient and reliable lighting solution for directional architectural lighting.

Available Finishes

Technical Specifications

General Specifications

• Product Name: Flarion 4" Double-Head Floating Gimbal LED Downlight

• Shape: Multiple

• Style: Trimmed

• Size: 4 Inch

• Finish Options: White / Black

• Diffuser: Clear

• Number of Lights: 2

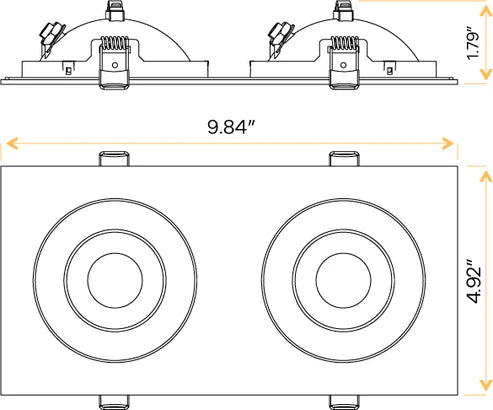

Dimensions

• Cutout Size: 4.25" × 8.95"

• Outside Dimension (OD): 4.92" × 9.84"

• Height: 1.81"

Mounting

• Installation Type: Clip-in

Light Performance

• Total Wattage: 26W

• Lumens per Head: 1200 lm

• Total Lumens: 2400 lm

• CRI: >90

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Angle: 40° (Default)

Adjustability

• Tilt Angle: 90°

• Rotation: 360°

Electrical Specifications

• Input Voltage: 120–277V

• Output Current: 650mA

• Plenum Rated: FT6

• Dimming: Triac or 0-10V Dimming Compatible

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 18 Units

Warranty

• Warranty: 3 Years
