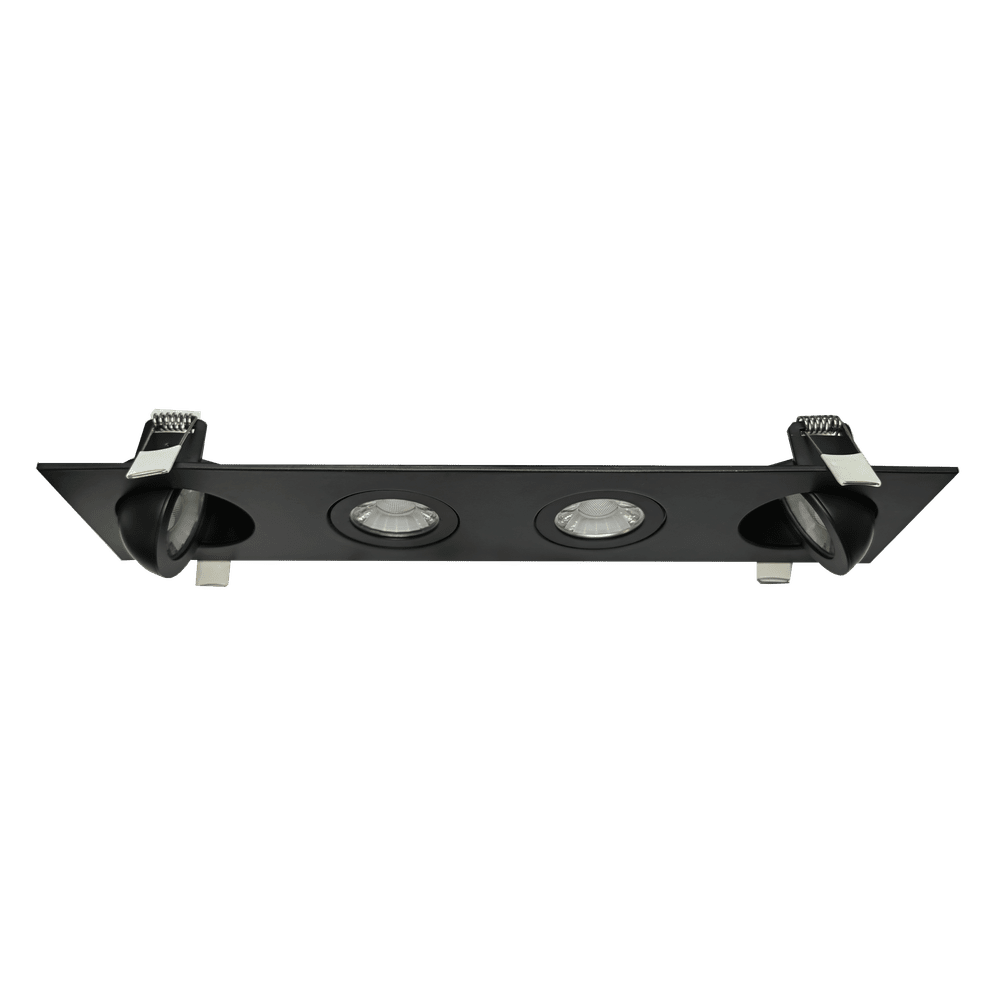

Flarion 3" Four Head Multiple Floating Gimbal LED Light

The Flarion 3” Four Head Multiple Floating Gimbal LED Light is a premium architectural recessed lighting solution designed for high-performance directional illumination and modern ceiling aesthetics. Featuring four independently adjustable floating gimbal heads, this fixture delivers exceptional flexibility for accent, task, and general lighting in residential and commercial environments.

With a total output of 2800 lumens and 32W LED efficiency, each head produces 700 lumens of crisp, high-quality illumination with a CRI greater than 90, ensuring accurate color rendering and vibrant visual clarity. The integrated 5CCT selectable color temperature technology allows installers to easily choose between 2700K, 3000K, 3500K, 4100K, and 5000K, providing adaptable lighting for any space or design preference.

The floating gimbal design allows a full 360° rotation and up to 90° tilt, offering maximum directional control to highlight architectural elements, artwork, retail displays, or focal points. A 40° beam angle provides precise illumination while maintaining balanced light distribution.

Designed for both new construction and retrofit installations, the fixture features a clip-in mounting system that simplifies installation and ensures a secure fit. Its wet location rating, IC certification, and FT6 plenum rating make it suitable for a wide variety of environments including residential interiors, commercial buildings, hospitality spaces, and damp or outdoor covered areas.

Available in modern white or black finishes, the Flarion series blends seamlessly into contemporary ceilings while delivering powerful and flexible lighting performance.

Key Features

• Four adjustable floating gimbal heads

• Total lumen output: 2800 lumens

• Each head output: 700 lumens

• Power consumption: 32W LED

• High color accuracy: CRI >90

• Beam spread: 40° precision beam

• Tilt adjustment: 90°

• Rotation: 360°

• Selectable color temperature (5CCT)

Selectable Color Temperatures

Easily choose the desired lighting tone during installation:

• 2700K – Warm White

• 3000K – Soft White

• 3500K – Neutral White

• 4100K – Cool White

• 5000K – Daylight

This flexibility makes the fixture ideal for residential, hospitality, retail, and commercial lighting applications.

Electrical Specifications

• Wattage: 32W

• Voltage: 120–277V universal input

• Output Current: 720mA

• Dimming Compatibility:

  • Triac dimming

  • 0-10V dimming

These options provide compatibility with both residential dimmers and commercial lighting control systems.

Dimensions & Installation

• Fixture Size: 3 Inch

• Cutout Dimensions: 2.95” × 13.05”

• Outside Dimensions: 3.47” × 13.86”

• Height: 1.54” ultra-low profile

• Mounting: Clip-in recessed installation

The low-profile design is ideal for modern ceilings with limited plenum space.

Certifications & Compliance

• Wet Location Rated

• IC Rated

• FT6 Plenum Rated

• ETL Listed

• Title 24 Compliant

• 3-Year Manufacturer Warranty

These certifications ensure safety, energy efficiency, and compliance with North American lighting standards.

Ideal Applications

The Flarion 4-head gimbal recessed light is ideal for:

• Residential living rooms

• Kitchen lighting

• Hallways and corridors

• Art and accent lighting

• Retail displays

• Galleries and showrooms

• Hospitality environments

• Offices and commercial interiors
