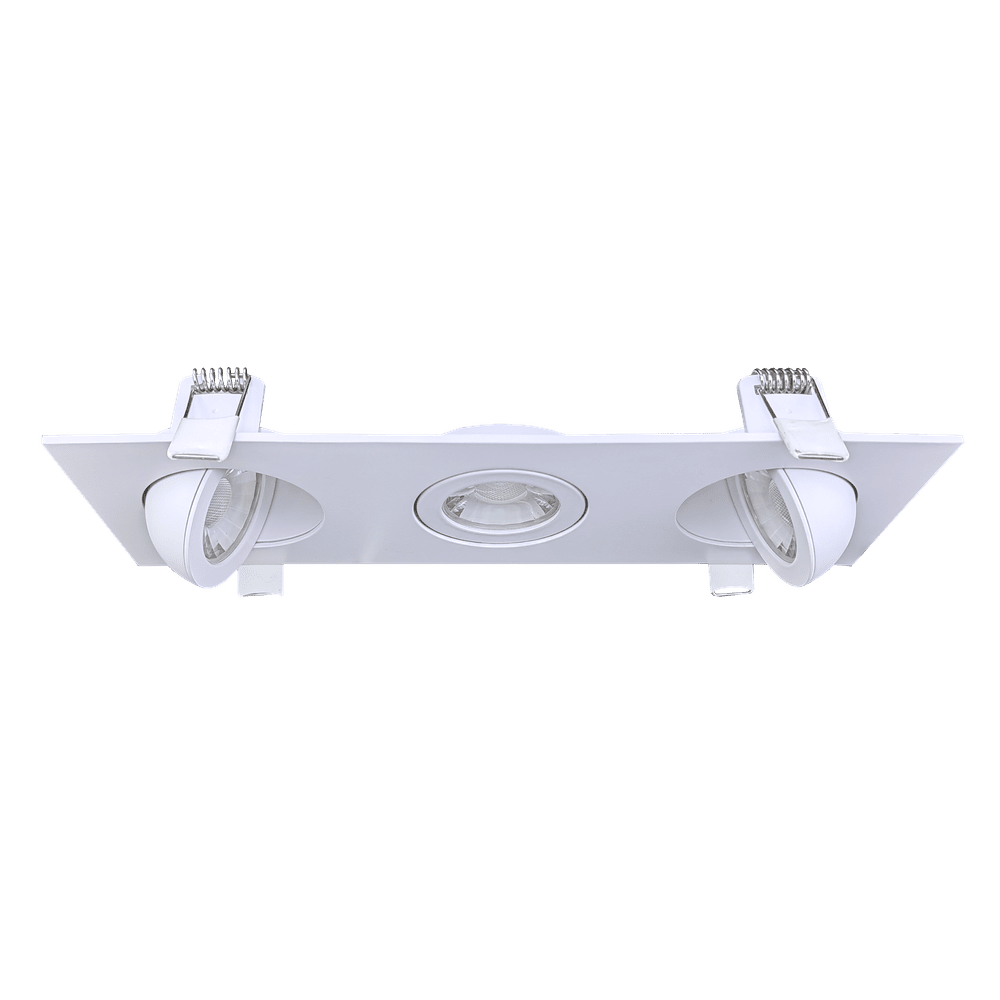

Flarion 3" Triple-Head Floating Gimbal LED Downlight – 23W, 5CCT Selectable, Adjustable (White / Black)

The Flarion 3-inch Triple-Head Floating Gimbal LED Downlight is a compact multi-directional recessed lighting fixture designed for high-performance accent and architectural lighting applications. Featuring three independently adjustable floating gimbal heads, this fixture allows precise directional control to illuminate multiple focal points within a space.

Each LED head produces 700 lumens, delivering a combined output of 2100 lumens with a 40° beam angle, making it ideal for retail displays, galleries, hospitality environments, offices, modern residential interiors, and architectural highlighting.

The fixture includes 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), allowing lighting designers and installers to easily match the lighting tone to the environment. With a high color rendering index (CRI >90), the fixture ensures accurate color reproduction—essential for highlighting artwork, merchandise, and design features.

Each gimbal head offers 90° tilt and full 360° rotation, providing maximum flexibility for aiming and directing the light beam exactly where it is needed.

The fixture supports Triac and 0–10V dimming systems, making it compatible with both residential and commercial lighting controls.

Its clip-in mounting system ensures quick and secure installation, while the IC rating and FT6 plenum rating allow installation in insulated ceilings and air-handling spaces.

With a wet location rating, the fixture is suitable for installation in bathrooms, kitchens, covered outdoor ceilings, and other moisture-exposed areas.

Certified ETL Listed and Title 24 compliant, and backed by a 3-year warranty, the Flarion 3" Triple-Head Floating Gimbal LED Downlight delivers energy-efficient, flexible, and modern recessed lighting performance.

Available Finishes

Technical Specifications

General Specifications

• Product Name: Flarion 3" Triple-Head Floating Gimbal LED Downlight

• Shape: Multiple

• Style: Trimmed

• Size: 3 Inch

• Finish Options: White / Black

• Diffuser: Clear

• Number of Lights: 3

Dimensions

• Cutout Size: 2.95" × 9.45"

• Outside Dimensions (OD): 3.47" × 10.16"

• Height: 1.54"

Mounting

• Installation Type: Clip-in

Light Performance

• Total Wattage: 23W

• Lumens per Head: 700 lm

• Total Lumens: 2100 lm

• CRI: >90

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Angle: 40° (Default)

Adjustability

• Tilt Angle: 90°

• Rotation: 360°

Electrical Specifications

• Input Voltage: 120-277V

• Output Current: 520mA

• Plenum Rated: FT6

• Dimming: Triac or 0-10V Dimming Compatible

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 12 Units

Warranty

• Warranty: 3 Years
