3" Double Head Floating Gimbal LED Downlight | 1,400Lm | CCT Selectable | Goodlite G-00822/922

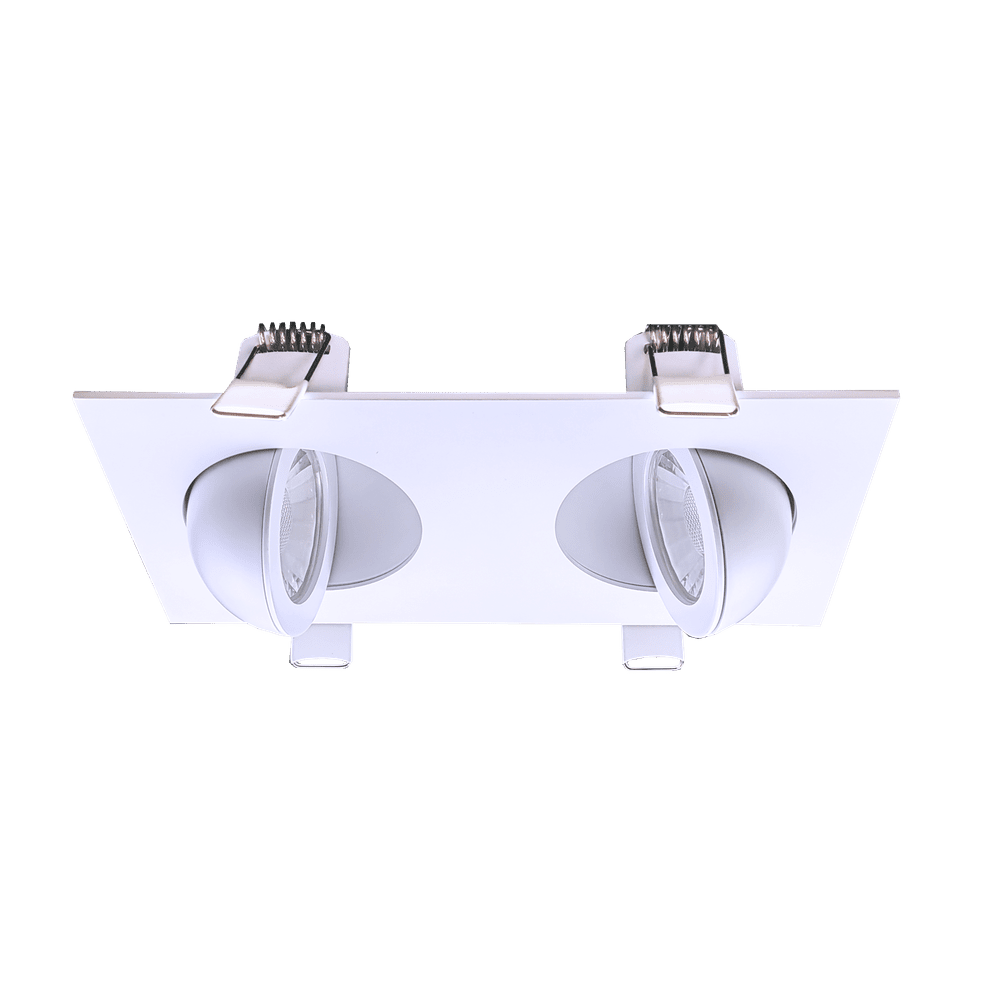

Deliver precision linear accent illumination and independent directional aiming with the Flarion 3" Double Head Multiple Floating Gimbal LED Recessed Downlight Series. Crafted for high-end residential spaces, retail displays, galleries, and commercial interiors, this compact multi-light fixture houses two independently articulated floating gimbal modules within a single sleek trim. Each head features full 360° horizontal rotation and an extreme 90° vertical tilt angle with a standard 40° beam spread, allowing targeted directional lighting across two separate focal points from a single ceiling cutout.

Consuming 15W total, the fixture produces 1,400 total system lumens (700 lumens per head) with high color fidelity (CRI >90). An integrated 5-CCT Field Selectable switch allows effortless color temperature tuning on-site across 2700K, 3000K, 3500K, 4100K, and 5000K via the remote junction box driver.

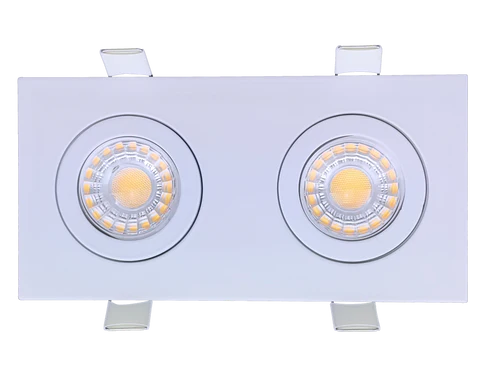

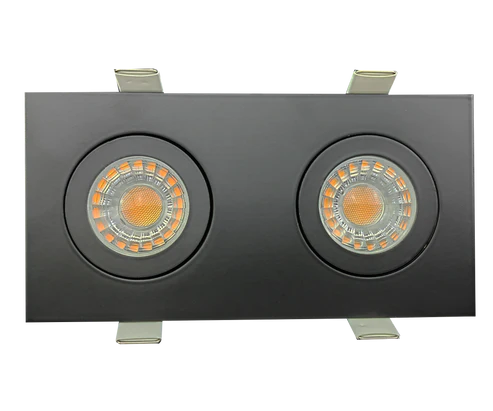

Designed for fast clip-in installation into 2.95" x 6.15" linear ceiling cutouts, the fixture operates on a universal 120-277V AC driver supporting both Triac and 0-10V dimming protocols (100% to 5%) with FT6 plenum-rated cable connections. Available in both White (G-00822) and Black (G-00922) finishes. Certified ETL and Title 24 Listed, fully IC Rated for direct contact with insulation, approved for Wet Locations, and backed by a 3-year warranty.

Key Features:

• Dual Independent Floating Gimbals: 2 independently adjustable modules with 360° rotation and 90° tilt offer versatile aiming for artwork, displays, or accent walls.

• High Output Multi-Head Engine: 15W total system draw delivers 1,400 total lumens (700 LM per head) with accurate CRI >90 color representation.

• 5-CCT Field Selectable: Customize color temperatures on-site across 2700K, 3000K, 3500K, 4100K, and 5000K settings.

• Commercial Universal Driver: 120-277V input range supporting dual Triac and 0-10V dimming capabilities with FT6 plenum-rated wiring.

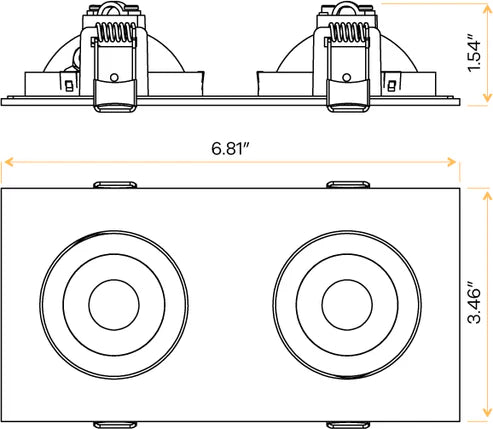

• Low Profile Design: Ultra-shallow 1.54" fixture height clips directly into 2.95" x 6.15" cutouts for easy installation in tight plenum spaces.

• IC & Wet Location Rated: Approved for direct insulation contact and damp/wet environments; ETL & Title 24 Listed with a 3-year warranty.

Technical Specification Comparison Table

Packaging & Logistics Specifications

• Master Pack Quantity: 18 Pieces (Both Models)

• Barcodes:

  • White (G-00822): 024441008227

  • Black (G-00922): 024441009224

• Included Accessories: Pre-attached Spring Mounting Clips, Remote Junction Box Driver & FT6 Wiring
