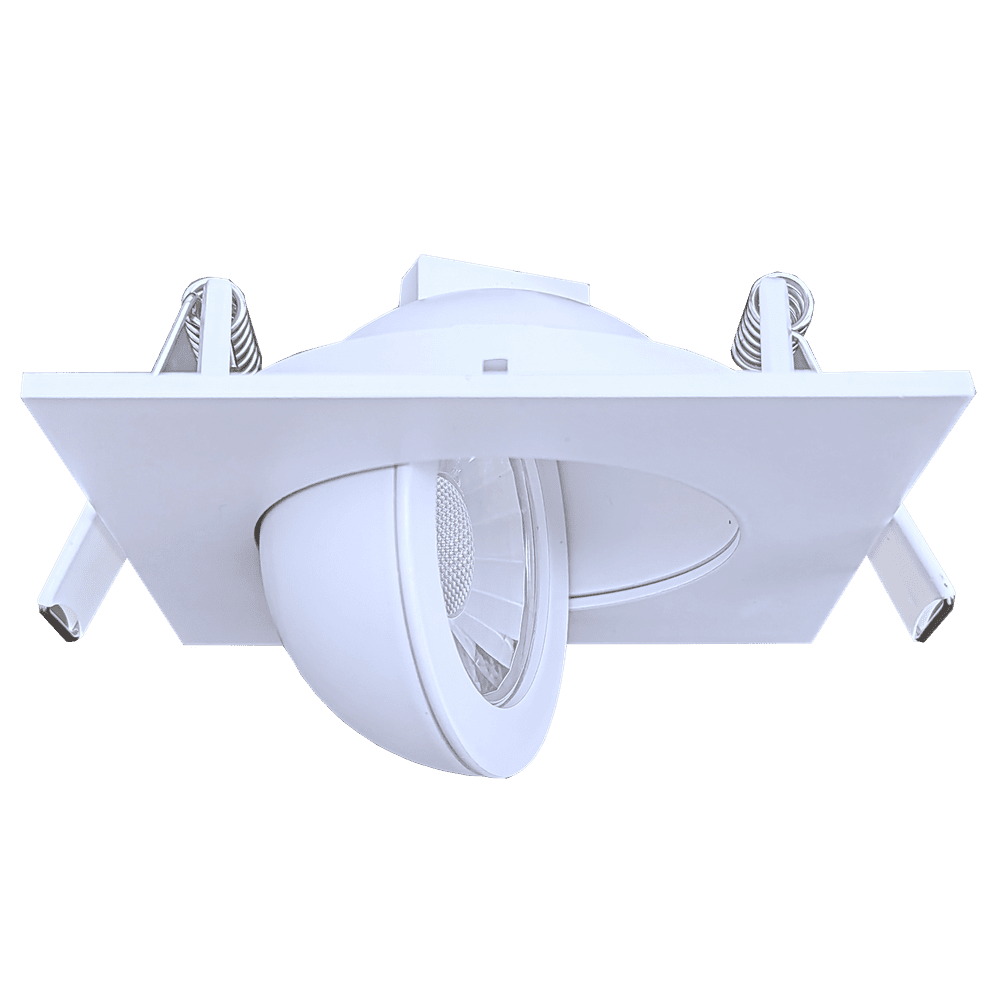

Flarion 3" Single-Head Floating Gimbal LED Downlight – 8W, 5CCT Selectable, Adjustable (White / Black)

The Flarion 3-inch Single-Head Floating Gimbal LED Downlight is a compact architectural recessed lighting solution designed for directional accent lighting and modern ceiling applications. Its floating gimbal design allows the LED module to move independently, providing precise control over lighting direction for highlighting artwork, retail displays, architectural features, and interior design elements.

Producing 700 lumens with an 8-watt energy-efficient LED, this fixture delivers focused illumination with a 40° beam angle, making it ideal for accent lighting, task lighting, and directional spotlighting in both residential and commercial environments.

The fixture features 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), allowing installers and designers to adjust the lighting tone based on the application. Its high color rendering index (CRI >90) ensures accurate color reproduction, which is essential for showcasing décor, artwork, and merchandise.

The adjustable gimbal head provides 90° tilt and full 360° rotation, allowing the beam to be directed exactly where illumination is needed.

Engineered for flexible installation, the fixture supports Triac and 0–10V dimming, making it compatible with a wide range of residential and commercial lighting control systems.

The clip-in mounting system ensures quick and secure installation, while the IC rating and FT6 plenum rating allow safe installation in insulated ceilings and air-handling spaces.

With a wet location rating, the fixture can be installed in bathrooms, kitchens, soffits, and covered outdoor ceilings.

Certified ETL Listed and Title 24 compliant, and backed by a 3-year warranty, the Flarion 3" Single-Head Floating Gimbal LED Downlight offers an energy-efficient and versatile solution for modern recessed lighting designs.

Available Finishes

Technical Specifications

General Specifications

• Product Name: Flarion 3" Single-Head Floating Gimbal LED Downlight

• Shape: Square

• Style: Trimmed

• Size: 3 Inch

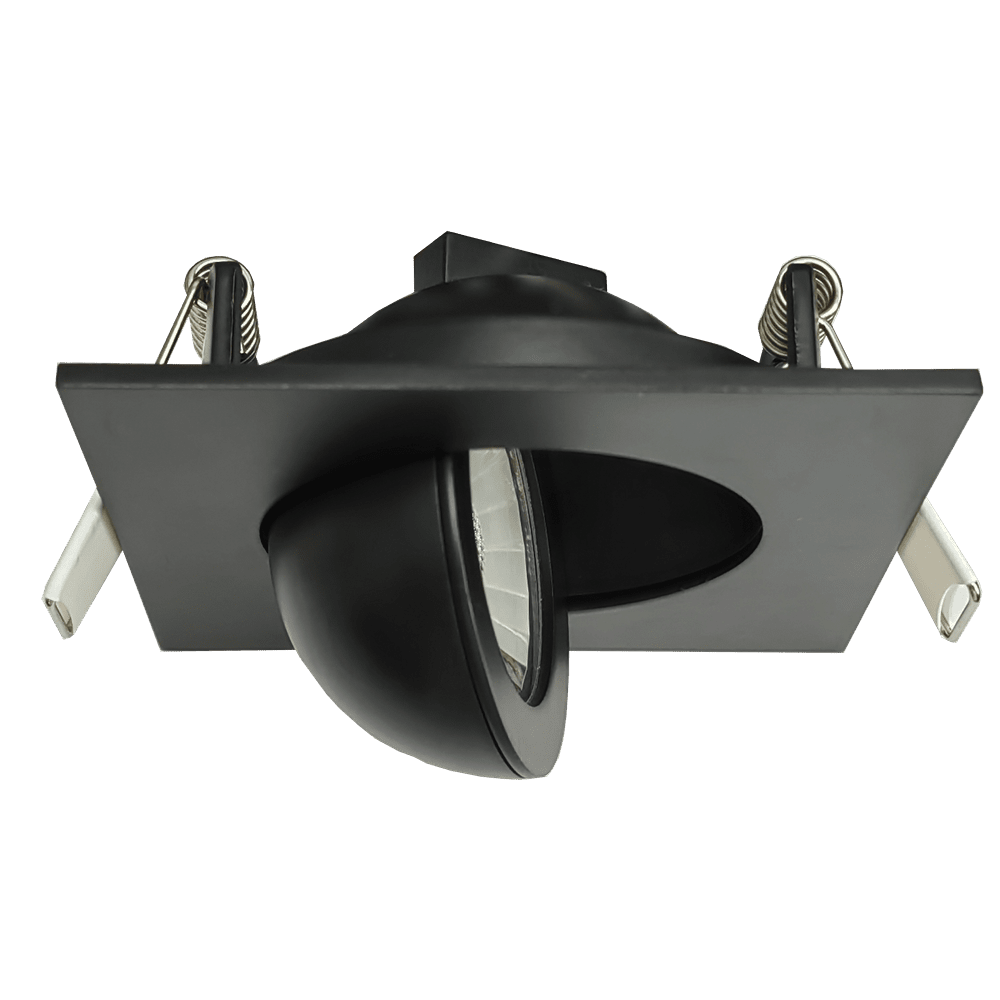

• Finish Options: White / Black

• Diffuser: Clear

• Number of Lights: 1

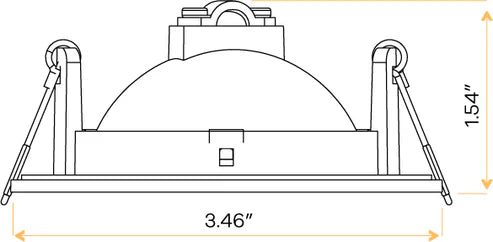

Dimensions

• Cutout Size: 2.95"

• Outside Dimension (OD): 3.47"

• Height: 1.54"

Mounting

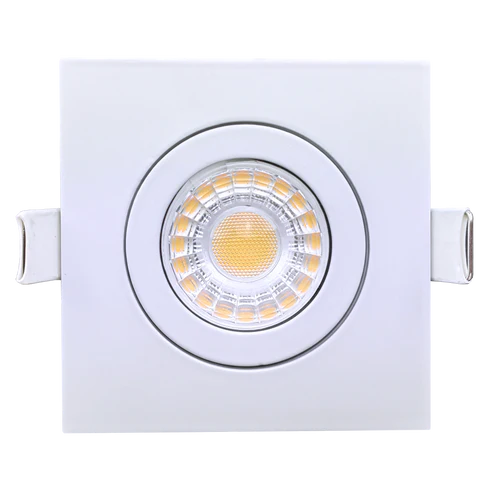

• Installation Type: Clip-in

Light Performance

• Wattage: 8W

• Lumens: 700 lm

• CRI: >90

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Angle: 40° (Default)

Adjustability

• Tilt Angle: 90°

• Rotation: 360°

Electrical Specifications

• Input Voltage: 120-277V

• Output Current: 175mA

• Plenum Rated: FT6

• Dimming: Triac or 0-10V Dimming Compatible

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 18 Units

Warranty

• Warranty: 3 Years
