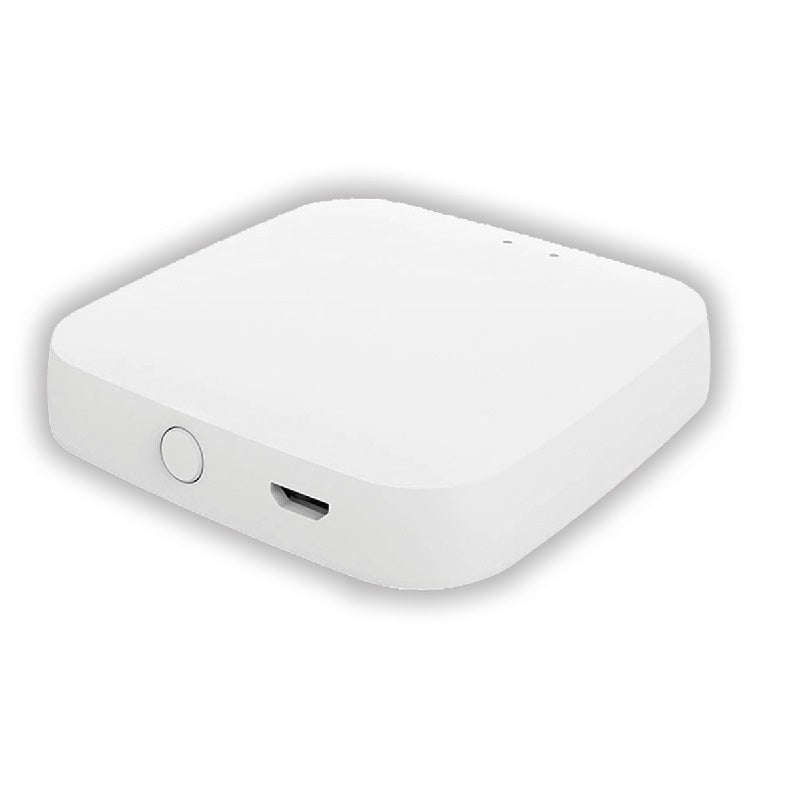

Fiat Lux Bluetooth Mesh to Wi-Fi Gateway | Smart Lighting Control Hub
| SKU(s) | CX-BTG |
| Color | White |
| Voltage | 5V DC |
| Width | 2-1/4" |
| Certs |
|
 View Installation Guide
|
The Fiat Lux Bluetooth Mesh to Wi-Fi Gateway enables seamless integration of Fiat Lux smart lighting fixtures with your home or commercial Wi-Fi network. Acting as a bridge between Bluetooth Mesh and Wi-Fi, this gateway ensures reliable remote access and app-based control from anywhere.
Crafted from high-impact molded plastic for durability, the device is designed for surface mounting, making installation quick and convenient. It connects to Bluetooth Mesh-enabled Fiat Lux products via low-energy Bluetooth Mesh and communicates with your network using IEEE 802.11 b/g/n Wi-Fi standards.
Powered by a 5V DC USB supply, the gateway offers energy-efficient operation and serves as a central hub for voice control integration, scheduling, automation, and cloud connectivity.
✔ Durable high-impact molded plastic housing
✔ Surface mounting design for easy installation
✔ Bluetooth Mesh (incoming) + Wi-Fi 802.11 b/g/n (outgoing)
✔ Remote access & smart home integration
✔ Powered by 5V DC USB supply
✔ 1-Year Warranty
$532.85 /each
| SKU(s) | CL-755-BT-T-AB-18 |
| Color | Antique Bronze | Gun Metal |
| Size | 18" | 24" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 24" / 18" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$261.00 /each
| SKU(s) | CL-410-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 4.5/8" |
| Length | 4-5/8" |
| Height | 2-1/2" |
| Diameter | 4-5/8" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$70.25 /each
| SKU(s) | CL-362C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Raw Copper |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Height | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$95.45 /each
| SKU(s) | CL-540C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 8-1/2" |
| Diameter | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
