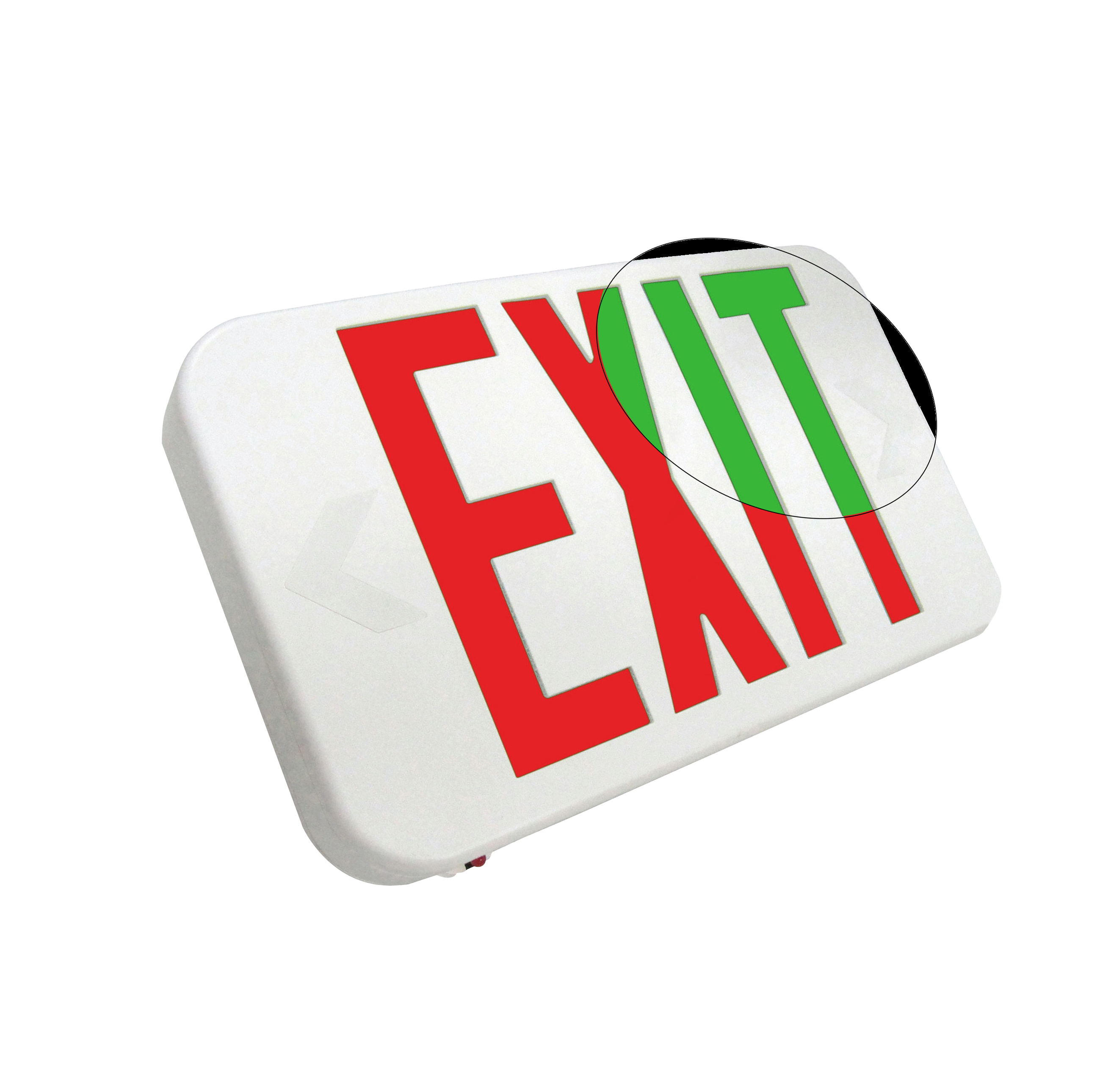

LED Exit Sign Compact Thermoplastic | 120/277V | High Impact Resistant | EZRXTEU-RG

The Compact Thermoplastic LED Exit Sign EZRXTEU-RG offers maximum flexibility and efficiency with its field-selectable red or green LED illumination, allowing you to adapt to different building codes and preferences without changing fixtures. Designed for reliability and compliance, this exit sign is ideal for commercial, institutional, and residential applications.

Built with high-impact, flame-retardant thermoplastic housing, the EZRXTEU-RG combines durability with a lightweight design. Its curved face and rounded corners provide a clean, modern appearance that blends seamlessly into any environment.

The unit operates on dual voltage (120/277V) and includes a maintenance-free 1.2V NiCd battery, delivering a minimum of 90 minutes of emergency illumination during power outages. The solid-state transfer switch ensures automatic operation, while the push-to-test switch and LED indicator simplify maintenance and compliance checks.

Installation is quick and versatile thanks to the EZ-snap mounting canopy for top or end mounting and a universal knockout pattern for wall mounting. The snap-out chevron directional indicators allow for easy field configuration to match exit routes.

With UL listing for damp locations and CEC Title 20 certification, the EZRXTEU-RG is engineered to meet strict safety standards while offering convenience, adaptability, and long-lasting performance.

Key Features

• Red/Green selectable LED illumination for flexible installation

• Dual voltage input: 120V / 277V

• Maintenance-free rechargeable NiCd battery

• Minimum 90-minute emergency backup operation

• Push-to-test switch with LED charge indicator

• Automatic solid-state transfer switch

• Fully automatic 24-hour recharge system

• Durable, flame-retardant thermoplastic housing

• Curved, low-profile design with modern aesthetics

• EZ-snap canopy for top or end mounting

• Universal knockout pattern for wall mounting

• Snap-out chevron directional indicators

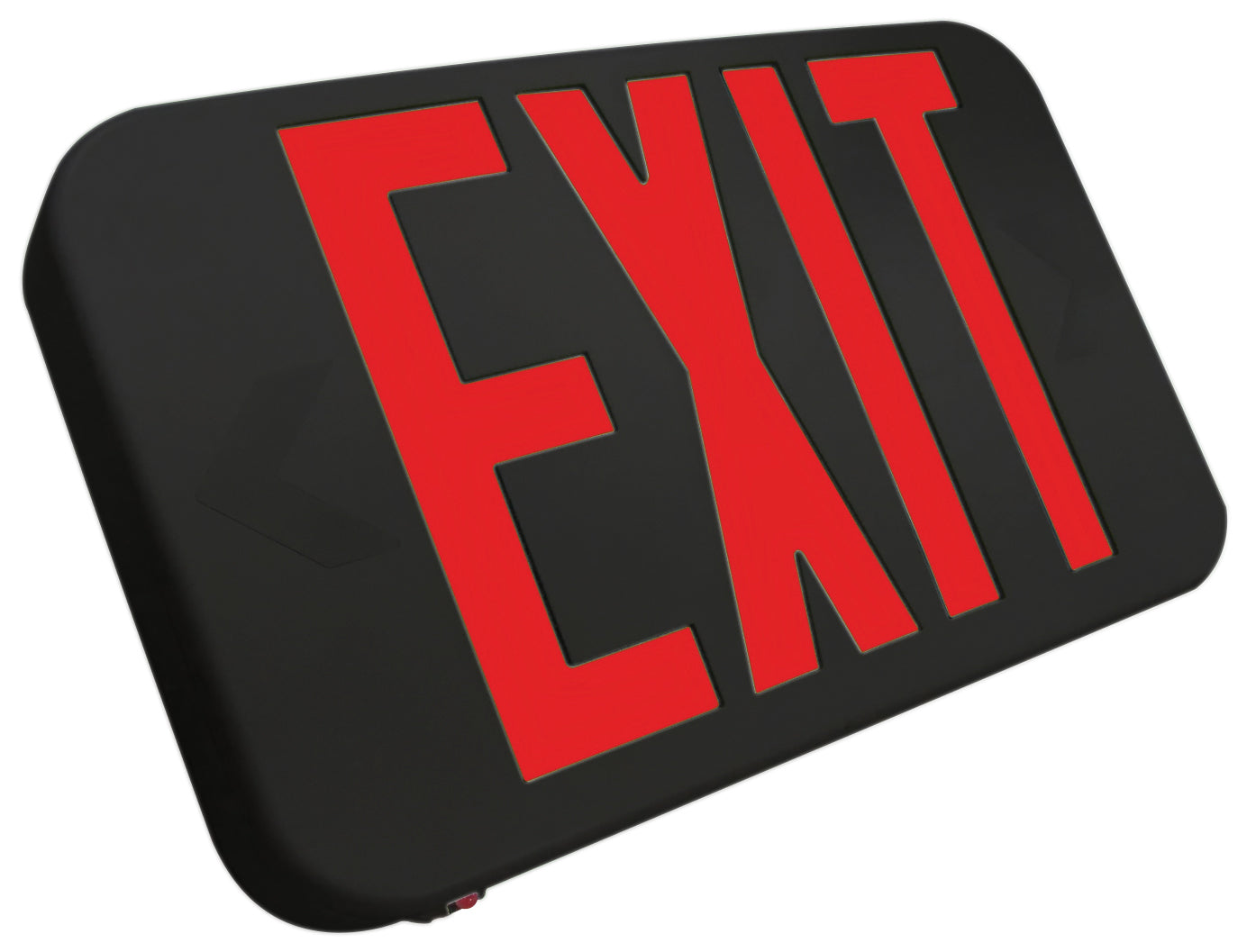

• Available in white or black finish

• UL listed for damp locations

• CEC Title 20 compliant

Technical Specifications

General Information

• Model: EZRXTEU-RG

• Product Type: LED Exit Sign (Red/Green Selectable)

• Housing: Injection-Molded Thermoplastic (5VA Flame Retardant)

• Finish Options: White or Black

• Face Design: Curved face with rounded corners

Electrical

• Input Voltage: 120/277V Dual Voltage

• Light Source: Red/Green Selectable LED

• Battery: 1.2V NiCd Rechargeable (maintenance-free)

• Emergency Operation: Minimum 90 minutes

• Charging Time: 24 hours

• Transfer Switch: Solid-State Automatic

• Indicator: LED charge/power indicator with push-to-test

Mounting

• Mounting Options: Top, End, Wall

• Mounting Canopy: EZ-snap included

• Back Plate: Universal K/O pattern

Compliance & Ratings

• UL Listed for Damp Locations

• CEC Certified (Title 20 Regulations)
