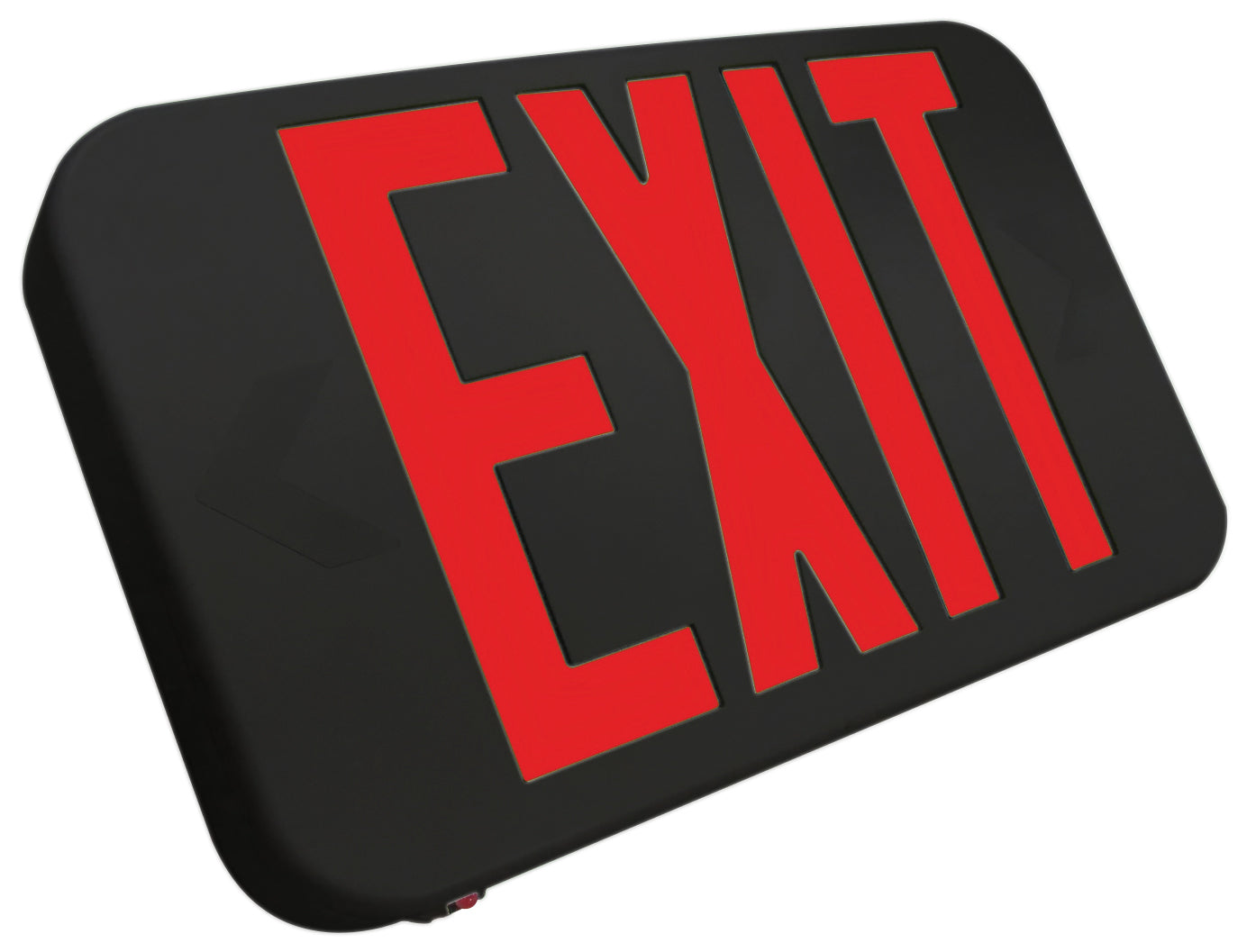

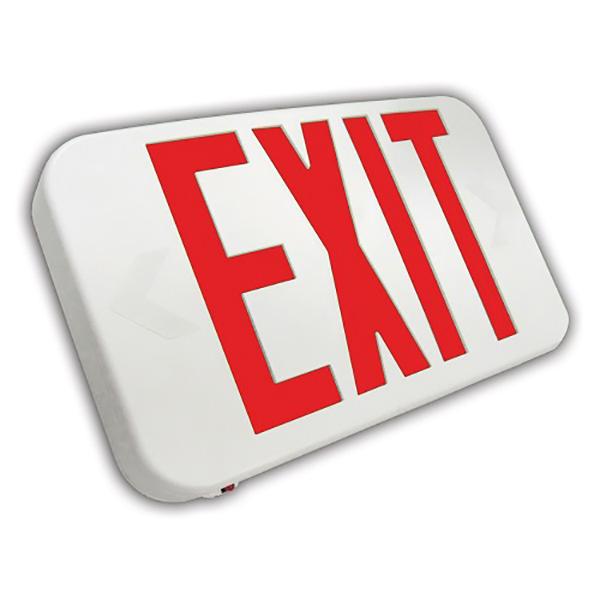

LED Exit Sign Compact Thermoplastic | 120/277V | EZRXTEU

The Compact Thermoplastic LED Exit Sign EZRXTEU is a cost-effective and code-compliant emergency lighting solution, designed for reliable performance in commercial and residential applications. Built with high-impact, flame-retardant thermoplastic housing, this exit sign offers durability while maintaining a lightweight and compact design.

Equipped with ultra-bright red or green LEDs, the EZRXTEU provides clear, energy-efficient illumination to ensure visibility in emergency situations. Its dual voltage capability (120/277V) allows for flexible installation across a wide range of electrical systems.

This exit sign includes a maintenance-free NiCd battery, delivering a minimum of 90 minutes of emergency lighting during power outages. The solid-state transfer switch ensures automatic activation, while the push-to-test switch and LED indicator simplify routine maintenance and code compliance checks.

Designed for versatility, the EZRXTEU features an EZ-snap mounting canopy for top or end mounting, along with a universal knockout pattern for wall installation. The snap-out chevron directional indicators allow for field customization to match exit path requirements.

With compliance to UL924, NFPA 101 Life Safety Code, NEC, OSHA, and CEC Title 20 regulations, this compact exit sign is engineered to meet the highest safety standards. Optional self-diagnostics functionality is also available for enhanced monitoring and maintenance efficiency.

Key Features

• Compact, lightweight thermoplastic LED exit sign

• Ultra-bright red or green LED illumination

• Dual voltage input: 120V / 277V

• Maintenance-free rechargeable NiCd battery

• Minimum 90-minute emergency backup operation

• Push-to-test switch with LED charge indicator

• Automatic solid-state transfer switch

• Fully automatic charger (24-hour recharge time)

• EZ-snap mounting canopy for top or end mount

• Universal back plate for wall mounting

• Snap-out chevron directional indicators

• Flame-retardant, high-impact thermoplastic housing

• Available in white or black finish

• Optional self-diagnostics feature

• UL listed for damp locations

• Meets UL924, NFPA 101, NEC, OSHA, and CEC Title 20

Technical Specifications

General Information

• Model: EZRXTEU / EZRXTEU2

• Product Type: Compact LED Exit Sign

• Housing: Injection-Molded Thermoplastic (5VA Flame Retardant)

• Finish Options: White or Black

• Face Design: Curved face with rounded corners

Electrical

• Input Voltage: 120/277V Dual Voltage

• Light Source: Red or Green LED

• Battery: 1.2V NiCd Rechargeable (maintenance-free)

• Emergency Operation: Minimum 90 minutes

• Charging Time: 24 hours

• Transfer Switch: Solid-State Automatic

• Indicator: LED charge/power indicator with push-to-test

Mounting

• Mounting Options: Top, End, Wall

• Mounting Canopy: EZ-snap included

• Back Plate: Universal K/O pattern

Compliance & Ratings

• UL Listed for Damp Locations

• UL924 Certified

• NFPA 101 Life Safety Code Compliant

• NEC & OSHA Compliant

• CEC Title 20 Certified
