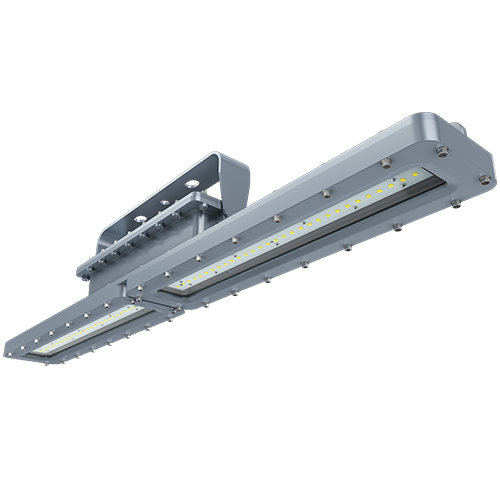

LED Explosion Proof Linear Light | Class I Division II | 5000K | Dimmable | 100-277V | EPC I Series | 40, 50, 60, 80 & 100W

The EPC I Series LED Explosion Proof Linear Light is engineered for hazardous and harsh environments where flammable gases, vapors, or dust may be present. Designed for maximum safety, reliability, and performance, this fixture provides brilliant 5000K daylight illumination while maintaining compliance with Class I, Division II hazardous location standards.

Available in 40W, 50W, 60W, 80W, and 100W configurations, the EPC I Series delivers high-lumen output and energy efficiency, making it an ideal solution for oil and gas refineries, chemical processing plants, marine facilities, and industrial manufacturing areas.

Constructed from corrosion-resistant aluminum with an impact-resistant polycarbonate lens, this linear luminaire ensures long-lasting durability in environments with vibration, moisture, and dust exposure. The 0-10V dimmable driver and wide voltage range (100–277V) allow for easy integration into modern control systems.

⚙️ Key Features

• Explosion Proof Design: Certified for Class I, Division II, Groups A, B, C, D hazardous locations

• High Efficiency: Up to 140 lumens per watt

• Color Temperature: 5000K (daylight white) for clear, accurate illumination

• Power Options: 40W, 50W, 60W, 80W, 100W models available

• Dimmable Driver: 0–10V dimming capability for flexible lighting control

• Voltage Range: Universal 100–277V AC input

• Construction: Copper-free aluminum housing with powder-coated finish

• Lens: Impact-resistant tempered glass or polycarbonate for maximum protection

• Mounting Options: Surface, ceiling, pendant, or wall bracket configurations

• IP66 Rated: Dust-tight and water-resistant for wet and outdoor environments

• Corrosion Resistant: Ideal for marine and offshore installations

• Instant On/Off: No warm-up time, flicker-free operation

• Maintenance-Free: LED technology eliminates bulb replacements

🔖 Ratings & Certifications

• Class I, Division 2, Groups A, B, C, D – explosion-proof hazardous area certification

• Class II, Division 2, Groups F, G – dust and particulate protection

• UL844, UL1598, UL1598A – certified for hazardous and marine locations

• CSA C22.2 No.137 / No.250.0 – compliant for North American safety standards

• IP66 – dustproof and protected against powerful water jets

• IK10 – impact-resistant housing

• NEMA 4X – corrosion-resistant for indoor and outdoor environments

• DLC & ETL Listed – ensures high performance and energy efficiency

• Ambient Temperature: -40°C to +55°C

• Warranty: 5-Year limited manufacturer’s warranty

🏭 Applications

• Oil & gas refineries

• Chemical processing plants

• Offshore platforms and marine terminals

• Fuel storage and transfer facilities

• Power generation stations

• Paint booths and finishing areas

• Wastewater treatment plants

• Grain handling and milling facilities

• Tunnels, pump rooms, and compressor stations

• Manufacturing and industrial workshops

🛡️ Warranty

• 5-year limited warranty covering materials and workmanship

• Maintenance-free design with >50,000-hour lifespan

• Excludes labor, misuse, or damage from improper installation
