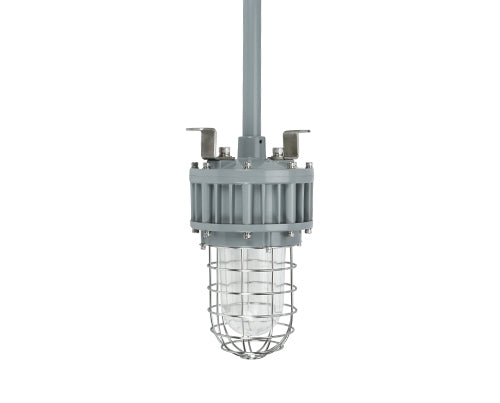

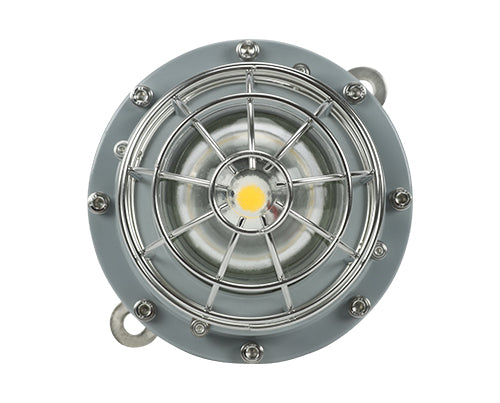

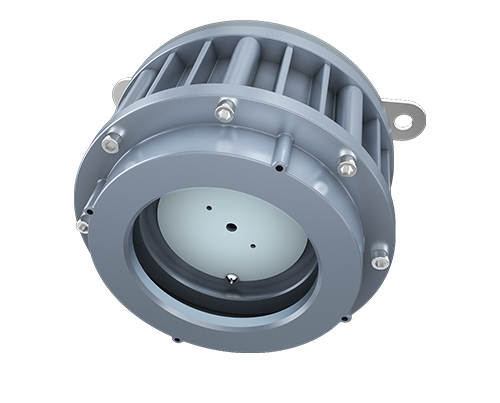

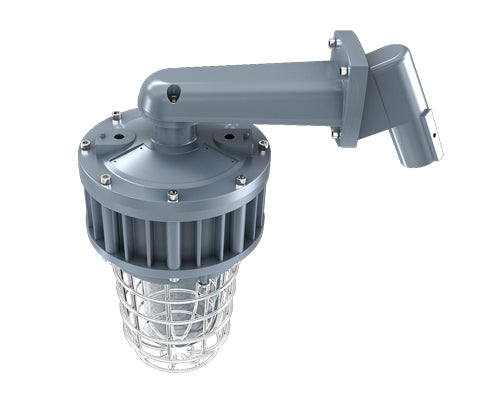

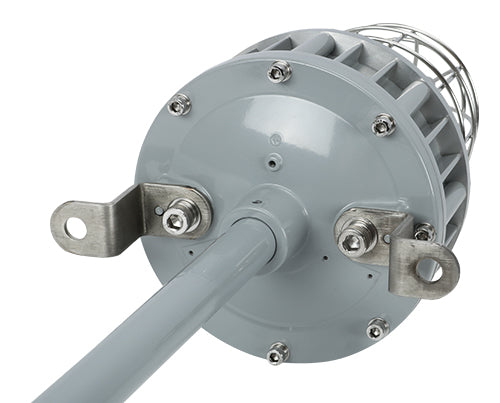

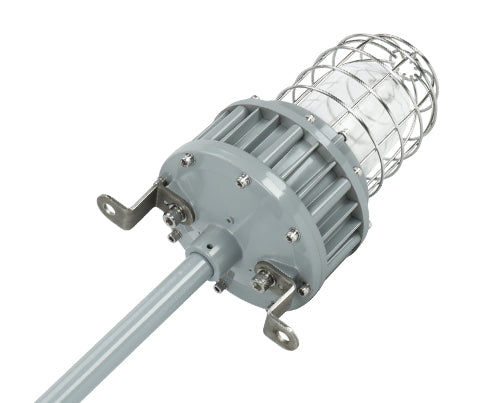

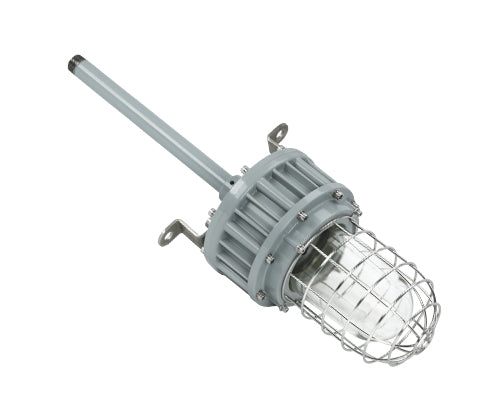

LED Explosion Proof Jelly Jar Light | Class I Division I | 5000K | Dimmable | 100-277V | EPC G Series | 20, 30 & 40W

The G Series Luminaire is a high-efficacy explosion-proof LED light designed for reliable and efficient illumination in hazardous and industrial environments. With an output of up to 140 lumens per watt and a CRI greater than 80, this fixture delivers bright, high-quality lighting in critical operations where safety and performance are essential.

The luminaire supports surface and pendant mounting for versatile installation, with wide and narrow optical options ensuring uniform illumination across any space. Its copper-free aluminum housing offers superior corrosion resistance and high vibration durability, making it ideal for both onshore and offshore hazardous environments.

Applications include:

• Petroleum production, storage, and transportation

• Paint and coating facilities

• Metal smelting, foundries, and fabrication plants

• Offshore oil platforms and ocean vessels

• Aerospace cleanrooms and production lines

• Chemical and food processing facilities

• Power generation stations

• High-humidity, high-dust, high-temperature environments

Features:

• High efficacy up to 140 lm/W

• CRI > 80 for accurate color rendering

• Surface and pendant mounting options

• Wide and narrow beam optics for uniform light distribution

• Copper-free aluminum construction for corrosion resistance

• High vibration resistance for demanding environments

Certifications and Ratings:

• Ingress Protection: NEMA 4X, IP66 (dust-tight and water-resistant)

• Impact Resistance: IK10

• UL Standards: UL1598, UL1598A, UL844

• CSA Standards: CSA C22.2 No.137 / No.250.0

• Hazardous Location Ratings:

  • Class I, Division 1, Groups C, D

  • Class I, Division 2, Groups A, B, C, D

  • Class II, Division 1, Groups E, F, G

  • Class II, Division 2, Groups F, G

  • Class III

• Marine and Wet Location Approved

• ATEX Certified

• IECEx Certified

• 5-Year Limited Warranty (or as specified in purchase agreement)

Warranty Policy:
The G Series Luminaire is backed by a 5-year limited warranty from the date of purchase. The warranty covers repair or replacement of defective products under normal use. Installation labor, electrical costs, and misuse are not covered.

The G Series is the perfect lighting solution for hazardous industrial facilities requiring robust, high-performance LED illumination with maximum safety and energy efficiency.
