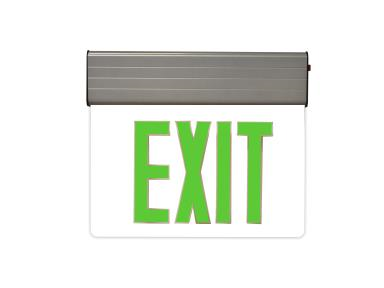

The Edgelit Aluminum Exit Sign ELXTEU delivers a premium combination of modern design, high visibility, and reliable emergency performance. Engineered with a sleek, architectural profile, this exit sign is ideal for commercial, retail, and office environments where aesthetics and safety are equally important.

Featuring a UV-stabilized ultra-clear acrylic edgelit panel, the ELXTEU provides uniform, glare-free illumination across the entire face, ensuring clear visibility in all conditions. The high-efficiency LED technology supports both red and green illumination options, offering flexibility for various building codes and preferences.

Constructed from premium-grade extruded aluminum, this unit is designed for long-term durability while maintaining a sophisticated appearance. Optional black or white powder-coated finishes allow seamless integration into different interior designs.

The double-face configuration includes factory-installed silver or white mylar background panels, enhancing contrast and readability from multiple directions. For directional guidance, the unit comes with self-adhesive chevron appliques and a guide template for quick customization.

Designed for emergency readiness, the ELXTEU (EM models) includes a 4.8V maintenance-free NiCd battery that provides a minimum of 90 minutes of illumination during power outages. A solid-state transfer switch ensures immediate activation, while the automatic two-rate charger restores battery capacity within 24 hours.

For simplified maintenance and compliance, the unit features a power-on LED indicator and a push-to-test switch, ensuring it meets required safety standards. Installation is quick and versatile with the included aluminum mounting canopy, allowing top, end, or back mounting.

Technical Specifications

General Features:

• Product Type: Edgelit LED Exit Sign (ELXTEU)
• Housing: Premium extruded aluminum
• Finish Options: Standard aluminum, optional black or white powder-coated
• Face Type: Single or double face (with mylar background panel)
• Panel Material: UV-stabilized ultra-clear acrylic
• Illumination: Red or Green LED

Electrical:

• Input Voltage: Dual 120V/277V
• Light Source: Long-life, energy-efficient LEDs

Battery & Backup (EM Models Only):

• Battery Type: 4.8V NiCd (Nickel-Cadmium)
• Backup Duration: Minimum 90 minutes
• Recharge Time: 24 hours
• Charger: Fully automatic solid-state, two-rate charger
• Transfer Switch: Internal solid-state automatic operation

Indicators & Controls:

• Indicator Light: Charge rate / Power ON LED
• Test Feature: Push-to-test switch for code compliance

Installation Features:

• Mounting: Top, end, or back mount
• Mounting Hardware: Aluminum canopy included
• Directional Indicators: Self-adhesive chevron appliques with template
