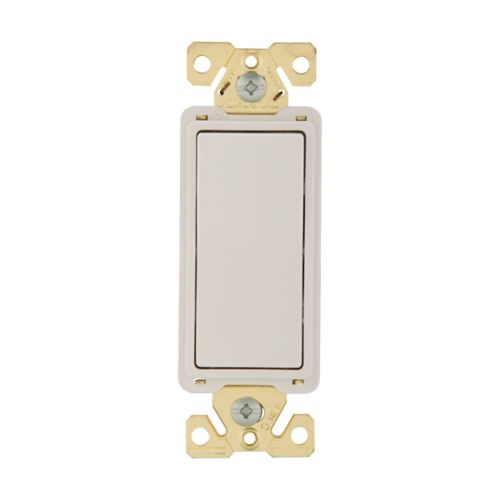

The Eaton 7621W-BOX Commercial Grade Decorator Paddle Switch is a high-performance single-pole switch engineered for demanding commercial and institutional applications. Rated at 20 amps and 120/277 volts, this decorator-style switch supports a wide range of load types including LED, CFL, incandescent, halogen, ELV, MLV, fluorescent, fans, and motor control.
Featuring an antimicrobial paddle actuator, this switch provides an added layer of protection against surface contamination, making it ideal for healthcare, education, and food service environments. The flush mount design delivers a clean, modern aesthetic, while the thermoplastic construction ensures superior durability and impact resistance.
The switch allows for easy installation with back and push-in wiring options, supporting #14–10 AWG copper wire. The maintained closure mechanism keeps the switch in position until toggled, providing reliable, consistent operation in high-traffic settings.
Technical Specifications:
Catalog Number: 7621W-BOX
Product Type: Decorator Paddle Switch
Amperage Rating: 20A
Voltage Rating: 120/277V
Poles: Single-Pole
Phase: Single-Phase
Switch Type: Maintained
Mounting Method: Flush
Wiring Method: Back and Push-In
Closure Type: Maintained
Load Types:
LED
CFL
Incandescent (INC)
Halogen (HAL)
Fluorescent (FLR)
Electronic Low Voltage (ELV)
Magnetic Low Voltage (MLV)
Fan
Motor Control
Allowable Wire Size: #14–10 AWG
Actuator: Antimicrobial Paddle
Material: Thermoplastic
Color: White
Certifications: UL Listed, cULus Listed
Compliances: RoHS Compliant
Dimensions: 4.19" H × 1.18" W × 1.29" D
Weight: 0.2 lb
Engineered for reliability, hygiene, and style, the Eaton 7621W decorator switch is the perfect fit for commercial-grade installations that demand durability and modern functionality.
