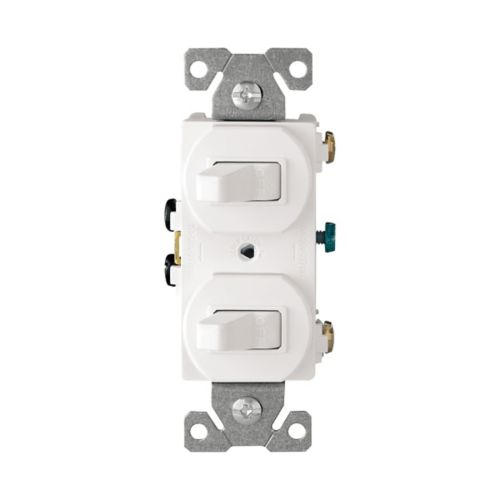

15 Amp Dual-Pole Toggle Switch | 120/277V | White | Back & Side Wired
| SKU(s) | 271W-BOX |
| UPC | 032664750311 |
| Color | White |
| Width | 1.08 in |
| Length | 1.3 in |
| Height | 4.19 in |
| Wire | #14-10 AWG |
 View Spec Sheet
|
The Eaton 271W Commercial Grade Combination Switch offers dual single-pole toggle controls in a single, compact unit—perfect for commercial installations where space-saving and performance are critical. Designed to handle up to 15 amps at 120/277 volts, this combination switch is ideal for managing multiple light loads in offices, schools, retail spaces, and more.
The switch supports back and side wiring with screw terminals, accommodating #14–12 AWG copper wire for installation flexibility. Its thermoplastic body and toggle actuator provide high impact resistance and long-term durability in demanding environments. The brass contacts ensure solid conductivity and long-lasting electrical performance.
Engineered with a maintained closure design, the 271W switch maintains its position until manually toggled. It operates efficiently within a wide temperature range of -20°C to 60°C, making it suitable for various indoor applications.
Technical Specifications:
Catalog Number: 271W-BOX
Product Type: Combination Toggle Switch
Switch Type: Dual Single-Pole (2 switches)
Amperage Rating: 15A
Voltage Rating: 120/277V
Device Grade: Commercial
Application: Commercial Use
Wiring Method: Back and Side Wired
Connector Type: Screw Terminals
Contact Material: Brass
Allowable Wire Size: #14–12 AWG (Copper)
Mounting Type: Flush Mount
Closure Type: Maintained
Construction Material: Thermoplastic
Actuator Style: Toggle
Style Type: Duplex
Number of Poles: (2) Single-Pole
Color: White
Torque Rating: 14 lbf-in
Operating Temperature: -20°C to 60°C
Certifications: cULus Listed, NOM
Compliances: RoHS Compliant
Dimensions: 4.19" H × 1.08" W × 1.3" D
Weight: 0.01 lb
$7.05 /each
