SKU(s) | 1877W-BOX |
UPC | 032664311703 |
Color | White |
Voltage | 125V |
Width | 0.87 in |
Length | 1.3 in |
Height | 4.19 in |
Wire | #14-10 AWG |
Certs |
![]() ![]() |
![]() |

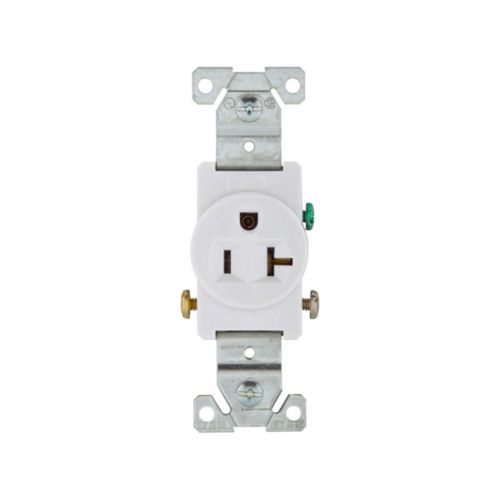

The Eaton 1877W-BOX is a high-performance commercial specification grade single receptacle designed to meet rigorous commercial standards. Engineered for durability, this 20-amp, 125-volt flush-mount receptacle features a sturdy nylon face and PVC body, offering excellent impact resistance and long-term reliability. With a 5-20R NEMA configuration and straight blade design, it supports side wire connections using #14-10 AWG conductors and provides secure screw-type terminals.
Perfect for commercial installations, this receptacle includes auto-grounding functionality, brass contacts for superior conductivity, and is certified to meet cULus, NOM, and Federal Specification Classification 6233 01 standards. The white finish complements standard commercial and industrial environments. Packaged in an ED Box for easy distribution.
Technical Specifications:
Product Name: Eaton commercial specification grade single receptacle
Catalog Number: 1877W-BOX
UPC: 032664311703
Device Type: Single Receptacle
Amperage Rating: 20A
Voltage Rating: 125V
NEMA Configuration: 5-20R
Wiring Method: Side Wire
Number of Wires: 3
Number of Poles: 2 (Two-pole)
Material: Nylon face, PVC bottom
Contact Material: Brass
Mounting Method: Flush
Connection Type: Screw
Torque Rating: 14 lbf-in
Allowable Wire Size: #14-10 AWG
Color: White
Style Type: Standard
Design Type: Straight Blade
Features: Auto-grounding
Certifications: cULus Listed, NOM, Federal Specification Classification 6233 01
Compliance: Commercial Grade
Product Dimensions: 1.31" (Depth) x 4.19" (Height) x 0.87" (Width)
Product Weight: 0.163 lb
Packaging Type: ED Box
Ideal for contractors, electricians, and facilities managers, this Eaton 20A single receptacle delivers robust performance and meets demanding code requirements for commercial applications.
$9.75 /each
