180° PIR Occupancy/Vacancy Motion Sensor Wall Switch with Dual Relay | 120/277V | Enerlites DWOS-JD

180° PIR Occupancy/Vacancy Motion Sensor Wall Switch with Dual Relay | ENERLITES DWOS-JD

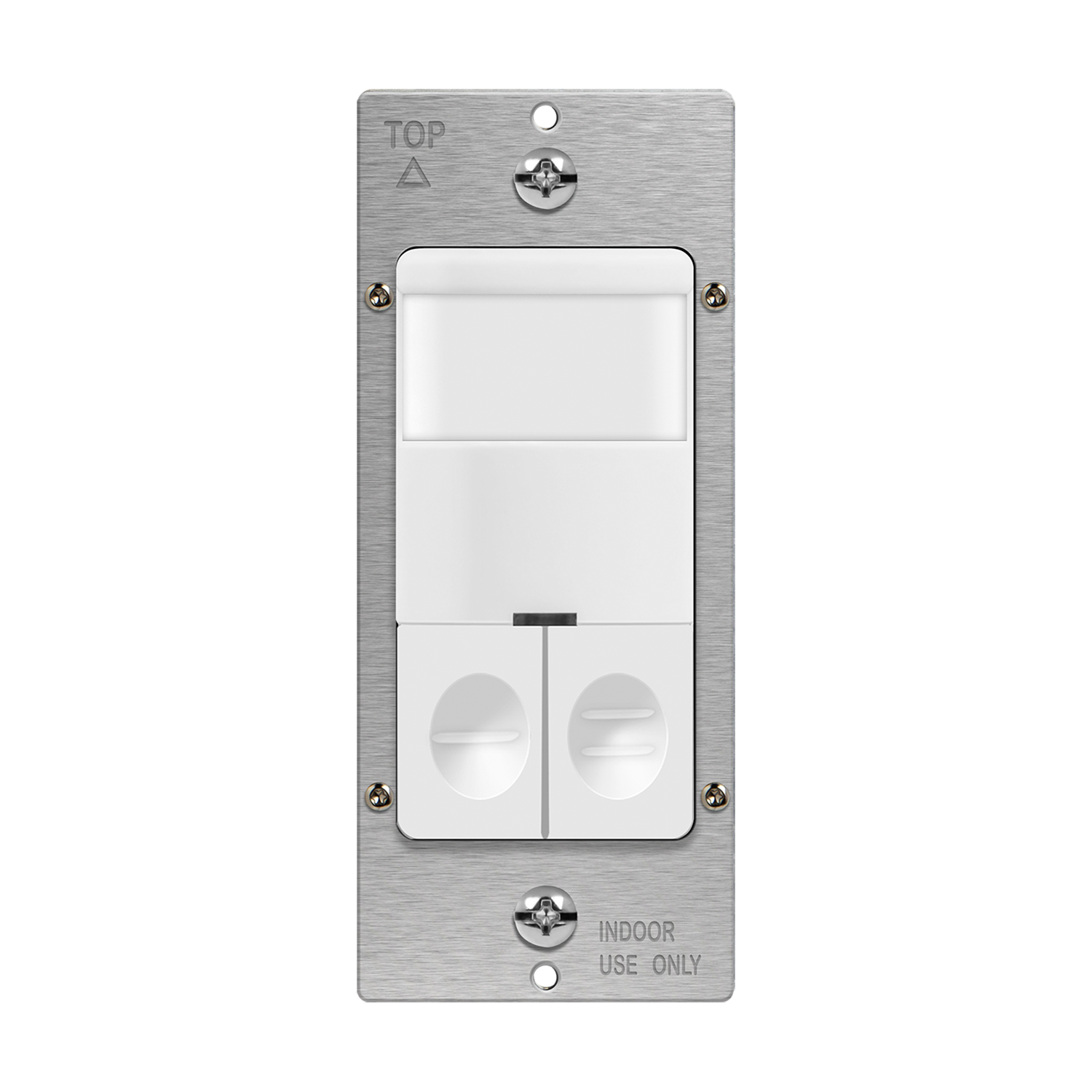

The ENERLITES DWOS-JD is a dual relay 180° PIR occupancy/vacancy motion sensor wall switch designed to operate two separate lighting circuits for enhanced energy management and automation. Utilizing passive infrared (PIR) technology, this switch accurately detects motion and adjusts lighting based on occupancy, vacancy, or bi-level modes, providing flexible, energy-efficient control in commercial and residential settings.

The DWOS-JD features a 180° field of view, covering up to 1200 sq.ft., making it ideal for offices, classrooms, hallways, lobbies, and other large spaces. Its three operating modes allow you to customize lighting control:

• Occupancy Mode: Lights turn ON automatically when motion is detected and turn OFF after the selected time delay.

• Vacancy Mode: Lights must be turned ON manually and turn OFF automatically after no motion is detected.

• Bi-Level Mode: One fixture operates in occupancy mode, while the second fixture operates in vacancy mode, allowing for staged lighting and maximum energy savings.

The DWOS-JD includes a manual ON/OFF push button and an adjustable time delay from 15 seconds to 30 minutes. Its “walk-through mode” enhances energy savings by turning lights off shortly after brief occupancy. A LED indicator confirms motion detection, and zero-crossing function ensures safe switching.

This switch requires a secured ground wire for installation and is compatible with single pole and 3-way applications, controlling incandescent, fluorescent, and LED lighting. The device is UL listed and California Title 24, Part 6 compliant, making it ideal for energy code-compliant installations. ENERLITES backs this switch with a 5-year warranty.

Key Features

• Dual relay for controlling two separate lighting circuits

• Occupancy, vacancy, and bi-level modes for flexible lighting control

• 180° PIR motion detection with up to 1200 sq.ft. coverage

• Adjustable time delay: 15 seconds–30 minutes

• Manual ON/OFF push button

• Walk-through mode for additional energy savings

• Compatible with single pole and 3-way applications

• Secured ground wire required for installation

• Zero-crossing function ensures safe switching

• Controls incandescent, CFL, and LED lighting

• LED motion detection indicator

• California Title 24, Part 6 compliant

• UL listed

• 5-year warranty

Applications

• Offices & conference rooms

• Classrooms & educational facilities

• Hallways, corridors, and lobbies

• Hotel meeting rooms & common areas

• Energy-code-compliant commercial installations
