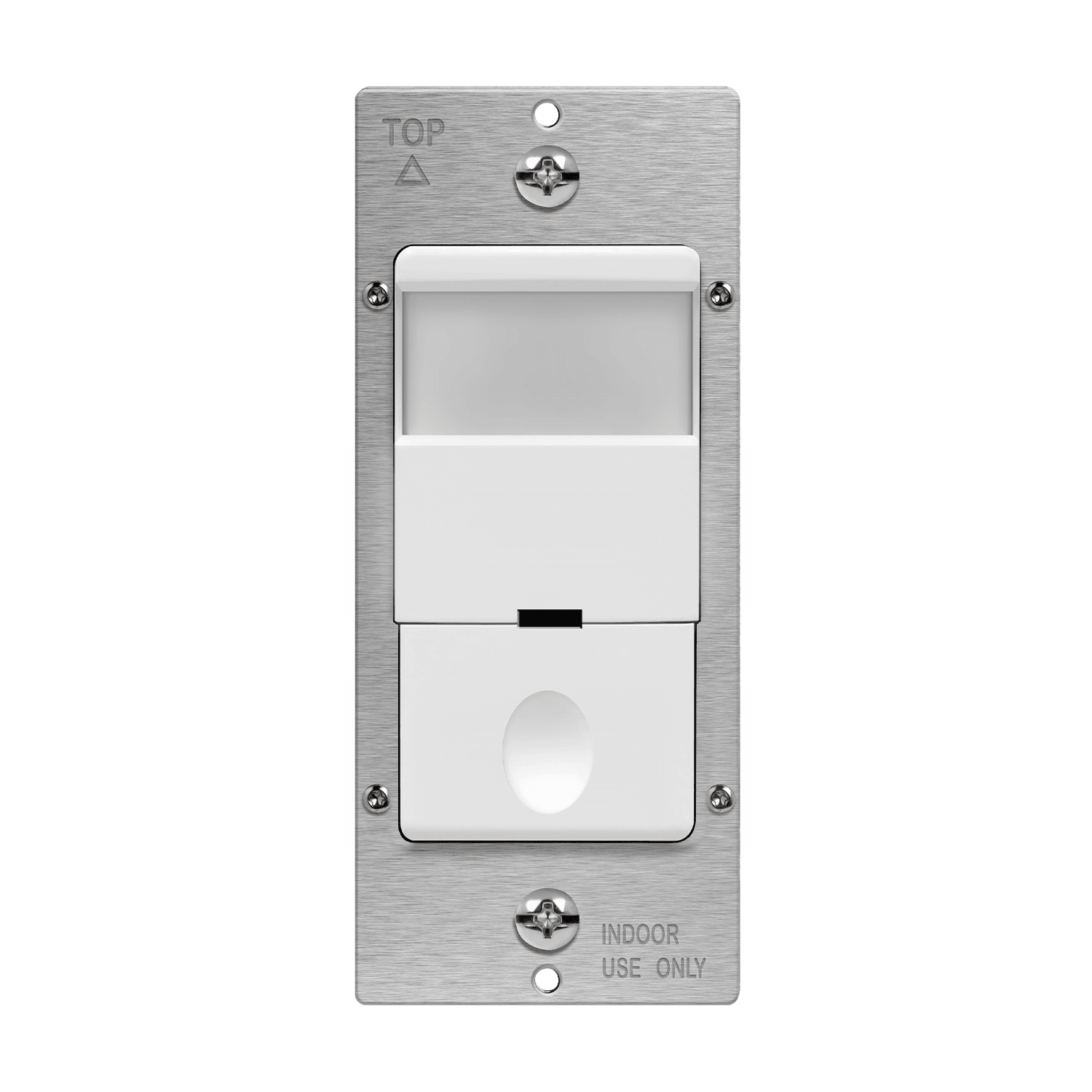

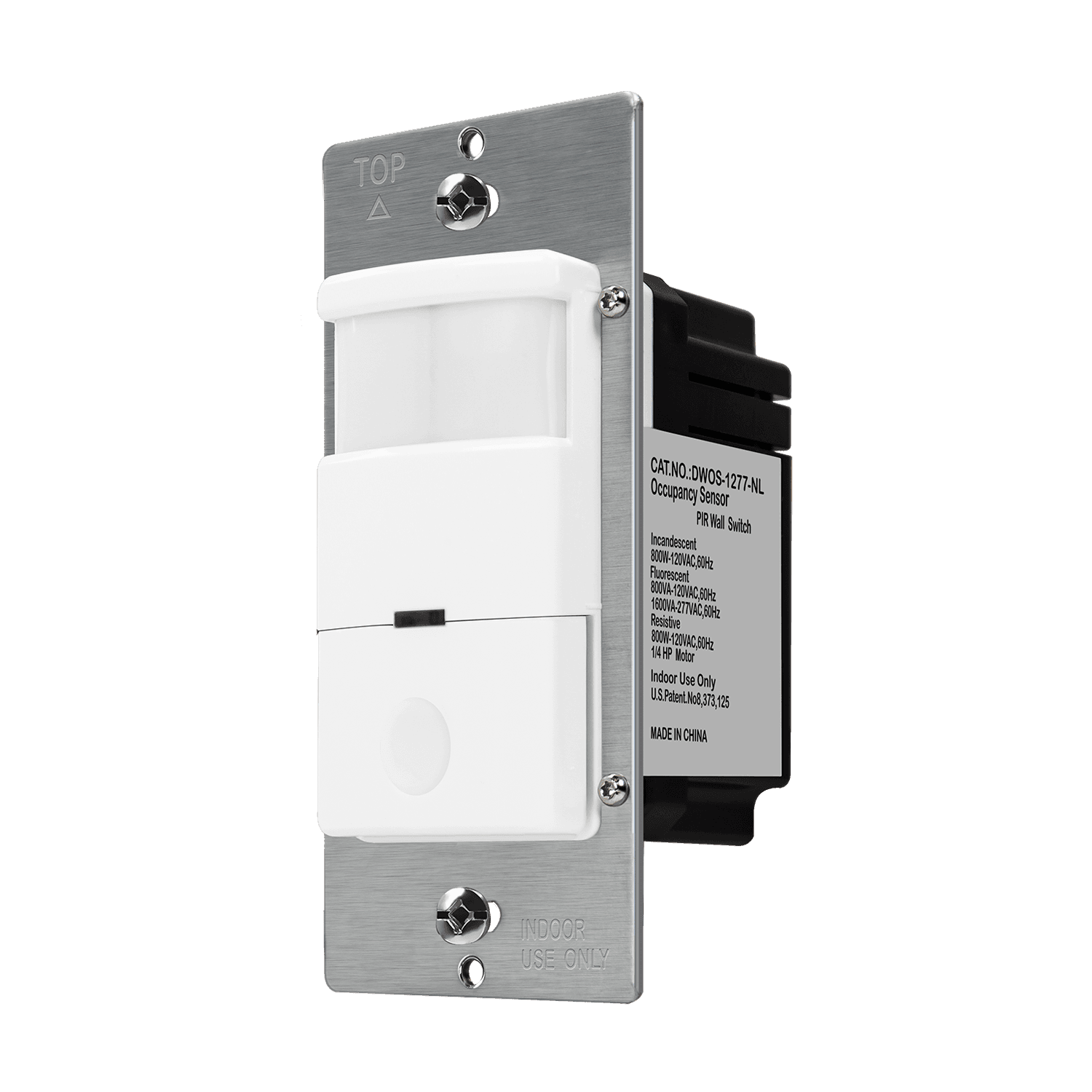

180° PIR Occupancy/Vacancy Motion Sensor Wall Switch with Built-In Night Light | 120/277V | Enerlites DWOS-1277-NL

ENERLITES DWOS-1277-NL | 180° PIR Occupancy/Vacancy Sensor with Night Light

The ENERLITES DWOS-1277-NL is a single pole occupancy/vacancy wall switch with an integrated night light, designed for energy-efficient lighting control. Using advanced passive infrared (PIR) technology, the DWOS-1277-NL detects motion within a 180° field of view, covering up to 1200 sq.ft., and automatically controls lighting based on occupancy or vacancy.

This versatile motion sensor operates in three modes:

• Occupancy Mode: Lights turn ON automatically when motion is detected and turn OFF after the selected time delay.

• Vacancy Mode: Lights must be turned ON manually and turn OFF automatically after no motion is detected.

• Night Light Mode: Provides soft illumination for safe navigation in low-light conditions.

The device includes a manual ON/OFF button and an adjustable time delay from 15 seconds to 30 minutes. The walk-through sensing feature enhances energy savings by turning lights OFF shortly after brief occupancy. Its LED indicator confirms motion detection, and the switch is compatible with incandescent, CFL, and LED lighting.

A neutral wire is required for installation. This sensor is UL listed, California Title 24, Part 6 compliant, and comes with a 5-year warranty, providing reliable performance for residential, commercial, and institutional applications.

Key Features

• 180° PIR motion detection with up to 1200 sq.ft. coverage

• Occupancy, vacancy, and night light modes

• Adjustable time delay: 15 seconds to 30 minutes

• Manual ON/OFF push button

• Walk-through mode for added energy savings

• Single pole installation (neutral wire required)

• Controls incandescent, CFL, and LED lighting

• LED indicator confirms motion detection

• California Title 24, Part 6 compliant

• UL listed

• 5-year warranty

Applications

• Hallways, corridors, and lobbies

• Bedrooms, bathrooms, and kitchens

• Offices and classrooms

• Residential rooms and home offices

• Hotels, dormitories, and healthcare facilities
