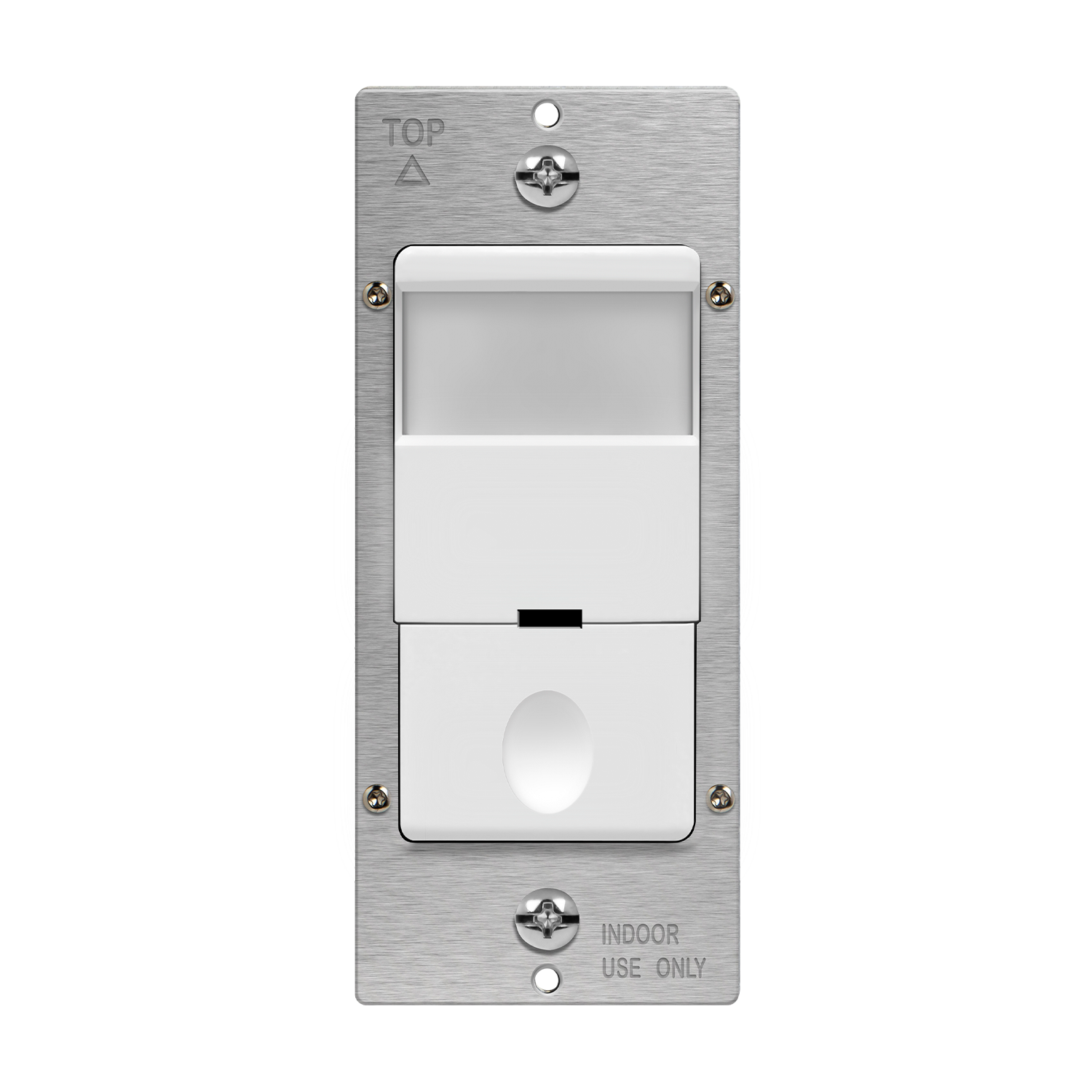

180° 10 Amp Occupancy/Vacancy Motion Sensor Wall Switch | 120/277V | Enerlites DWOS-1277

The ENERLITES DWOS-1277 is a premium single-pole occupancy/vacancy motion sensor wall switch designed to combine energy efficiency, convenience, and safety. Utilizing advanced Passive Infrared (PIR) technology, this sensor detects motion within a 180° field of view, covering up to 1200 sq.ft., making it ideal for residential and commercial spaces.

This versatile motion sensor operates in three modes to accommodate different lighting control needs: occupancy mode automatically turns lights ON when motion is detected and OFF after a pre-set delay, vacancy mode requires manual ON and automatically turns lights OFF, and the walk-through mode provides energy savings by turning lights OFF shortly after brief occupancy. The sensor’s time delay is fully adjustable from 15 seconds to 30 minutes, allowing precise customization for any space.

The DWOS-1277 includes a convenient manual ON/OFF button, and is compatible with incandescent, fluorescent, and LED lighting. A neutral wire is required for installation, ensuring reliable operation. The device complies with California Title 24, Part 6 for energy-efficient lighting control.

Technical Specifications:

• Model Number: DWOS-1277

• Type: 180° PIR Occupancy/Vacancy Motion Sensor Wall Switch

• Pole Configuration: Single Pole (select models compatible with 3-way)

• Coverage Area: Up to 1200 sq.ft. with 180° field of view

• Modes: Occupancy, Vacancy, Walk-through

• Time Delay Adjustment: 15 seconds to 30 minutes

• Wiring Requirements: Neutral wire required; ground wire required

• Compatible Lighting: Incandescent, CFL, LED

• Indicators: LED flashes when motion is detected

• Standards: UL listed, California Title 24, Part 6

• Warranty: 5-year manufacturer warranty

Key Features:

• 180° PIR sensor for wide-area coverage

• Adjustable time delay from 15 seconds to 30 minutes

• Multiple operating modes for occupancy, vacancy, and energy-saving walk-through

• Manual ON/OFF button for user convenience

• Compatible with incandescent, fluorescent, and LED lighting

• Neutral wire required for reliable installation

• LED indicator verifies motion detection

• Compliant with California Title 24 energy standards

• 5-year warranty and UL listed
