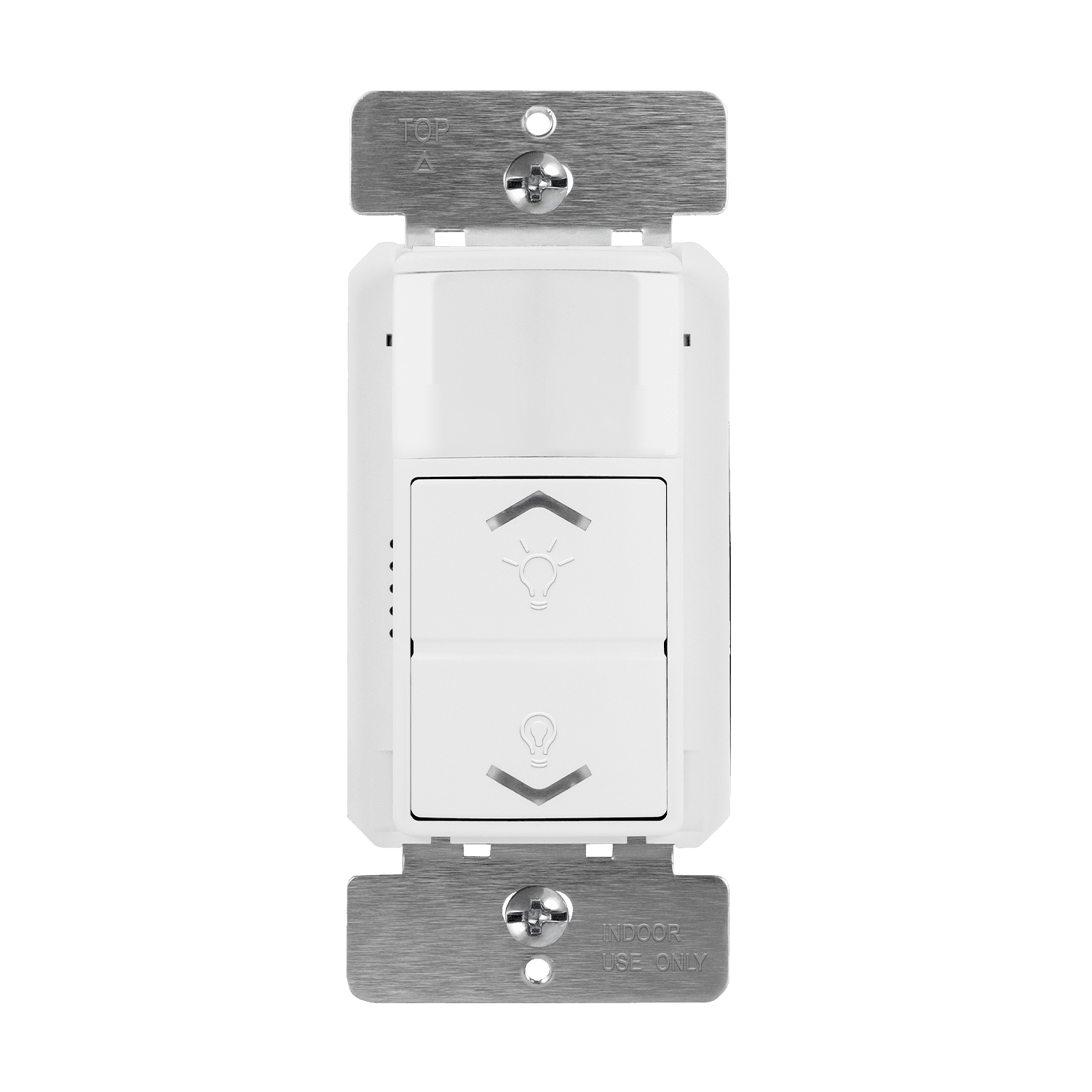

180° PIR Motion Sensor with LED Dimmer Wall Switch | 120V | Enerlites DWODS-120

Combine hands-free automation with customizable atmosphere control using the ENERLITES DWODS-120 180° PIR Motion Sensor Wall Switch with LED Dimmer. Engineered for modern indoor lighting management, this advanced wall switch pairs Passive Infrared (PIR) sensing technology with full-range dimming capabilities. Its wide 180° field of view delivers up to 1,200 sq. ft. of coverage, making it an ideal energy-saving upgrade for private offices, conference rooms, breakrooms, residential bedrooms, and basements.

The DWODS-120 features two user-selectable operating modes: Occupancy (OCC) for automatic-ON/automatic-OFF convenience, and Vacancy (VAC) for manual-ON/automatic-OFF operation (compliant with California Title 24, Part 6 requirements). Intuitive dual push-buttons allow smooth brightness adjustments and manual ON/OFF control at any time. Integrated smart light memory ensures that when lights are turned back ON, they automatically return to the last used dimming level. Fully adjustable controls allow customized tuning for time delay (15 seconds to 30 minutes), ambient light detection, and PIR sensor sensitivity.

Key Features:

• Dual PIR Motion Sensing & Dimming: Integrates 180° Passive Infrared occupancy detection with full-range light dimming in a single wall control.

• OCC / VAC Operating Modes: Select between Occupancy mode (Auto-ON / Auto-OFF) or Vacancy mode (Manual-ON / Auto-OFF for Title 24 compliance).

• Smart Light Level Memory: Automatically recalls and sets lighting to the last selected dimming brightness when turned ON.

• Adjustable Sensor Controls: Easily set custom time delay intervals (15 seconds to 30 minutes), ambient light thresholds, and PIR sensitivity levels.

• Visual LED Motion Indicator: Front-facing LED flashes upon motion detection to confirm active sensing coverage.

• Interchangeable Face Covers: Allows quick aesthetic color matching to fit existing room decor without rewiring.

• Broad Load Compatibility: Works with dimmable LED/CFL drivers (150W max), 0-10V dimming setups, tungsten/incandescent (600W max), and 1/8 HP motor loads.

• Safety & Warranty Backed: UL listed with an industry-leading 5-year warranty.

Technical Specification Table

Packaging & Ordering Specifications

• Model Registry Number: DWODS-120

• Included Components: Motion Sensor Dimmer Switch, Interchangeable Face Covers, Wire Nuts, Mounting Screws, Instruction Manual
