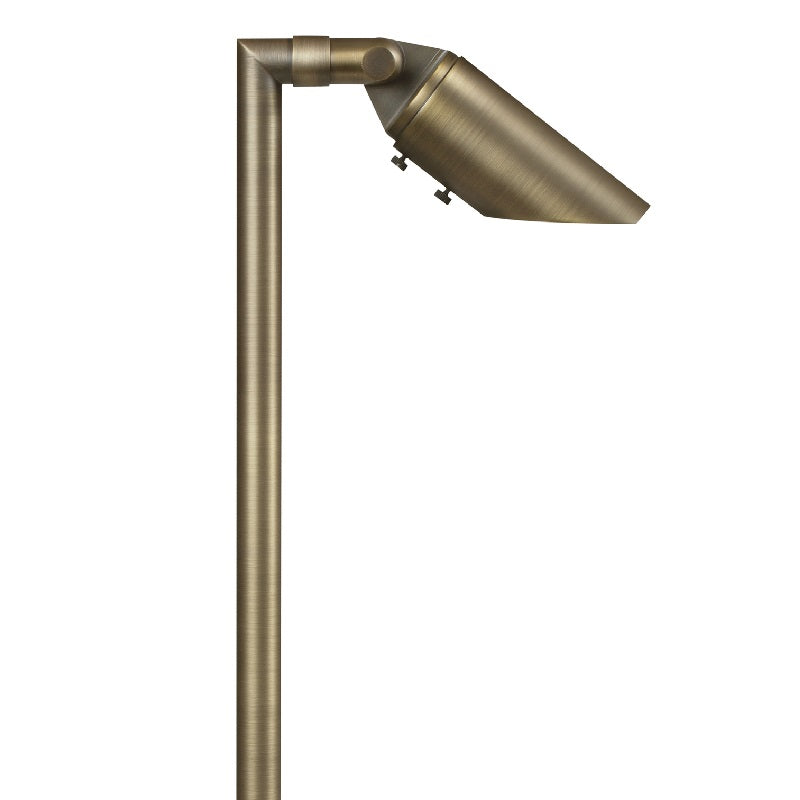

Single Head Path Light – Brass | MR-16 LED Compatible
| SKU(s) | CL-732B-AB-18 |
| Size | 18" | 24" |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" / 24" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Single Head Path Light delivers exceptional performance and timeless design for residential and commercial outdoor lighting applications. Built from solid brass with your choice of Antique Bronze or Gun Metal finishes, this fixture provides both durability and aesthetic appeal in any landscape environment.
Available with an 18″ or 24″ stem, it offers flexibility for various mounting heights, making it perfect for illuminating pathways, gardens, driveways, and architectural features. The adjustable cast brass knuckle with a thumb screw allows precision aiming to highlight specific areas or create ambient lighting effects.
The fixture features a clear, heat-resistant flat glass lens for maximum light transmission and protection. Inside, a top-grade fixed ceramic bi-pin socket with a retention clip ensures secure lamp placement and compatibility with 12V MR-16 lamps (up to 50W halogen or LED equivalents).
Prewired with a 3-foot 18-2 SPT2-W direct burial cord, installation is quick and reliable. The included injection-molded plastic ground spike with a ½” NPT threaded female hub provides sturdy mounting in soil. Designed to operate within a 9V–17V range, it requires a remote 12V transformer (sold separately). This architectural-grade fixture is backed by a limited lifetime warranty on the housing for lasting performance.
Key Features:
Solid brass construction for superior durability
Antique Bronze or Gun Metal finish options
18″ or 24″ stem for flexible mounting height
Clear, heat-resistant flat glass lens
Top-grade fixed ceramic bi-pin socket with retention clip
Compatible with 12V MR-16 lamps (halogen or LED) up to 50W
Adjustable cast brass knuckle for precise aiming
Prewired with 3-ft 18-2 SPT2-W direct burial cord
Standard injection molded ground spike with ½” NPT threaded female hub
Voltage range: 9V–17V; requires remote 12V transformer
Limited lifetime warranty on housing
Ideal Applications:
Garden pathways and walkways
Driveways and entry points
Outdoor living spaces and patios
Landscape accents for plants and trees
Architectural and signage lighting
$72.00 /each
| SKU(s) | CL-342B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-3/8" |
| Length | 3-3/8" |
| Height | 3-3/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$131.45 /each
| SKU(s) | CL-654B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 2.7K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K & 3000K |
| Width | 7-7/8" |
| Length | 7-7/8" |
| Height | 24" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$111.65 /each
| SKU(s) | CL-718B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 2.7K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K & 3000K |
| Width | 5" |
| Length | 5" |
| Height | 18-1/2" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$158.45 /each

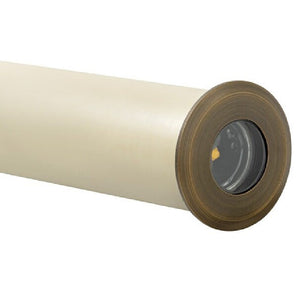

| SKU(s) | CL-219-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 210LM |
| Color Temp | 3000K |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 5-1/2" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
