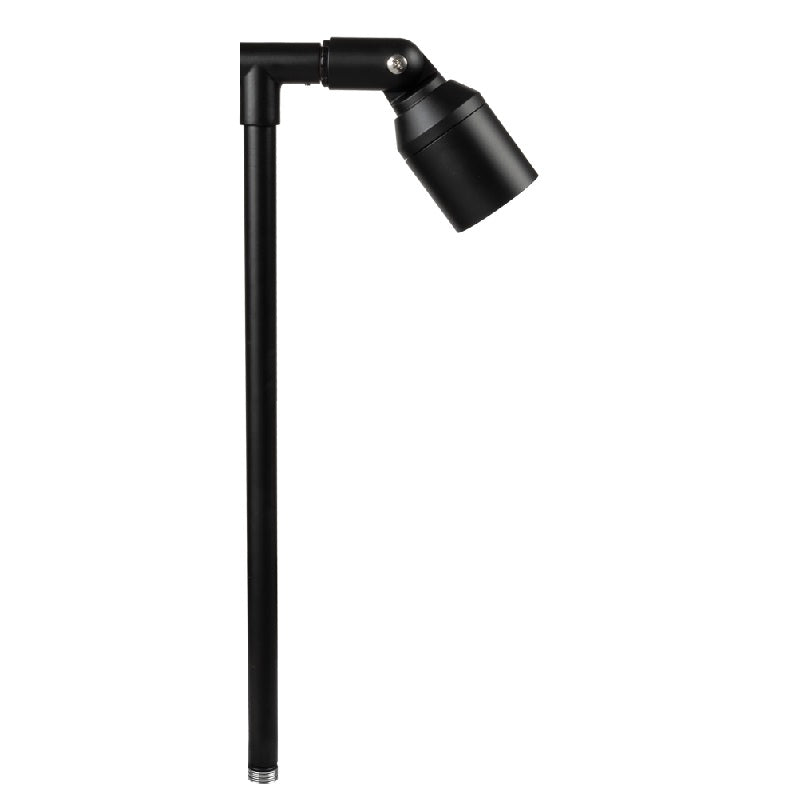

Single-Head Flat Shroud Path Light | Machined Aluminum | MR-16 LED
| SKU(s) | CL-723-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze & Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Single-Head Flat Shroud Machined Aluminum Path Light offers sleek, modern illumination for walkways, landscapes, gardens, and architectural features. Built with architectural-grade machined aluminum, this fixture combines durability, performance, and a contemporary low-profile shroud design.
The flat shroud housing provides a clean look while reducing glare and ensuring precise light direction. Its clear, heat-resistant tempered flat glass lens safeguards the lamp while maintaining maximum brightness.
Equipped with a fixed ceramic bi-pin socket and lamp retention clip, the fixture securely holds 12V MR-16 LED lamps (available in 3.5W, 5W, 6W, or no-lamp option).
Prewired with a 3-ft 18-2 SPT1-W direct burial cord and underground connectors, this path light installs easily and reliably. Its adjustable machined aluminum knuckle with stainless steel Philips screw and ½″ NPT threaded hub allows precise aiming, while the 8½″ slotted ABS ground spike ensures stable mounting.
✔ Available in Black, Bronze, or Silver finishes
✔ 18″ or 24″ stem options for flexible installation
✔ Flat shroud design for clean modern style and glare control
✔ Corrosion-resistant machined aluminum housing
✔ Clear tempered flat glass lens for durability and clarity
✔ MR-16 LED compatible (3.5W, 5W, 6W, or no lamp option)
✔ Prewired with 3-ft burial cord & connectors
✔ Voltage range: 9V–17V | Requires 12V transformer
✔ 10-year warranty on housing against manufacturer defects
$99.00 /each
| SKU(s) | CL-717-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Height | 18" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$532.85 /each
| SKU(s) | CL-755-BT-T-AB-18 |
| Color | Antique Bronze | Gun Metal |
| Size | 18" | 24" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 24" / 18" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$59.45 /each

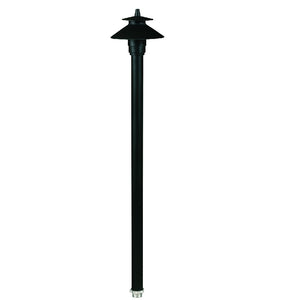

| SKU(s) | CL-660-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Length | 4" |
| Height | 12" / 18" |
| Diameter | 4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$32.45 /each
| SKU(s) | CL-505-BK |
| Color | Black | Bronze | Granite | Rust | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze, Granite, Rust, White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 9.25" |
| Diameter | 2-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
