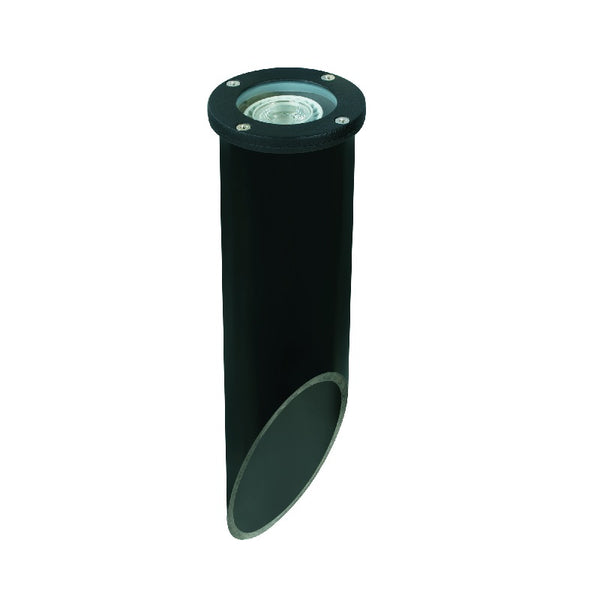

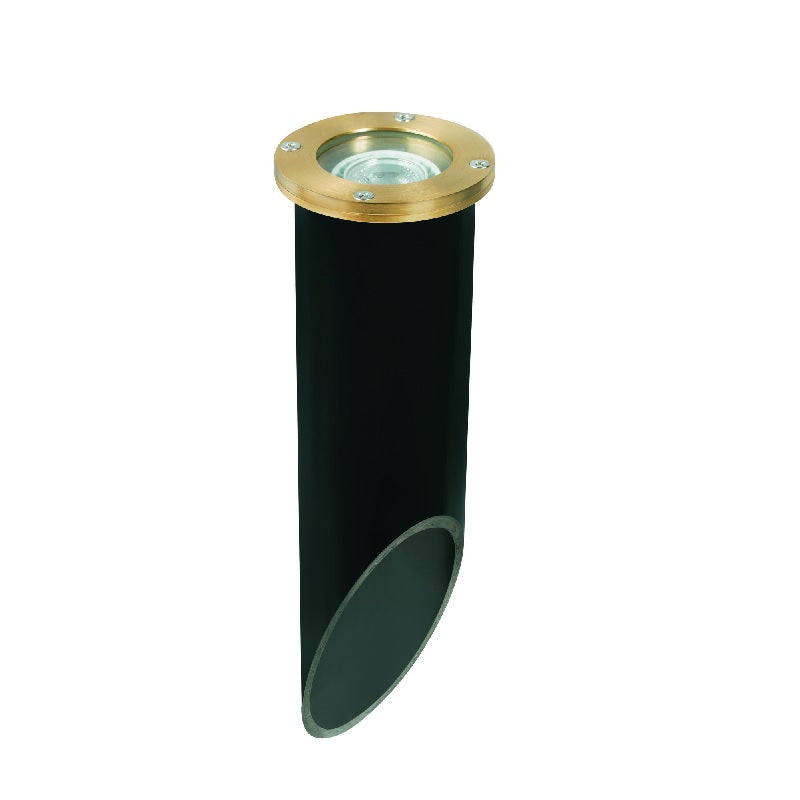

Lensed Well Light with PVC Sleeve | MR-16 In-Ground Fixture
| SKU(s) | CL-301-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 14-1/2" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Lensed Well Light with PVC Sleeve is a versatile and durable in-ground lighting solution, perfect for uplighting trees, columns, architectural details, or landscape features. Available in die-cast aluminum, composite, or natural brass housings, this well light combines strength with aesthetic adaptability.
The housing is secured with tension clips inside a PVC sleeve, ensuring stability in both direct burial or concrete encasement installations. A clear, tempered, heat-resistant glass lens protects the light source while delivering sharp, unobstructed illumination.
Designed with a top-grade ceramic bi-pin socket with retention clip, this fixture supports a 12V MR-16 lamp (up to 50W halogen, or LED equivalent). Prewired with a 3-ft 18-2 SJT-W direct burial cord, it offers simple and secure installation.
✔ Available in Aluminum, Composite, or Natural Brass housings
✔ Finishes: Black or Natural Brass
✔ PVC Sleeve included for in-ground or concrete encasement mounting
✔ Durable clear tempered glass lens for maximum light output
✔ MR-16 lamp compatible (LED or halogen, up to 50W)
✔ Prewired with 3-ft direct burial cord (connectors sold separately)
✔ Voltage range 9V–17V | Requires remote 12V transformer
✔ One-year warranty against manufacturer defects
$99.00 /each
| SKU(s) | CL-717-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Height | 18" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$90.00 /each
| SKU(s) | CL-MINI-BT-BK |
| Color | Black |
| Color | Black |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-3/4" |
| Height | 9.5" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$205.25 /each
| SKU(s) | CL-720-T-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$216.00 /each
| SKU(s) | CL-395-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 50LM - 410LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 8-3/4" |
| Height | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
