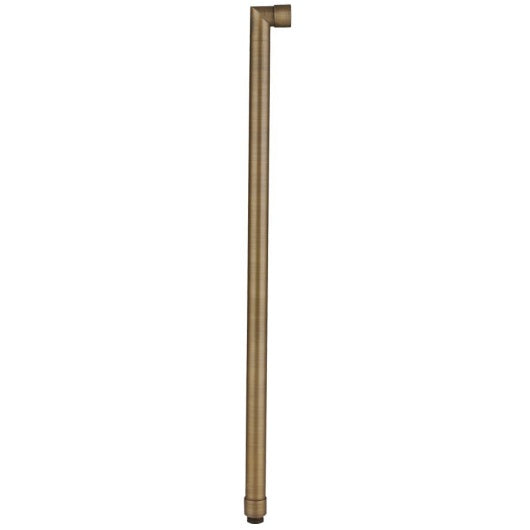

24" Single Head Mounting Post | Corona Lighting CX-678B

Provide an elevated, rigid, and architectural-grade mounting solution for low-voltage landscape lighting fixtures with the Corona Lighting CX-678B 24-inch Brass Single Head Post Series. Designed for ground installation in lawns, flower beds, and architectural landscapes, this heavy-duty mounting post elevates directional spotlights, path lights, and area fixtures 24 inches above ground level to clear tall foliage, shrubs, and groundcover while protecting wire connections from soil moisture.

Constructed from solid, corrosion-resistant cast brass, the CX-678B features a top 1/2" NPT female threaded hub to accept standard 1/2" NPT male threaded fixture stems and knuckles. It is offered in three premium architectural finishes—Antique Bronze (AB), Gun Metal (GM), and Silver Plated (SI)—providing a durable, weather-resistant match for Corona's line of solid brass landscape fixtures.

Key Features:

• Solid Cast Brass Construction: Engineered for ultimate structural integrity, mechanical strength, and total resistance to soil chemicals and moisture.

• 24-Inch Elevation Profile: Elevates fixtures 24 inches above grade for maximum light coverage and clearance over tall landscape vegetation.

• Standard 1/2" NPT Threaded Top Hub: Top-tapped 1/2" NPT female entry accommodates standard 1/2" NPT male threaded fixture hubs, knuckles, and risers.

• Protective Wire Routing: Houses lead wires cleanly within the post shaft to shield connections from physical wear and environmental exposure.

• Architectural Finish Options: Available in Antique Bronze (AB), Gun Metal (GM), and Silver Plated (SI) to blend seamlessly with high-end exterior designs.

Technical Specification Table

Product Logic & Ordering Catalog Matrix
