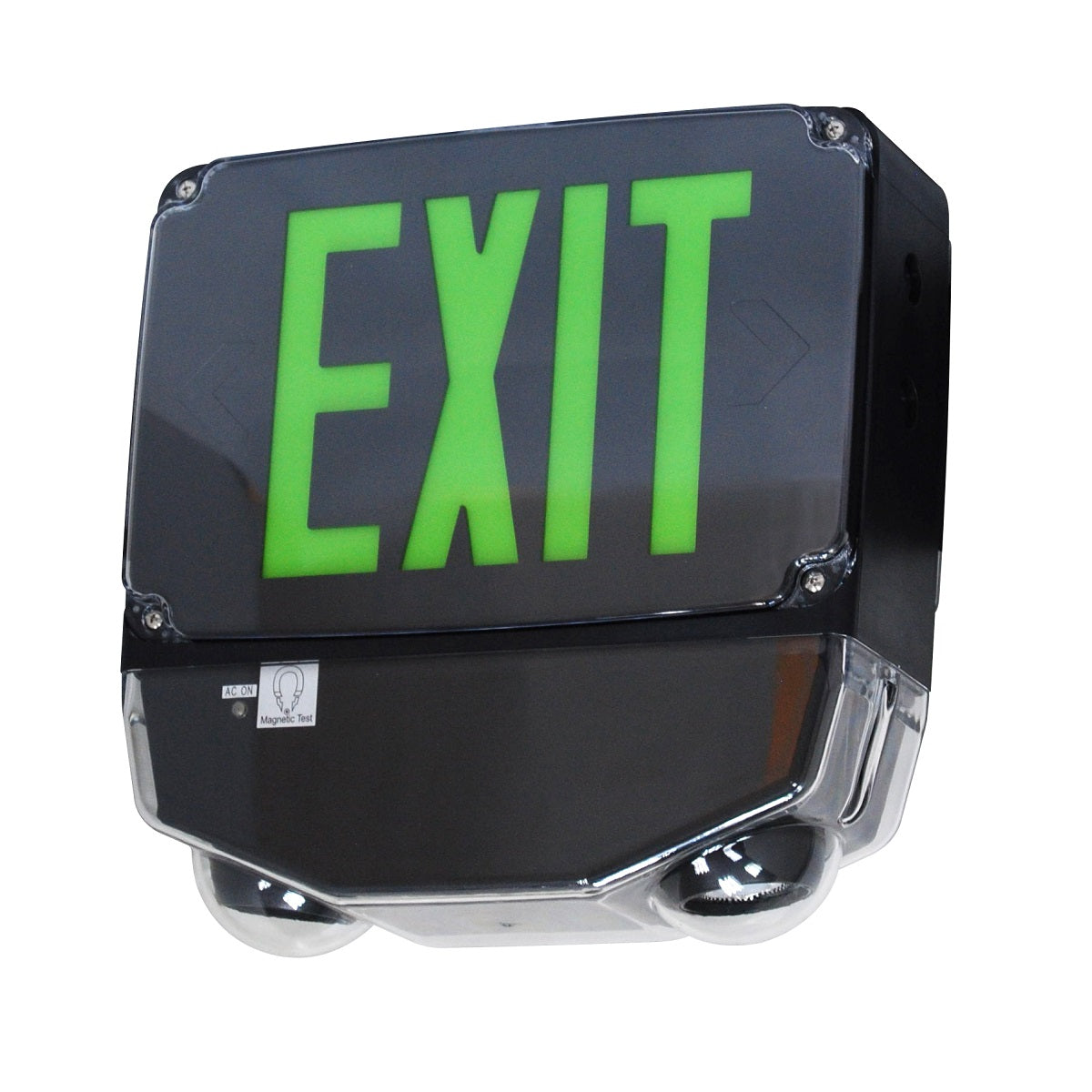

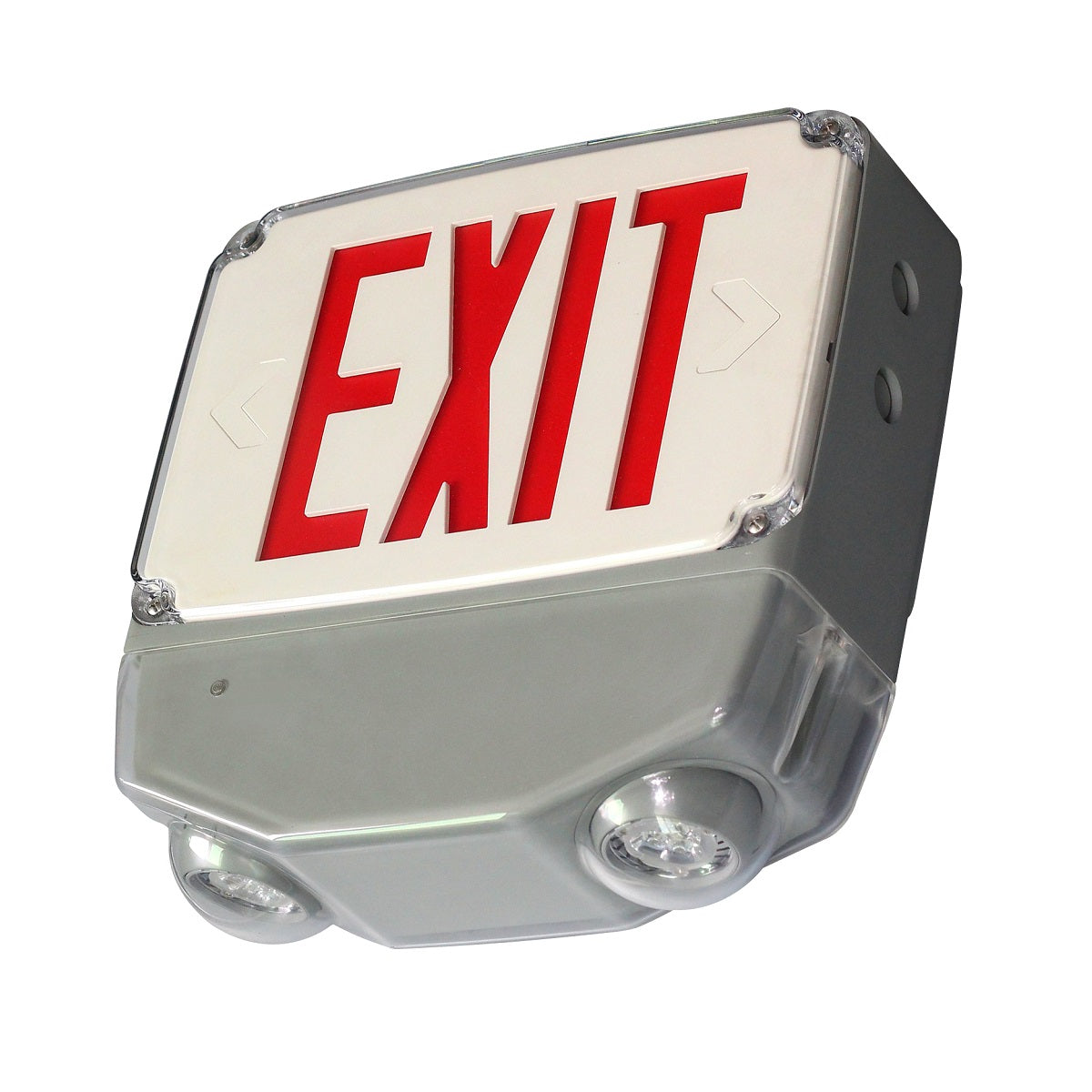

LED Wet Location Exit & Emergency Light Combo | 120/277V | CWLEZXTEU

Ensure reliable path-of-egress safety and high-visibility exit marking in demanding environments with the Wet Location All-LED Exit & Emergency Polycarbonate Combo (CWLEZXTEU). Built to withstand moisture, dust, and non-corrosive harsh conditions, this heavy-duty unit combines a long-life Red or Green LED Exit sign with two high-output 3.6W emergency lamp heads. It is engineered for industrial facilities, parking garages, outdoor commercial perimeters, transit stations, and washdown areas.

Constructed from impact-resistant, UV-stabilized polycarbonate, the housing protects internal components against weather and physical wear. The emergency lighting assembly features two fully adjustable ultra-bright white LED lamp heads (containing three 1.2W LEDs per head), delivering superior center-to-center illumination coverage along egress routes during primary power failures.

Operating on a dual-voltage 120/277V AC input, the system incorporates a 6V long-life, maintenance-free rechargeable Nickel-Cadmium (NiCd) battery and a fully automatic two-rate solid-state charger. An internal transfer switch automatically connects battery power to both the exit sign and emergency heads upon loss of utility power for a minimum of 90 minutes. System status is monitored via a unique bi-color LED indicator light (Green for normal operation, Red to alert occupants to check the battery). Mounting is fast and adaptable using the included die-cast aluminum canopy for top or end mounting, or the universal knockout pattern on the backplate for direct wall installation.

Key Features:

• High-Output Emergency Lighting: Features two fully adjustable LED heads producing 3.6W per head (3x 1.2W LEDs) for extended center-to-center coverage.

• Dual-Color LED Status Indicator: Advanced bi-color LED monitor alerts facility staff to battery health (Green = Normal, Red = Check Battery).

• Rugged Wet Location Construction: Sealed polycarbonate enclosure built to endure wet, dusty, and outdoor commercial environments.

• Selectable Exit Illumination: Configured with long-life, high-efficiency Red or Green LEDs for versatile code compliance.

• Heavy-Duty Mounting Options: Comes complete with a durable die-cast aluminum mounting canopy for end/top installation and universal backplate knockouts for wall mounting.

Technical Specification Table

Product Logic & Ordering Catalog Matrix

Packaging & Factory Components

• Included Components:

  • Polycarbonate wet location housing with sealed optical compartment.

  • Two 3.6W adjustable ultra-bright white LED lamp heads.

  • Die-cast aluminum mounting canopy for top or end mounting.

  • Universal knockout pattern on backplate for direct wall mounting.

  • Integrated 6V rechargeable NiCd battery pack.

  • Bi-color LED test switch and charge indicator assembly.
