| SKU(s) | MPALPRO-40L-LKFS |
| Voltage | 120-277V AC |
| Lumens | Adjustable 28,000 - 40,000 Lm |
| Color Temp | Selectable (3K / 4K / 5K) |
| Efficacy | 132 - 168 Lm / W |
| CRI | > 80 CRI |
| Width | 12" |
| Length | 23.5" |
| Height | 4" |
| LED Life | 162,000 L70 Hours |
| Certs |
|
 View Spec Sheet
|

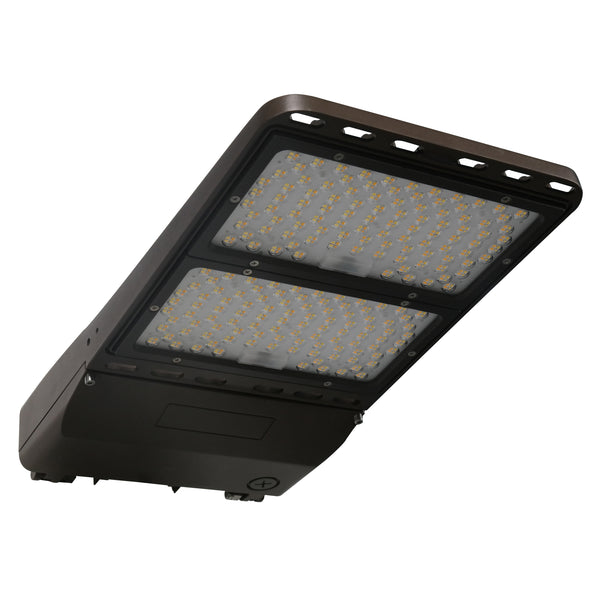

Illuminate large outdoor areas with precision, power, and energy efficiency using our Commercial LED Area Light, engineered for professional-grade performance in the most demanding environments. With adjustable wattage and selectable color temperature, this versatile fixture lets you tailor light output to suit a wide range of commercial and industrial applications—all from a single SKU.
Delivering between 28,000 and 40,000 lumens, this high-output LED area light is ideal for parking lots, roadways, large campuses, warehouses, industrial yards, and commercial exteriors that require maximum visibility, safety, and reliability.
Equipped with field-selectable CCT (3000K, 4000K, or 5000K), it allows for customizable light tone—from warm to daylight white—helping you meet code requirements, match existing lighting, or adapt to customer preferences with ease.
Adjustable Output: Select between 28,000 to 40,000 lumens via built-in wattage controls.
CCT Selectable: Easily choose between 3000K (warm white), 4000K (neutral white), or 5000K (daylight) during installation.
High-Efficacy LEDs: Engineered for energy savings, low heat generation, and consistent performance.
Durable Construction: Die-cast aluminum housing with corrosion-resistant powder coating ensures long life in tough environments.
DLC Premium Certified: Qualifies for utility rebates and meets top-tier performance standards.
IP65 Rated: Fully sealed for outdoor use; dust-tight and water-resistant.
Smart Sensor Ready: Compatible with motion sensors and photocells for automated energy savings (sold separately).
Universal Voltage: Operates on 120-277V with optional 347-480V input available.
Multiple Mounting Options: Slipfitter, yoke, arm, or trunnion mounts available for pole, wall, or custom installations.
Parking Lots & Garages
Distribution Centers & Warehouses
Large Retail Plazas & Shopping Centers
Municipal Streets & Walkways
Educational Campuses & Sports Facilities
Industrial Facilities & Truck Yards
This LED area light simplifies inventory, reduces SKU counts, and allows contractors to make on-the-spot adjustments based on lighting needs. No more over-lighting, under-lighting, or swapping out fixtures after installation—maximize flexibility and reduce project costs with this all-in-one commercial lighting solution.
Built to outperform traditional HID fixtures, this luminaire slashes energy usage and minimizes maintenance cycles, making it the go-to choice for long-term ROI and reliable outdoor illumination.
Trust Electrical Marketplace to deliver high-performance LED area lights that combine power, efficiency, and adaptability in one rugged, professional-grade package.
*Sold separately*
NEMA Photocell Receptacle, 3 pin
▪Field selectable 3000k (warm white), 4000k (neutral white), and 5000k
(cool white) color
▪Long life LEDs provide 162,000 hours of operation with at least 70%
of initial lumen output (L70 ), and 49,000 hours with at least 90% of
initial lumen output (L90)
▪LED chromaticity based on 6 step ANSI quadrangles.
▪LED color maintenance 0.002 chromaticity shift ( Δ u’v’) over the initial 6,000 hours of operation.
▪Provides a range of 28,000 to 40,000 nominal lumens.
▪IES roadway distributions include types III & V.
▪Universal 120 277V (50/60Hz) or 277 480V (50/60Hz) AC voltage with 6 foot incoming power cords.
▪0 10vdc dimming drivers are standard.
▪Watertight, compression type electrical connectors.
▪Power factor > 0.90.
▪Total harmonic distortion < 20%.
▪Color rendering index (R a ) > 80.
▪Optional NEMA photocell receptacle & photocell.
▪Wall mount brackets and tenon adapters available (see page 6).
▪Die cast aluminum housing with dark bronze powder coat finish.
▪Polycarbonate lens.
▪Easy installation in new construction or retrofit.
▪cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
▪DLC premium approved.
▪Rated for 3G vibration.
▪Lenses are rated IK08.
▪Input transient surge protection (6kV).
▪Complies with FCC Part 15, class A.
▪IP65 rated for ingress protection.
▪5 year warranty of all electronics and housing.
$386.67 /each
| SKU(s) | F-ARL/150/50K/S3 |
| UPC | 751338029569 |
| Wattage | 150 Watts |
| Voltage | 120-277V |
| Lumens | 19,000 Lm |
| Color Temp | 5000K |
| Efficacy | 130 Lm / W |
| CRI | 70 CRI |
| Width | 13.5" |
| Length | 22.6" |
| Height | 4.1" |
| LED Life | 50,000 Hours |
|
View Spec Sheet
|
$999.99 /each
| SKU(s) | SP/500W/50K/30D |
| UPC | 751338037335 |
| Wattage | 500W |
| Voltage | 120-277V |
| Lumens | 65,685 Lm |
| Color Temp | 5000K |
| Efficacy | 139 Lm / W |
| CRI | 70 CRI |
| Width | 15.75" |
| Length | 15.61" |
| Height | 16.13" |
| LED Life | 60,000 Hours |
|
View Spec Sheet
|
$47.95 /each
| SKU(s) | G-19833 |
| UPC | 749354198338 |
| Color | White | Black | Bronze | Brushed Nickel | Brushed Brass |
| Color | Selectable |
| Wattage | 5W |
| Voltage | 120V |
| Lumens | 450Lm |
| Color Temp | Selectable |
| Efficacy | 80Lm/Watt |
| Width | 2.55in |
| Length | 2.00in |
| Height | 1.60in |
| LED Life | 50.000 Hours |
| Certs |
|
|
View Spec Sheet
|
$842.00 /each
| SKU(s) | G-99324 |
| UPC | 024431993243 |
| Color | Black | White |
| Color | Black & White |
| Wattage | 72/112W |
| Voltage | 120-277V |
| Lumens | 6400/10400LM |
| Color Temp | Selectable |
| Efficacy | 80Lm/Watt |
| Width | 8.34” X 23.46” |
| Length | 4.56” X 19.70” |
| Height | 5.32” |
| LED Life | 50.000 Hours |
| Certs |
|
|
View Spec Sheet
|
