SKU(s) | MPALPRO-24L-LKFS |
Voltage | 120-277V AC |
Lumens | Adjustable 14,000 - 24,000 Lm |
Color Temp | Selectable (3K / 4K / 5K) |
Efficacy | 129 - 157 Lm / W |
CRI | > 80 CRI |
Width | 12" |
Length | 17" |
Height | 4" |
LED Life | 162,000 L70 Hours |
Certs |
![]() ![]() ![]() ![]() |
![]() |

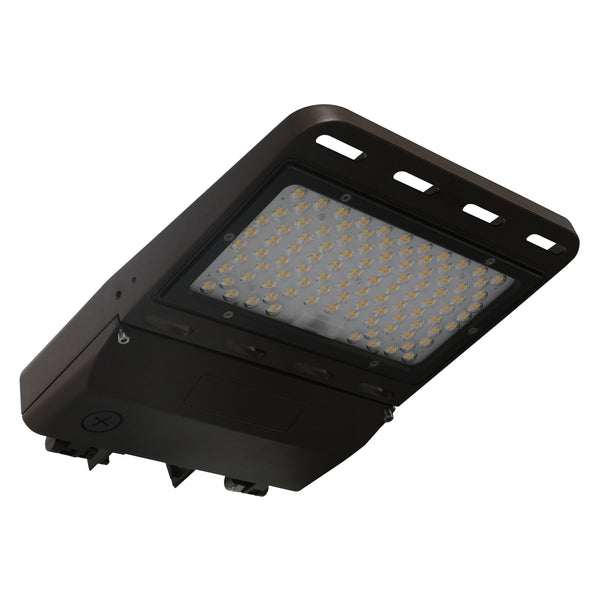

MPALPRO 24L - 14,000/20,000/24,000 Lm
*Sold separately*
*See page 6 of the specification sheet for compatible tenon poles/adapters and call for pricing*
NEMA Photocell Receptacle, 3 pin
▪Field selectable 3000k (warm white), 4000k (neutral white), and 5000k
(cool white) color
▪Long life LEDs provide 162,000 hours of operation with at least 70%
of initial lumen output (L70 ), and 49,000 hours with at least 90% of
initial lumen output (L90)
▪LED chromaticity based on 6 step ANSI quadrangles.
▪LED color maintenance 0.002 chromaticity shift ( Δ u’v’) over the initial 6,000 hours of operation.
▪Provides a range of 14,000 to 24,000 nominal lumens.
▪IES roadway distributions include types III & V.
▪Universal 120 277V (50/60Hz) or 277 480V (50/60Hz) AC voltage with 6 foot incoming power cords.
▪0 10vdc dimming drivers are standard.
▪Watertight, compression type electrical connectors.
▪Power factor > 0.90.
▪Total harmonic distortion < 20%.
▪Color rendering index (R a ) > 80.
▪Optional NEMA photocell receptacle & photocell.
▪Wall mount brackets and tenon adapters available (see page 6).
▪Die cast aluminum housing with dark bronze powder coat finish.
▪Polycarbonate lens.
▪Easy installation in new construction or retrofit.
▪cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
▪DLC premium approved.
▪Rated for 3G vibration.
▪Lenses are rated IK08.
▪Input transient surge protection (6kV).
▪Complies with FCC Part 15, class A.
▪IP65 rated for ingress protection.
▪5 year warranty of all electronics and housing.
$122.98 /each
SKU(s) | LED-FXSECSD30/CCT3 |
Wattage | 40 Watts |
Voltage | 120V |
Lumens | 4,256 Lm |
Color Temp | 3000K/4000K/5000K CCT |
Efficacy | 140 Lm / W |
CRI | 80 CRI |
Width | 7.87" |
Length | 11.26" |
Height | 4.53" |
LED Life | 50,000 Hours |
Certs |
![]() ![]() ![]() ![]() |
![]() |
SKU(s) | SB350 |
Wattage | 320W |
Voltage | 90V - 305V / 249V - 528V |
Lumens | 44,695Lm |
Color Temp | 2200 - 6500K |
Efficacy | 131 Lm / W |
CRI | 70 / 80 / 90 CRI |
Width | 15.75" |
Length | 26" |
Height | 12.6" |
LED Life | 100,000H @ L70 |
Certs |
![]() ![]() ![]() ![]() ![]() |
![]() |
$45.83 /each
SKU(s) | LED-FXSECSD25/40K |
UPC | 844366077906 |
Wattage | 25 Watts |
Voltage | 120-277V |
Lumens | 2,500 Lm |
Color Temp | 4000K |
Efficacy | 100 Lm / W |
CRI | > 80 CRI |
Width | 7.5" |
Length | 12.8" |
Height | 5" |
LED Life | 50,000 Hours |
Certs |
![]() ![]() ![]() ![]() |
![]() |
