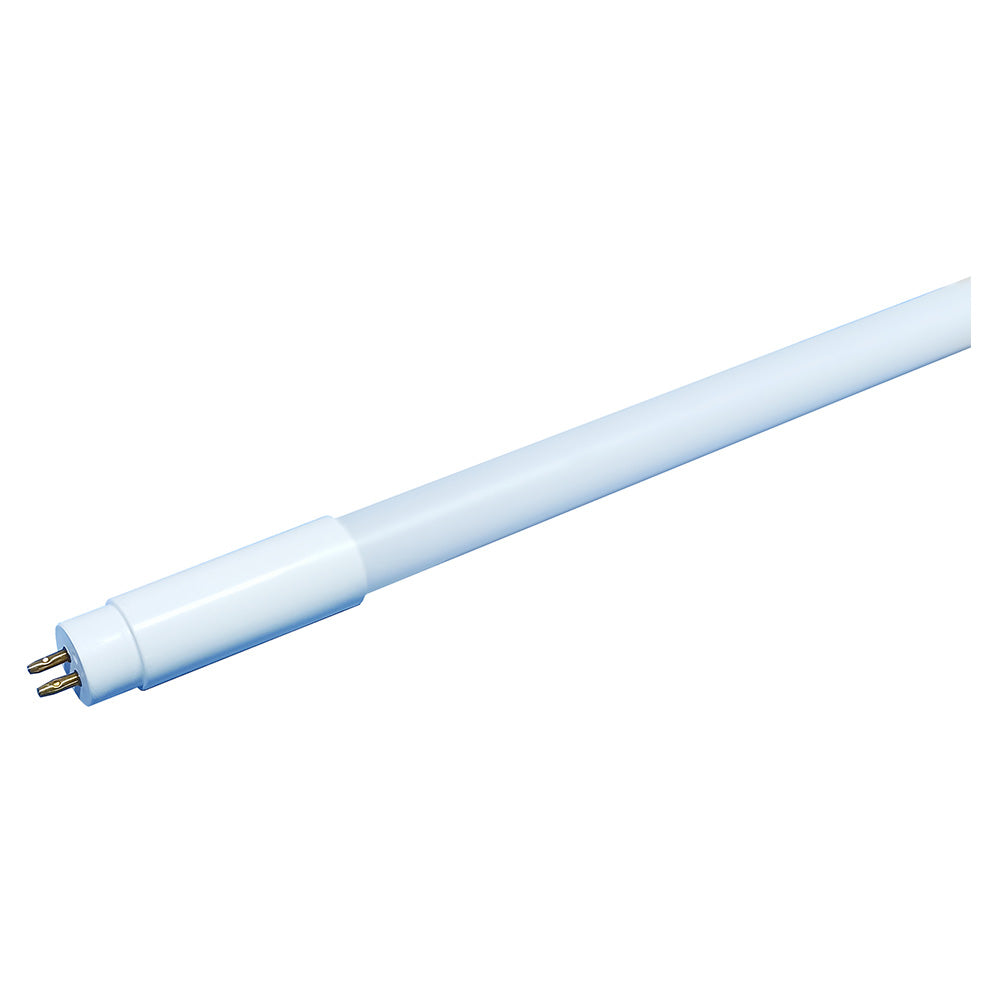

4Ft LED T5 Tube | Ballast Bypass Type B | 3.050 Lm | 120/277V | 5.000K CCT | Commercial LED CLT97-24WT5-50K-B

The F24T5/5000K 4ft LED T5 Tube (Type B Ballast Bypass) – Model CLT97-24WT5-50K-B is a high-efficiency lighting solution designed to replace traditional fluorescent T5 lamps with superior brightness, energy savings, and long-term reliability. Delivering 3050 lumens of bright 5000K daylight illumination, this LED tube is ideal for warehouses, offices, retail spaces, and commercial environments that require high visibility and crisp lighting.

Engineered as a Type B (ballast bypass) LED tube, this lamp operates through direct wire installation, eliminating the need for a ballast. This improves system efficiency, reduces maintenance costs, and removes ballast-related failure points, ensuring long-term performance and reliability.

Operating at 24 watts, this LED tube provides strong illumination while significantly reducing energy consumption compared to fluorescent alternatives. The 200° beam angle ensures wide and uniform light distribution, minimizing shadows and improving overall visibility.

With a standard 45.75-inch T5 form factor, this LED tube fits most T5 fixtures and operates within a 120–277V universal voltage range, making it suitable for a wide range of commercial and industrial applications.

Built for durability, it features a 50,000-hour lifespan and is backed by a 5-year warranty, delivering dependable long-term performance and reduced maintenance costs.

Key Features:

• Bright 5000K daylight white light for enhanced visibility
• High output of 3050 lumens
• Type B (Ballast Bypass): Direct wire installation, no ballast required
• Energy-efficient 24W LED replacement for fluorescent T5 tubes
• Wide 200° beam angle for uniform light distribution
• Standard 45.75-inch T5 size
• Eliminates ballast maintenance and failures
• Non-dimmable for stable performance
• Long lifespan of 50,000 hours
• Wide 120–277V voltage compatibility
• Ideal for warehouses, offices, retail, and commercial applications
• Backed by a 5-year warranty

Technical Specifications

• Product Name: F24T5/5000K LED T5 Tube (Type B Ballast Bypass)
• Model Number: CLT97-24WT5-50K-B
• Lamp Type: LED T5 Tube (4 ft)
• Wattage: 24W
• Luminous Flux: 3050 Lumens
• Color Temperature (CCT): 5000K (Daylight White)
• Beam Angle: 200°
• Voltage: 120–277V
• Operating Mode: Type B (Ballast Bypass / Direct Wire)
• Dimensions: 45.75 inches
• Lifespan: 50,000 Hours
• Warranty: 5 Years
• Packaging: 25 Pack
• UPC: 850018508513
